Y Normally only batteries of the same type and capacity should be used,
i.e. the same as those installed by the manufacturer.
" Electrically isolate the battery from the electroblock. For this, switch off
the battery separation switch on the EBL 242 electroblock (refer also to
Section 3.4).
" Replace the battery.
" After changing the battery, recheck which type of battery has been inser-
ted.
Y DANGER!
Incorrect setting of the battery selector switch.
Risk of explosion due to build up of explosive gases:
F Move the battery selector switch to the correct position.
" Disconnect the electroblock from the mains before adjusting the battery
selector switch.
1

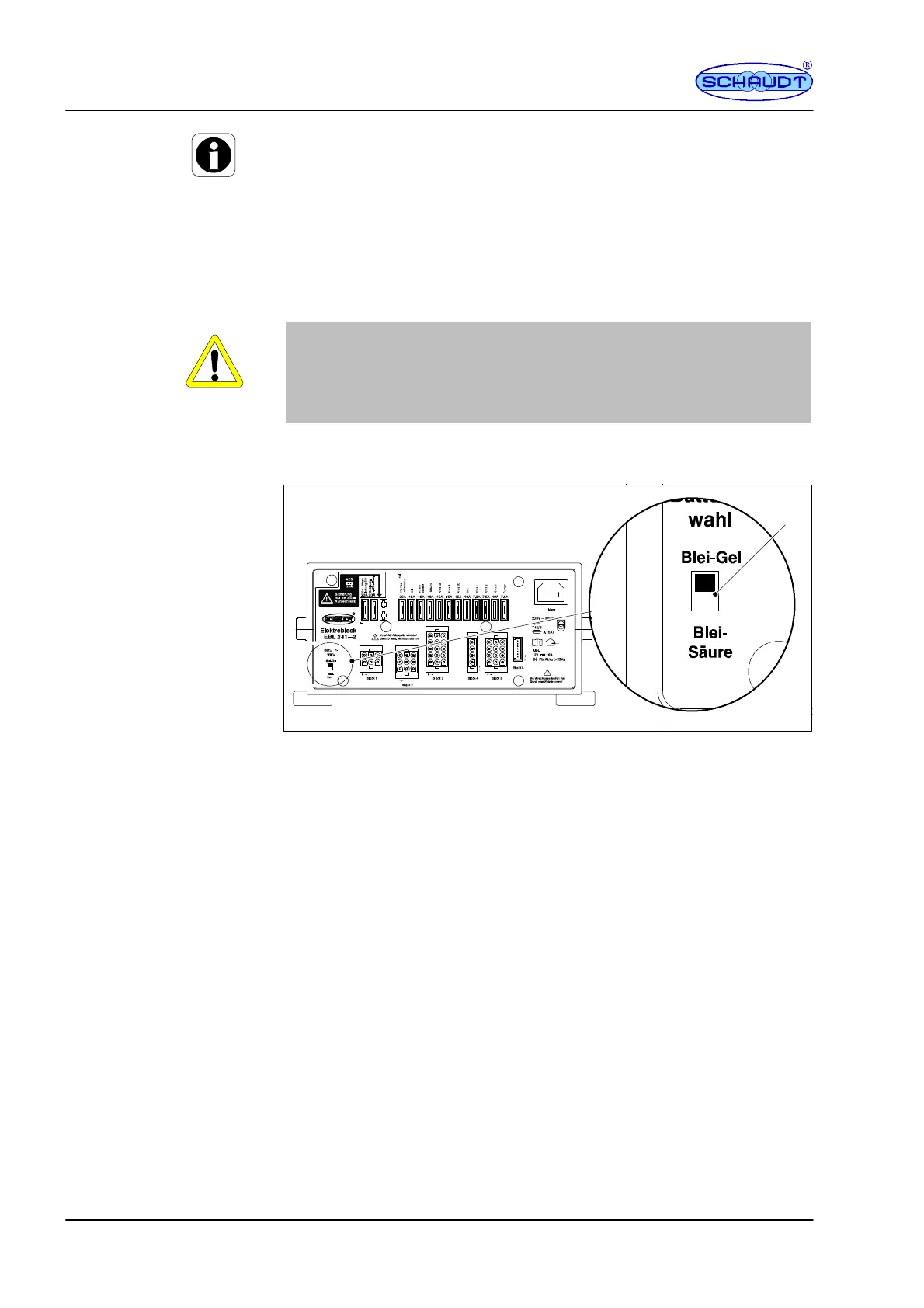

Fig. 1 Battery selector switch
"
Move the battery selector switch (Fig. 1, Pos. 1) to the correct position
using a thin object (e.g. a ballpoint pen):
F Lead-gel battery: Move the battery selector switch to ”Gel”.
F Lead-acid battery: Move the battery selector switch to ”Lead-acid”.
" Start up the system as described in Section 3.1.
3.3 Faults
A flat battery or defective fuse is the cause of most faults in the power sup-
ply system.
If the battery is discharged, consumers can always be powered by starting
the engine of the base vehicle.
Please contact our customer service address if you cannot rectify the fault
using the following table.
If this is not possible, e.g. if you are abroad, you can have the electroblock
repaired at a specialist workshop. In this case, you must ensure that the
warranty is not invalidated by incorrect repairs being carried out. Schaudt
GmbH will not accept any liability for damage resulting from such repairs.
Changing the battery
Starting up
the system
Flat vehicle fuses
Discharged battery --
start motor
