3.4 Closing down the system
A battery is isolated by disconnecting the battery terminals.
Y ATTENTION!
Total discharge.
Damage to the leisure area battery:
F Fully charge the living area battery before and after closing down the
system. (Connect vehicle to the mains with an 80Ah battery at least
12 hours and with a 160Ah battery at least 24 hours).
Disconnect the living area battery from the 12V power supply if the motor-
home is not used for a longer period (during the winter for example).
" Fully charge the living area battery before closing down the system.
" Switch off from the main switch on the LT ... control panel.
" Disconnect the terminals of the leisure area battery.
The living area battery is then protected against total discharge. This only
applies if the battery is intact. Follow the battery manufacturer’s instructions.
4 Application and functions in detail
The EBL 241-2 electroblock is the central power supply unit for all 12V con-
sumers in the vehicle’ s electrical system. It is usually located in a cupboard
or storage area and is accessible from the front in order to change fuses.
EBL 241-2
LT ...
+--
+--
Control and
display panel
Electroblock
230V AC
12V consumers
Leisure battery
Starter battery
Lighting
Pump
Multimedia
etc.
Side
marking
lights

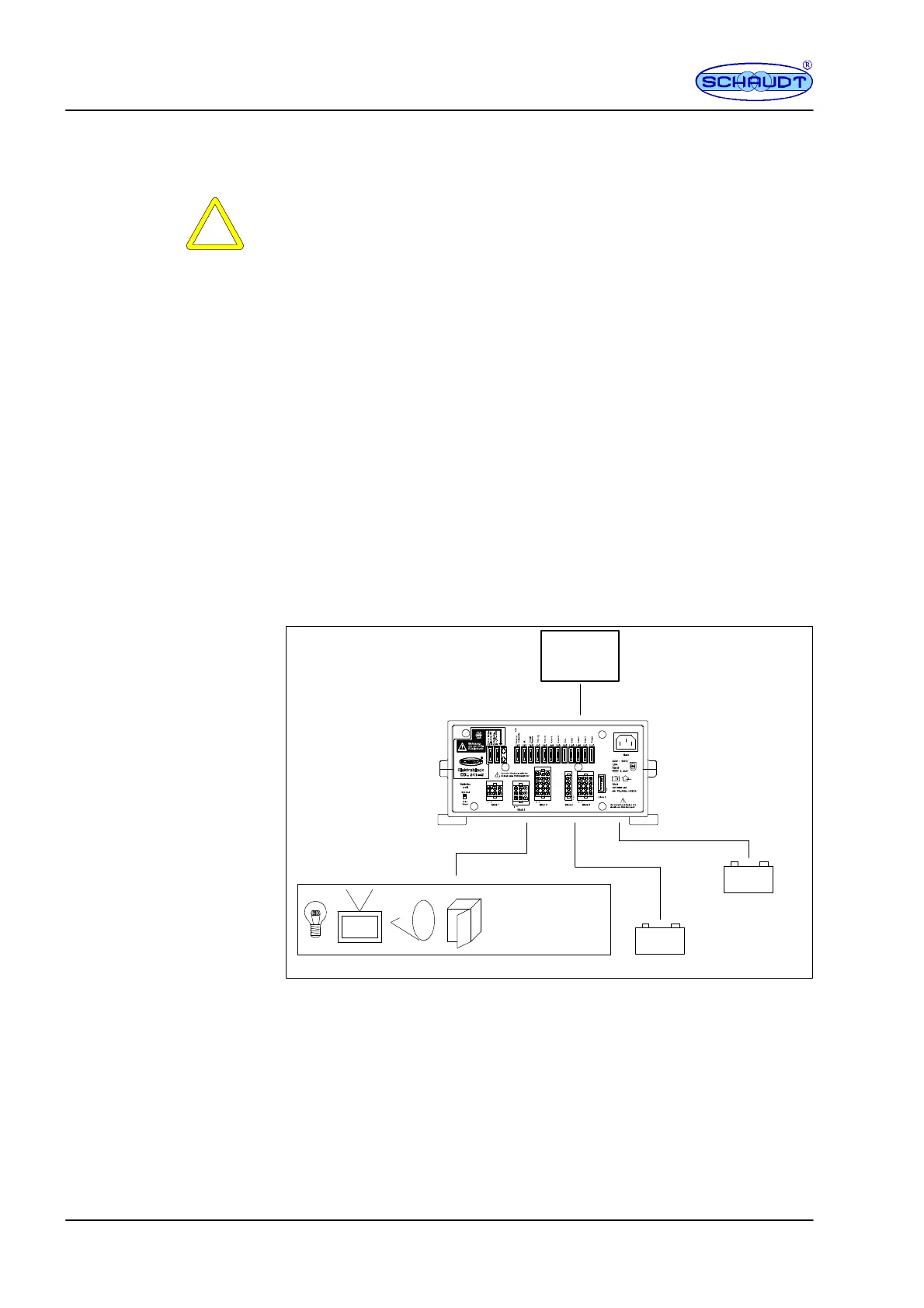

Fig. 2 On-board power supply system
The EBL 241-2 electroblock contains:
F a charge module for charging all batteries connected
F the complete 12V distribution system
F fuses for the 12V circuits
An IT ... or LT ... control and switch panel must be connected for operation.
These devices control the electrical functions in the vehicle’s living area, inc-
luding accessories.
Flat vehicle fuses protect the various circuits. The D+ output is an exception.
Closing down
Modules
System devices
