Schaudt LT 320 - LRM 1218 with Schaudt EBLs (3-Pin Connector & Solar Power Display)

Installation Instructions Solar systems (controller and panel)
13
Date: 20.09.2018
9990314 MA / EN
6.4 LRM 1218 and Schaudt EBLs with 3-pin solar connector,
and panels with solar po wer d isp lay
LRM 1218
Solar module(s)
3
2
1
Red
Brown
Brown
Black
Red
Black
White
Brown
Panel
White
Brown
--
+
--
+
Part no. 9340142
Part no. 9340200
Panel

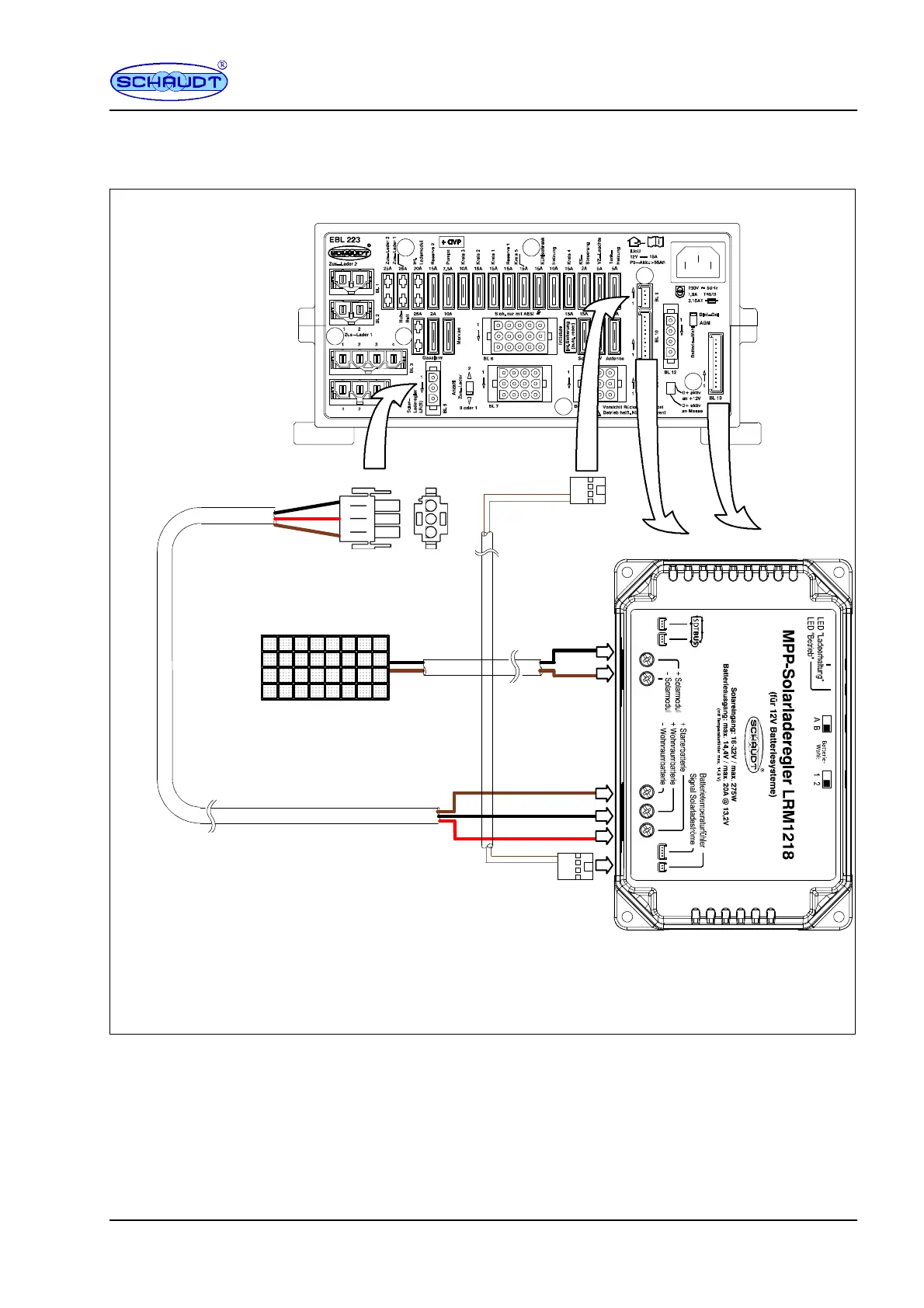

Fig. 8 LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 223)
