Schaudt LT 320 - LR 1218 with Schaudt EBLs (3-Pin Connector & Solar Power Display)

16 pages

To Next Page

To Previous Page

Installation Instructions Solar systems (controller and panel)

Date: 20.09.2018

9990314 MA / EN

5.4 LR 1218 and Schaudt EBLs with 3-pin solar connector, and

panels with solar power display

LR 1218

White

Brown

Solar module(s)

--+

Red

Brown

Black

Red

Black

White

Brown

Panel

Part no. 9340142

Part no. 9340143

Panel

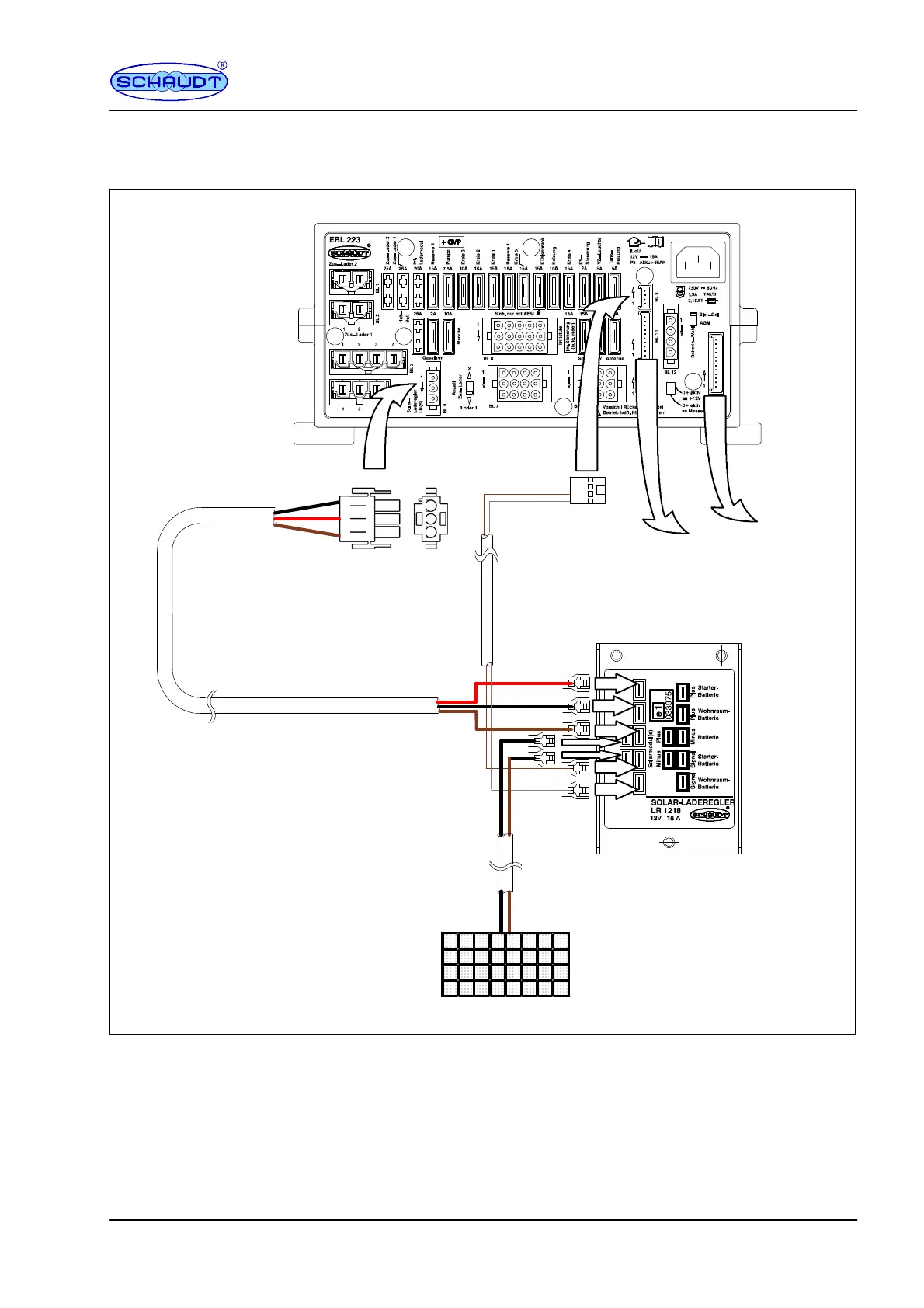

Fig. 4 LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 223)

Solar module(s) and their connector cables are not included in the delivery.
