Instruction Manual for LT 52 Control Panel
2
Date: 01.03.2018 8310027 BA / EN
1 Purpose
The LT 52 control panel is the central control and display device for the 12V supply and
charging system within the vehicle.
These operating instructions contain important information on the safe operation of devices
from Schaudt and should be kept in the vehicle at all times.
EBL .../
+--
+--
LT 52 control panel
Electroblock
230V AC
12V consumers
Leisure battery
Starter battery
Lighting
Pump
Heater
etc.
LR ...
Solar regulator
(accessory)
LAS ...
Additional charger
(accessory)
Solar cell
(accessory)
Power supply
CSV...
W ater tank
W aste water
tank

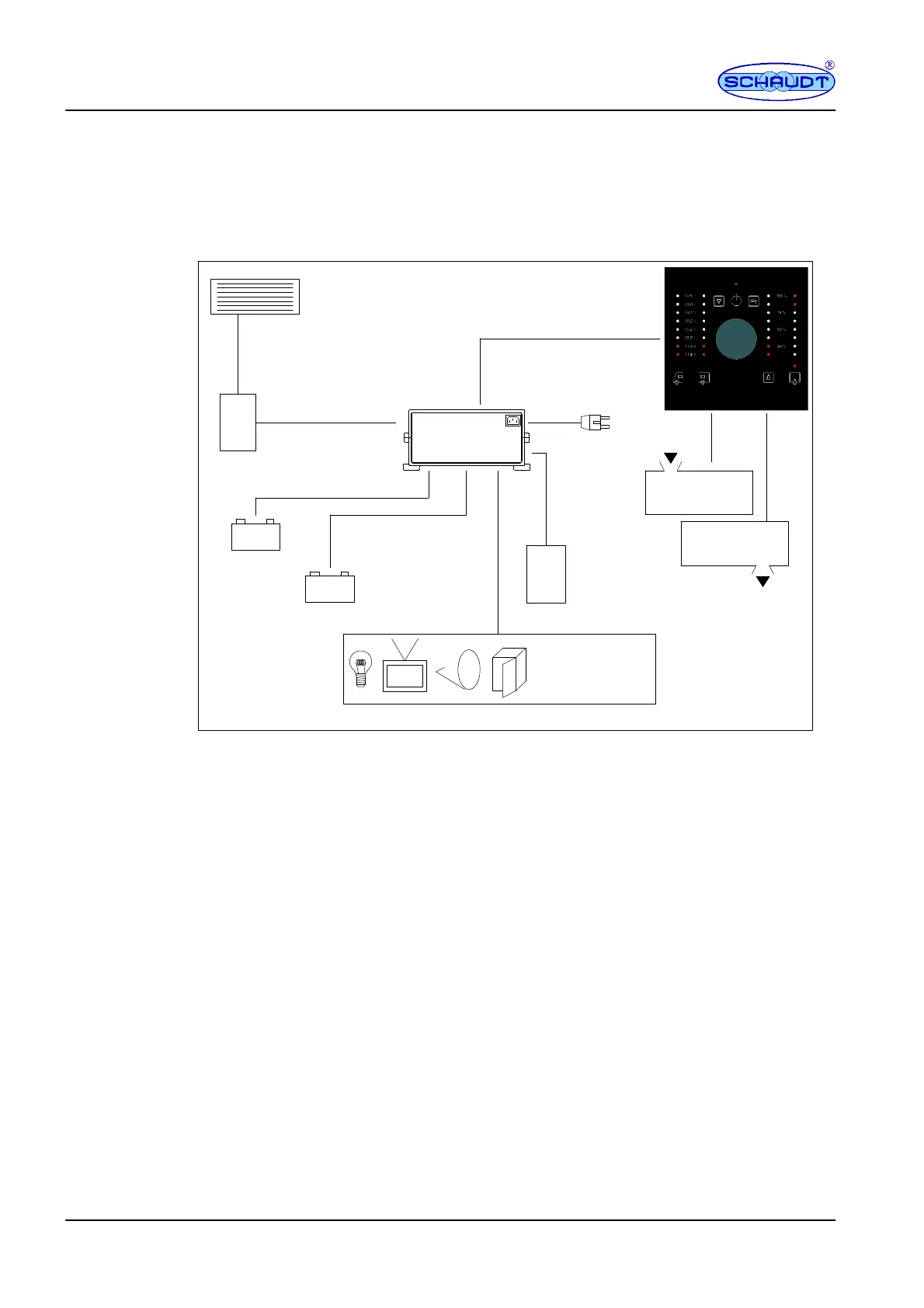

Fig. 1 12V on-board bus charging and supply system
F LT 52 control panel
F EBL ... electroblock (for motorhomes) or CSV... power supply (for caravans)
F Sensors and/or probe for water tank
F Sensors or probe for waste water tank
F Other potential accessory devices
System
devices
