Schaudt LT 52 - Layout; Operation; Switching on and off the 12 V Supply for the Leisure Area

Instruction Manual for LT 52 Control Panel
3
Date: 01.03.2018
8310027 BA / EN
2 Layout
5
2
3
7
6
1
4
9
10
11
8
12

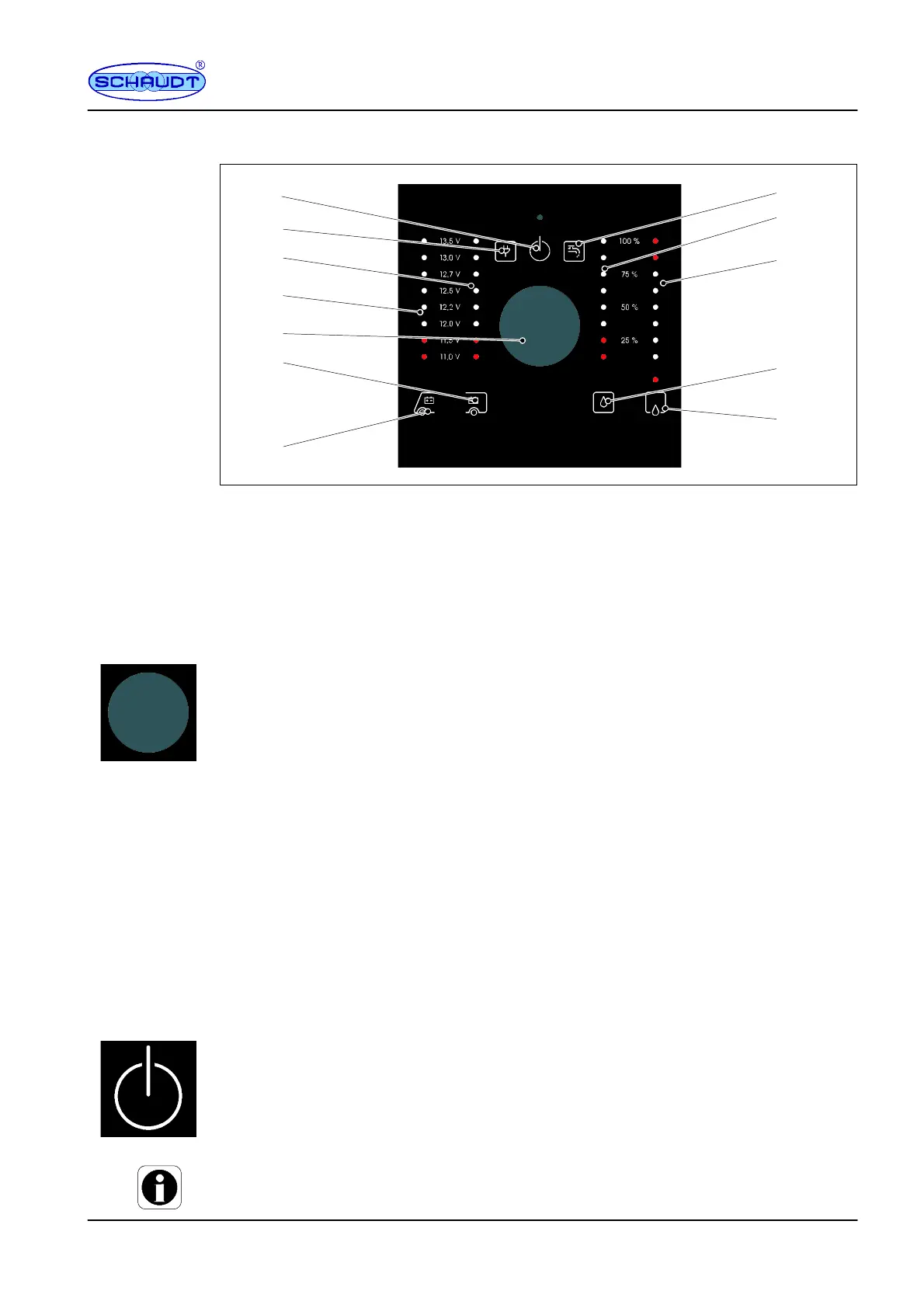

Fig. 2 LT 52 layout
1 ”12V ON” symbol 7 ”Starter battery” symbol
2 ”Mains indicator” symbol 8 ”Water pump” symbol
3 ”Leisure battery voltage” LED scale 9 ”Water tank fill level” LED scale
4 ”V ehicle battery voltage” LED scale 10 ”Waste water tank fill level” LED scale
5 Rotary/press-in encoder 11 ”Water tank” symbol
6 ”Leisure battery” symbol 12 ”Waste water tank” symbol
3 Operation
The only control on the LT 52 is a rotary/press-in encoder. Rotate and press it in to select
displays and run switch functions.
3.1 Switching on and off the 12V supply for the leisure area
The 12V leisure area supply is connected via the encoder.
Exceptions here are consumers requiring constant power when the motorhome or caravan is
being used.
Just which consumers these are depends on the combination used (LT 52/power supply) --
also refer to the operating manual for the EBL ... and CSV ...):
F LT 52 with CSV 410-2 (caravans)
F LT 52 with EBL 208 (motorhome)
F LT 52 with EBL 226 (motorhome)
 Briefly press the encoder .
F The ”12V ON” symbol illuminates -- the 12V supply to the leisure area is on.
If the LT 52 control panel does not respond, either shutdown is active (for EBL 208
and CSV 410-2; see section 3.4 for how to cancel it) or the battery is discharged (fully
charge the battery if required).
If the ”12V ON” and ”Leisure battery” symbols flash 3 times, shutdown is active (see
section 3.4 for how to cancel it).
F The ”12V ON” symbol goes out -- the 12V supply to the leisure area is switched off.
Switching off is only possible when the ”12V ON” symbol is on.
Switching on
and off
