3.2 12V supply to the different consumers -- switching on and off
Power to the following consumers can be switched on and off individually:
F W ater pump
F Tank heater
The 12V supply for the leisure area must be switched on for these functions (see section
3.1).
The LT 52 switches to idle mode about 10 seconds after an operation. Lighting up of the re-
levant symbol or LED then indicates the switch states.

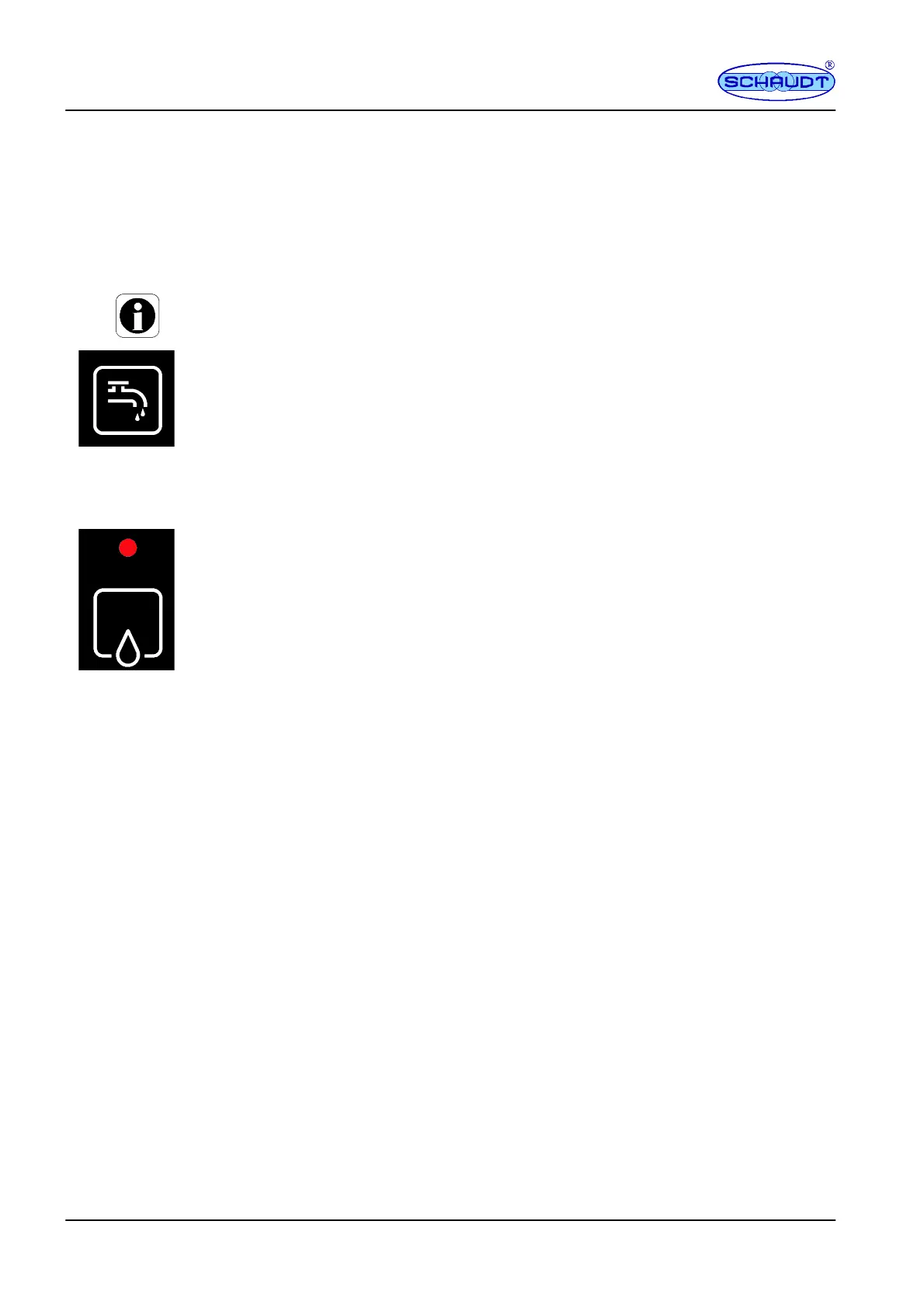

Water pump
T urn the encoder until the fill level of the water tank is displayed on the LED scale.
F The current switch state is shown by the ”Water tap” symbol.
Press the encoder.
F The switch state changes (symbol lights or goes out): The 12V supply to the water
pump is switched on/off.
Tank heater , waste water tank
T urn the encoder until the fill level of the waste water tank is displayed on the LED scale.
F The red LED above the ”Waste water tank” symbol shows the current switch state.
Press the encoder.
F The switch state changes (LED lights or goes out):
The tank heater is switched on or off.
When the 12V supply to the leisure area is switched off, the power supply for the water
pump is also switched off. The switch state of the ”Waste water tank heater” remains un-
changed (the red LED goes out when the 12V supply is disabled but the tank heater may
remain on).
