Instruction Manual MP 22-T Display Panel
7
Date: 28.05.2014
831.416 BA / EN
Take the measurement several hours after the last charging. In the mean-
time, no significant load should have been placed on the battery, which
means no current should have been drawn from it. There is a risk of total
discharge if the off-load voltage of the battery is 12.0V or less.
The following table shows the correct interpretation of the off-load voltage
displayed. The values specified are guidelines for gel batteries.
Values for off-load voltage Charge state of the battery
12V or less discharge or total discharge
12.2V approx. 25%
12.3V approx. 50%
more than 12.8V full
3.3.2 Temperature
21 3

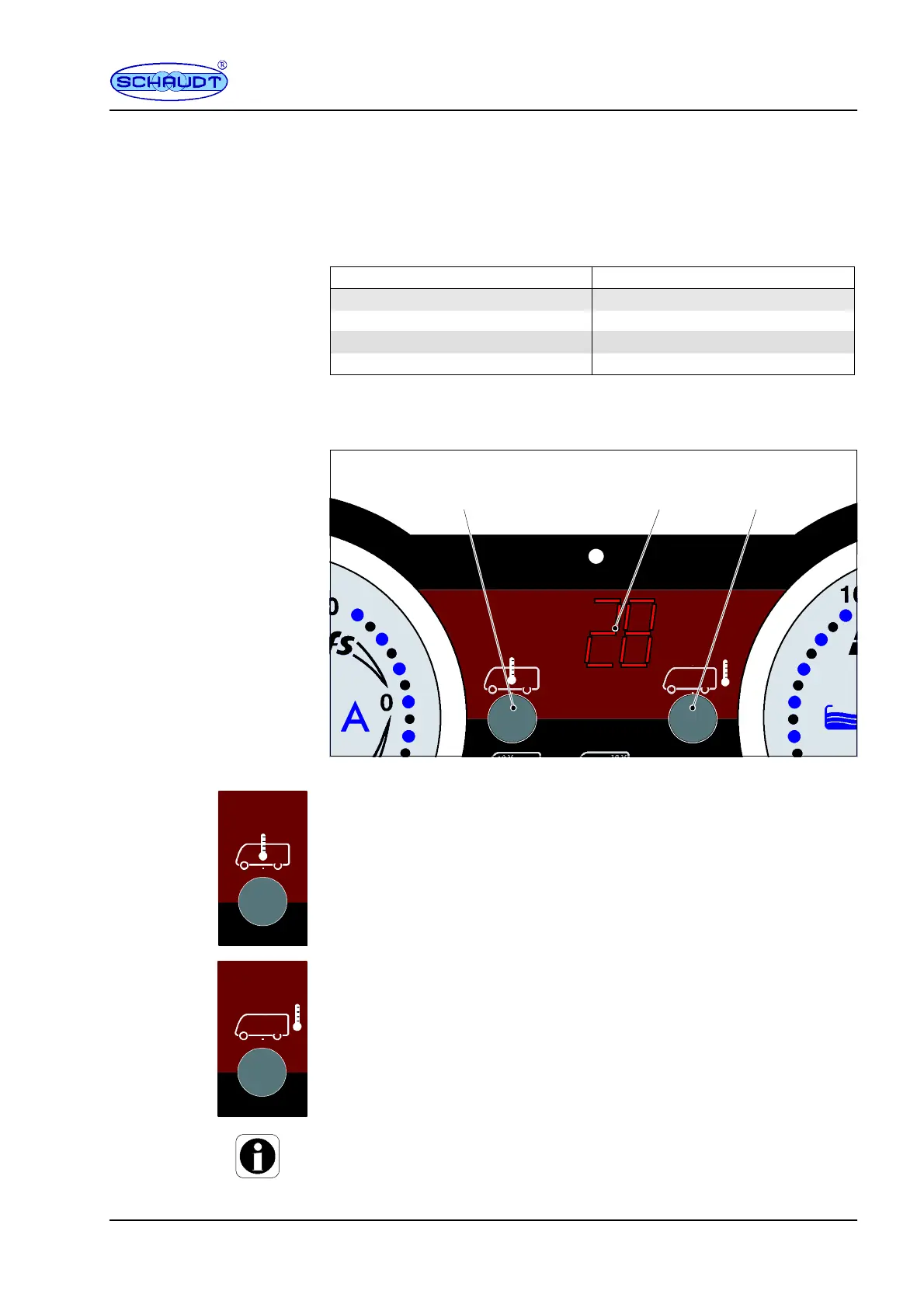

Bild 4 Battery display -- example: Living area battery voltage 12.2V
"
Press the ”Interior Room Temperature” button once (underneath the in-
terior room temperature symbol, Fig 4, Pos. 1).
F The internal temperature is shown as a two-digit 7-segment display in
C(28 C in this example).
" Press the ”Exterior Temperature” button once (underneath the interior
room temperature symbol, Fig 4, Pos. 1).
F The external temperature is shown as a two-digit seven-segment dis-
play in C.
Y The sensor has a fault if the display is flashing. Contact your specialist
workshop.
Guidelines for
off-load voltage
