2 Purpose
The EBL 630 B electroblock, together with the bus modules in the 630 family, is the cen-
tral power supply unit for all 12V consumers in the vehicle’s electrical system.
+-- +--
230V ~
W ater tank
W aste water
tank
Auxiliary
charger
LAS ...
(accessory)
Electroblock
EBL 630 B
Solar
regulator
LR...
(accessory)
Solar module
(accessory)
Starter battery
Leisure battery
12V consumers / tanks / etc...
Outside temp.
Refrigerator
module
KM 630
Tank
module
TM 630
Output
module 1
AM 631
Pumps
module
PM 630
...
Other
modules
(optional)
Main 12V supply
...
Other
modules
(optional)
SDTBUS630
Bus-compatible
LT ... / DT ...
operator and control panel
SDTBUS630

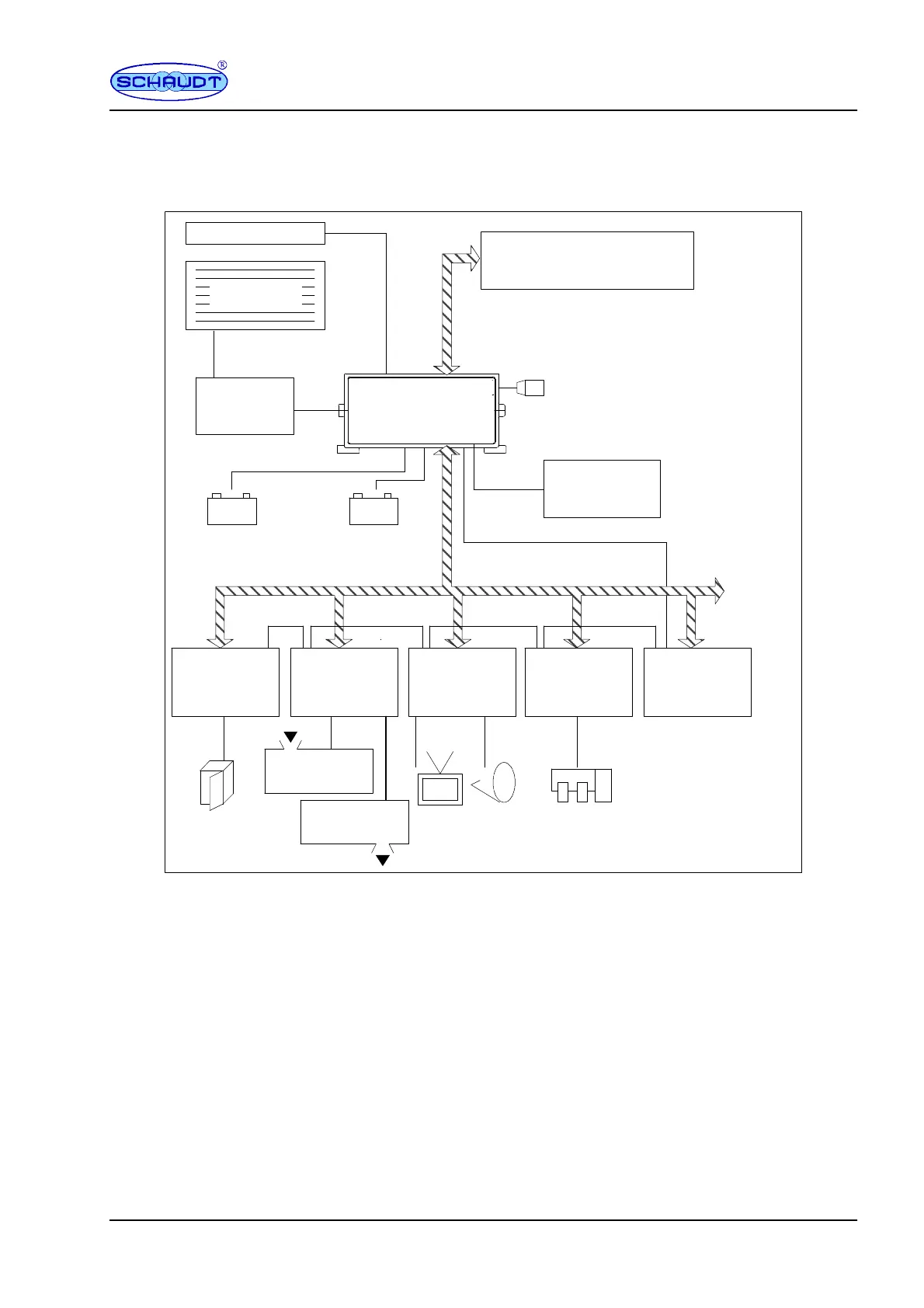

Fig. 1 On-board power supply system
The EBL 630 B electroblock comprises:
F a charge module for charging all batteries connected
F output ”main 12V supply” for the bus modules
F connections for the batteries
F an internal bus module for the SDTBUS 630 to be able to transfer readings to the
bus
The individual bus modules are used for the complete 12V distribution system and for
fusing the 12V circuits.
Modules
