Operation
Bloc 9 can be congured from:
- a NAVICOLOR display
- a PC with MULTICOM software and its CAN / USB interface
- the WiFi server conguration interface
- a CAN / CAN SD interface with a conguration created from the Scheiber conguration software.
CONFIGURATIONCONFIGURATION
When switching on, check that the MULTIBLOC devices are connected to each other by the CAN network and correctly supplied. The two 120 Ω
terminations must also be correctly placed.
Check for each function that:
- The control keys (ON / OFF) are used to control each of the outputs.
- Bypass fuses are used to activate each function.
If your network has a NAVICOLOR type front panel, check that:
- The facade allows to control each of the outputs.
If your network has a NAVICOLOR type front and IBS sensors are mounted on Block 9 check that:
- The front panel allows the values of the batteries to be read and that these values are in accordance with the expected results.
For any problems encountered please consult the chapter "TROUBLESHOOTING GUIDE"

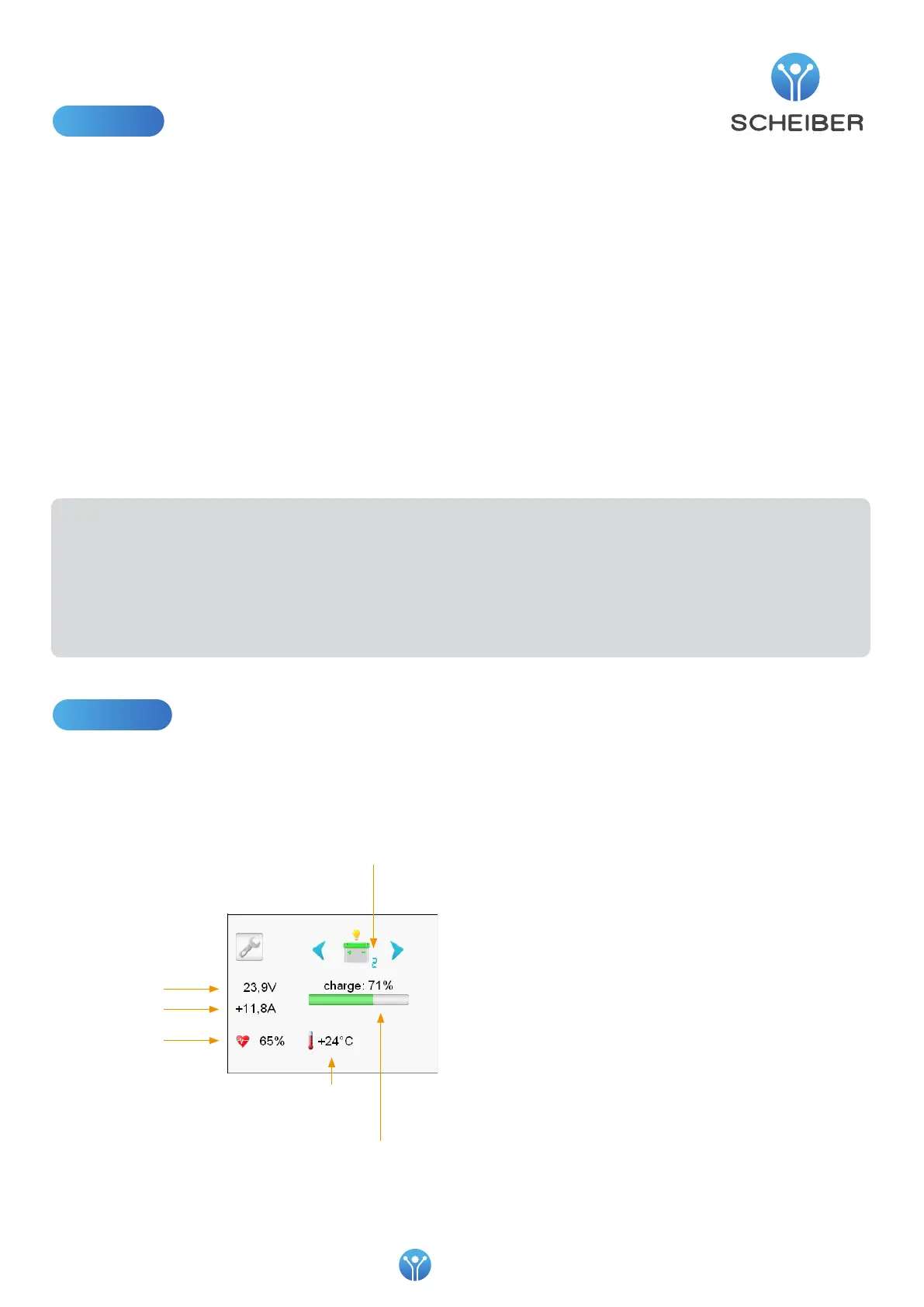

IBS sensor
How to read the measurements of an IBS sensor?
The NAVICOLOR panel displays the status of the batteries using the following information:
Voltage
Current
Health
Battery
temperature
Battery
number
State of charge
*Image not contractual
