www.scheppach.com
153

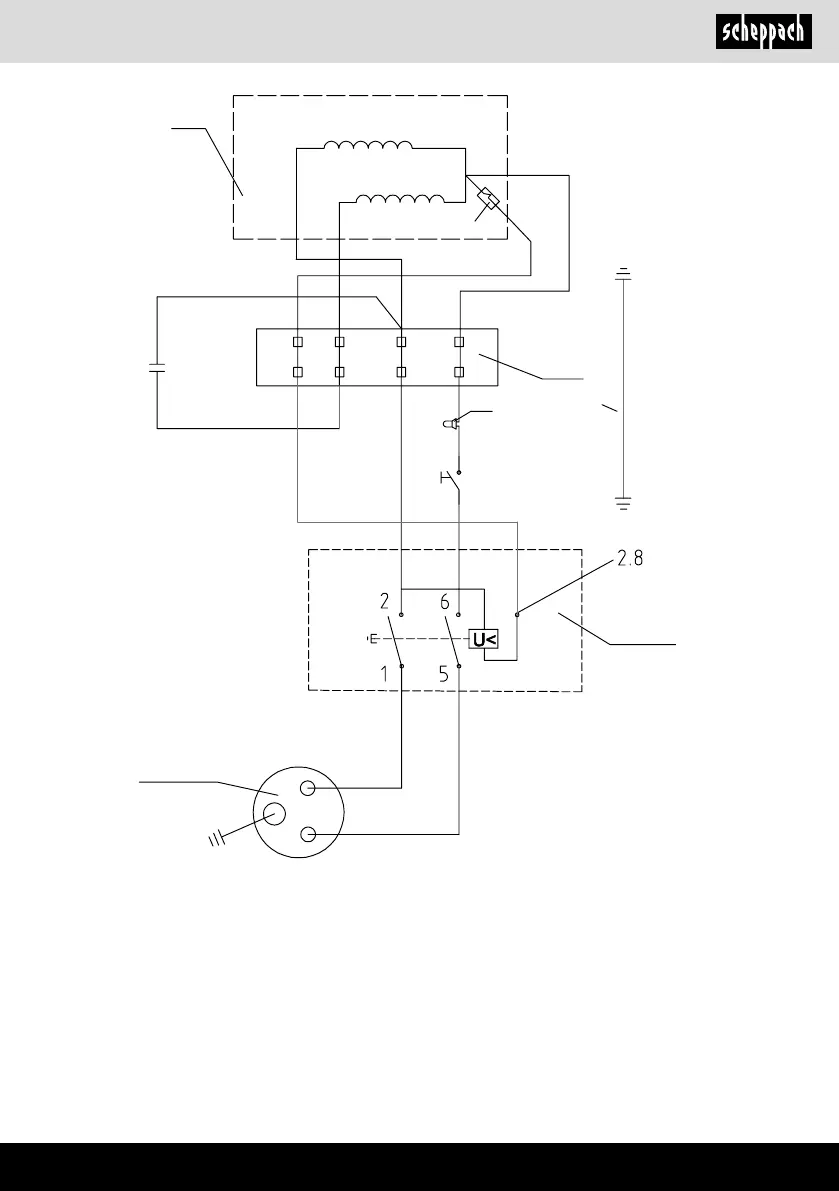

Main Winding
Secondary Winding
Thermal Protector
Red
Capacitor
Motor
Black Blue
Blue
Blue
Brown
Brown
Black
Switch
Small Insert
BrownBule
Yellow/Green
Single Phase
Common Socket
Microswitch
Line Bank
End Wire
Connector
Yellow Green
Brown
230 V
