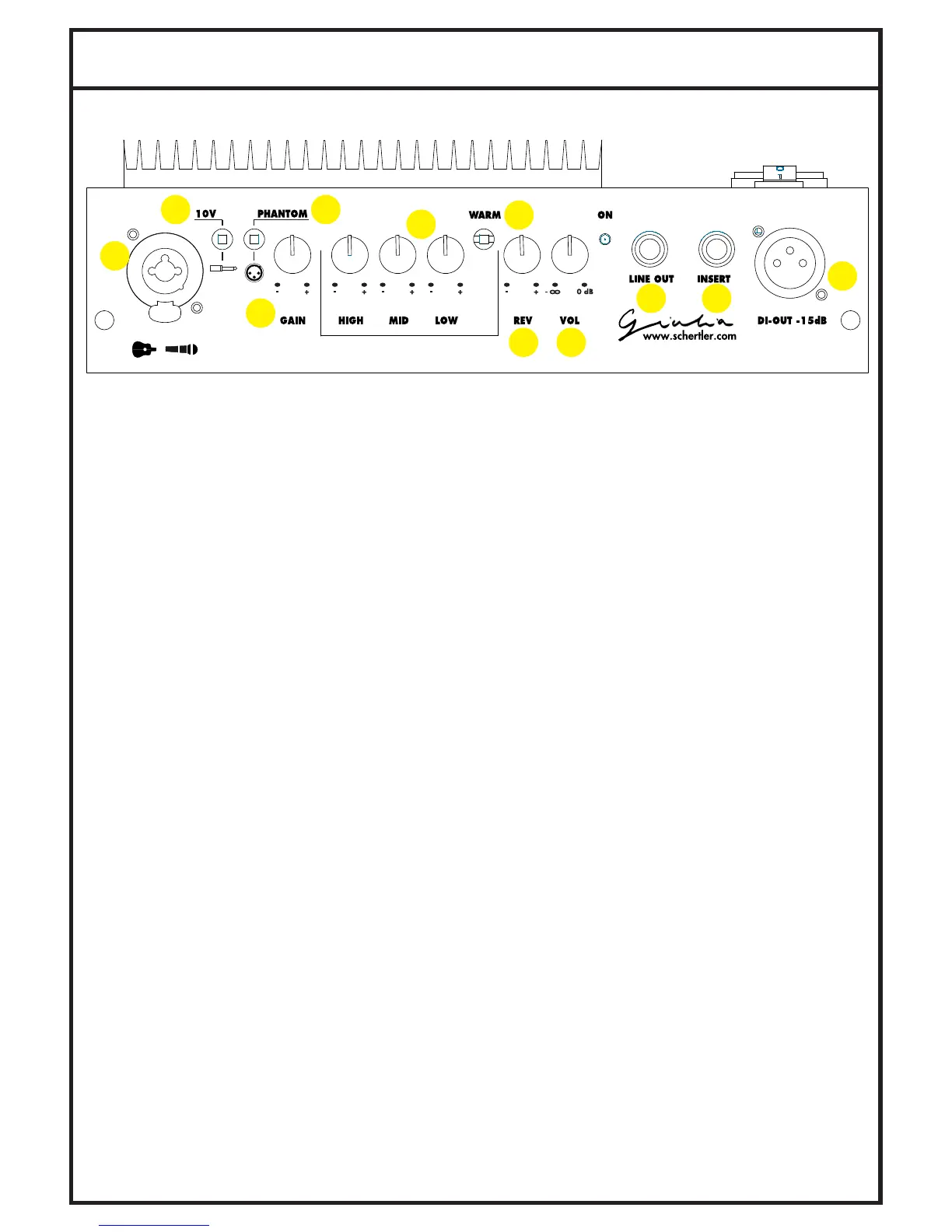

1. FRONT PANEL
1.1. MIC-JACK INPUT
This input is electronically balanced for XLR type connections. The new MIC/DYN channel is now conceived for any kind of signal sources. You
can plug in vocal microphones, hi impedance signals and line signals. The electronics will adapt to any situation. No special action is required.
1.2. PHANTOM-10V
Phantom power supplies the jack connector with 10V for powering electret microphones.
1.3. 48V
Phantom power supplies the XLR connector with 48V for powering condenser microphones.
1.4. GAIN
This variable gain preamplifier adjusts the sensitivity level to ensure the best possible processing of the signal through the channel.
It is important that this input level should be set and optimised in the best way to achieve the cleanest sound possible.
1.5. HIGH, MID, LOW
These controls are devoted to high, medium and low frequency regulation. Offering cut and boost of ±15dB, they allow a wide range of tonal
variations to be explored. When the controls are positioned centrally there is no cut or boost of the selected frequency band.
1.6. WARM
When engaged, this low-pass filter damps higher frequencies to produce a warmer sound when using bridge-mounted pickups such as the
SCHERTLER STAT-Series transducers for violin, cello and double bass.
1.7. REVERB
This rotary control sets the level of the digital reverb on the channel.
1.8. VOLUME
This rotary control regulates the channel volume.
1.9. LINE-OUT
This unbalanced jack plug enables the connection of external systems. The output volume depends on the regulation of the MASTER-VOL.
1.10. INSERT
This stereo jack plug enables the connnection of an external device (compressor, equalizer, etc.) in series to all the outputs.
1.11. DI-OUT
General output. XLR balanced type connector for connections of external systems. The output volume does not depend on the regulation of
the MASTER-VOL but is effected by changes in the channel volume.
1.1.
1.4.
1.3.1.2.
1.5.
1.6.
1.7. 1.8.
1.9. 1.10.
1.11.
