Schiedel ICS - Offset Dimensions; Offsets for Double 15° Bend; Offsets for Double 30° Bend; Offsets for Double 45° Bend

20

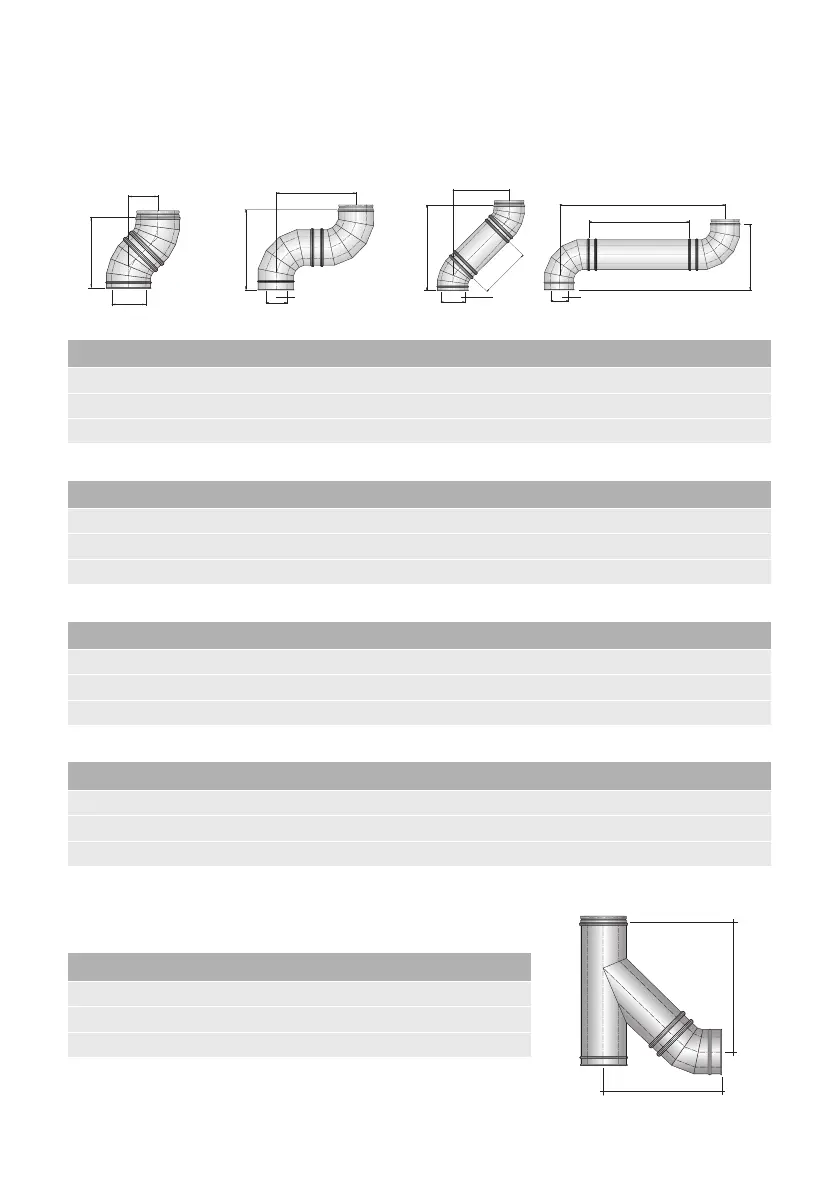

Offset Dimensions
(made by assembling 2 bends)
B
B
A
A
Int Ø Int Ø Int Ø
B
B
Eff Pipe
Eff Pipe
A
A
Int Ø
Offsets for Double 15˚ Bend
Int Ø 80 100 130 150 180 200 230 250 300
A 295 295 295 295 315 315 315 334 334
B 39 39 39 39 41 41 41 44 44
Offsets for Double 30˚ Bend
Int Ø 80 100 130 150 180 200 230 250 300
A 280 299 327 336 355 373 373 392 411
B 75 80 88 90 95 100 100 105 110
Offsets for Double 45˚ Bend
Int Ø 80 100 130 150 180 200 230 250 300
A 307 324 341 358 376 393 427 427 461
B 127 134 141 148 156 163 177 177 191
Offsets for Double 90˚ Bend
Int Ø 80 100 130 150 180 200 230 250 300
A 300 316 348 366 396 420 452 468 518
B 300 316 248 366 396 420 452 468 518
B
A
Offsets for 135 Tee˚ & 45˚ Bend
Int Ø 80 100 130 150 180 200 230 250 300
A 343 370 437 445 452 496 523 537 592
B 305 324 404 406 415 473 475 499 556
