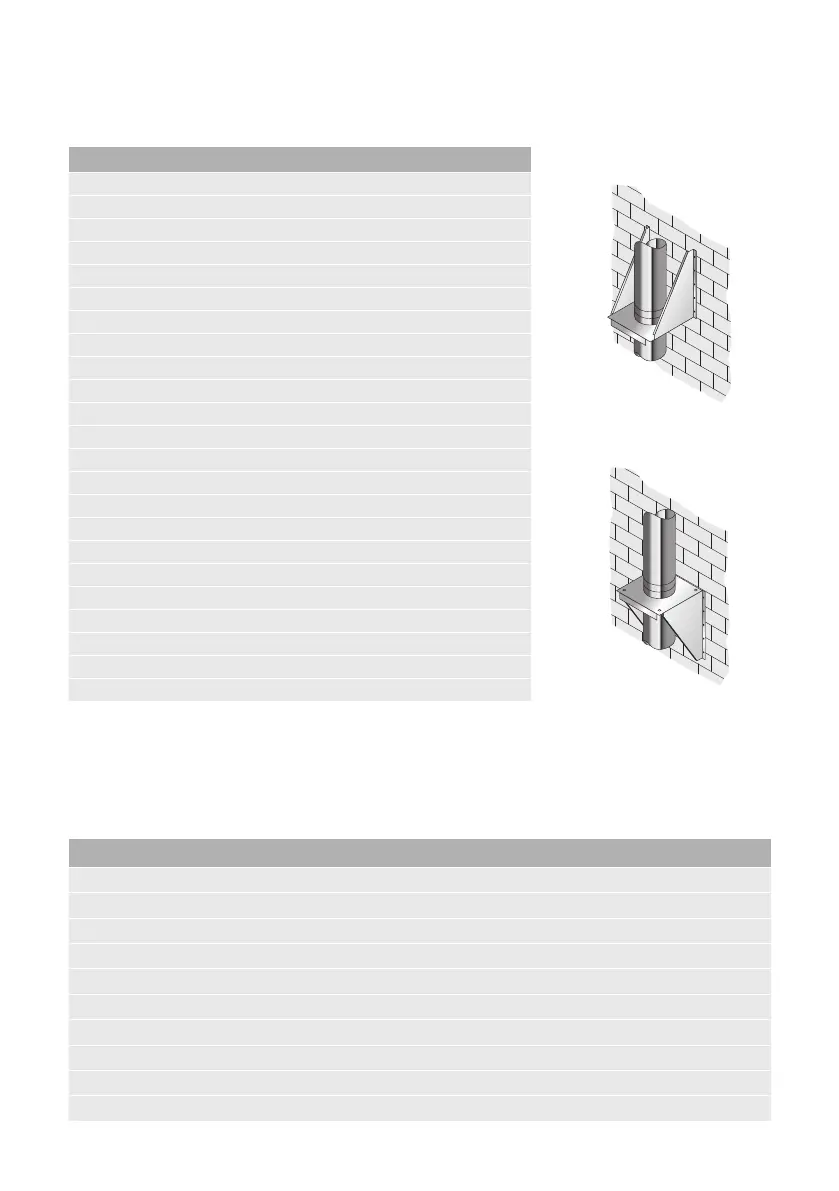

Load Bearing Data
Diagram B
Diagram A
Maximum Load Bearing (metres of pipe)
Internal Diameter (mm) 80-130 150-180 200-300
Base Drain Section 22 18 18
Telescopic Floor Support 18 18 18
Retrofit Wall Support 10 10*
Adjustable Top Plate + Locking Band 15 15 15
Pair of Side Plates (see Diagram A) 15 15 15
Pair of Side Plates (see Diagram B) 10 10 10
Cantilever Support 22 18 18
Extension Support (Anchor Plate) 1.5 1.5 1.5
Ventilated Support Plate (All types) 12 12 9
Support Plate 12 12 9
Ceiling Hanger 1.5 1.5 1.5
Wall Band 50/60mm 3 3 3
Adjustable Wall Band 60-300mm 3 3 3
Structural Wall Band 4 4 4
Extension for Structural Wall Band 4 4 4
Guy Wire Bracket 1.5 1.5 1.5
Roof Support above truss (see Fig. 1 p.19) 6 6 6
Roof Support - below truss (see Fig. 2 p.19) 4 4 4
90° Tee + Locking Band 22 18 18
93° Tee + Locking Band 22 18 18
135° Tee + Locking Band 15 10 10
Inspection Tee (Round) 22 18 18
Component Weights
Approximate Weights of Finished Goods (Kg)
Internal Diameter Length(mm) 1000 750 500 250 195
80 4.32 - 2.13 1.09 0.85
100 5.14 - 2.53 1.29 1.01
13 0 6.35 4.74 3.14 1.60 1.24
150 7.18 5.36 3.54 1.86 1.41
180 8.40 - 4.14 2.11 1.65
200 9.22 - 4.55 2.31 1.80
230 10.44 - 5.13 2.62 2.03
250 11.24 - 5.53 2.81 2.19
300 12.08 - 5.97 2.92 2.29
* Retrofit Wall Support available diameters 80 - 150 only
