Schiedel ICS - Double Wall Adjustable Starter Section; Initial installation; Removal of stove for servicing

18

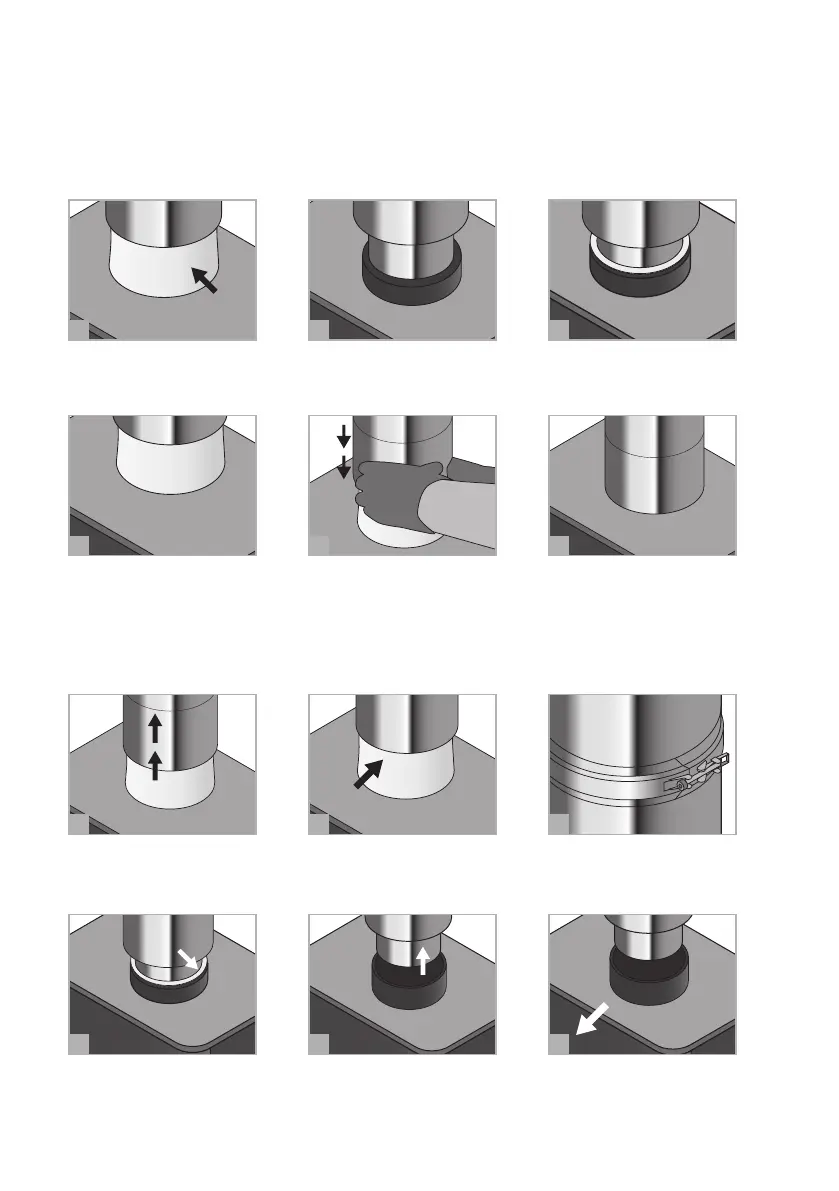

Double Wall Adjustable Starter Section
Initial installation
Removal of stove for servicing
Remove loose strip of insulation
and keep to one side.
Slide adjustable case up inside the
outer wall of the chimney.
Insulate liner using strip of
insulation with joint to rear. Width
of insulation can be trimmed to
suit.
Insert male spigot of liner into the
appliance spigot.
Remove two loose insulation strips
and keep to one side.
Slide adjustable case down
over the insulation to cover the
appliance spigot.
Finished installation.
Seal using the rope gasket, fire
cement or similar.
Loosen the locking band on the
liner using the quick release clip
(retain the locking band to one
side).
Break the fire cement seal
between the appliance spigot and
chimney liner.
Slide the liner spigot up inside the
chimney until clear of appliance
spigot.
Remove the appliance.
1
1
4
4
2
2
5
5
3
3
6
6
