Typical Installations

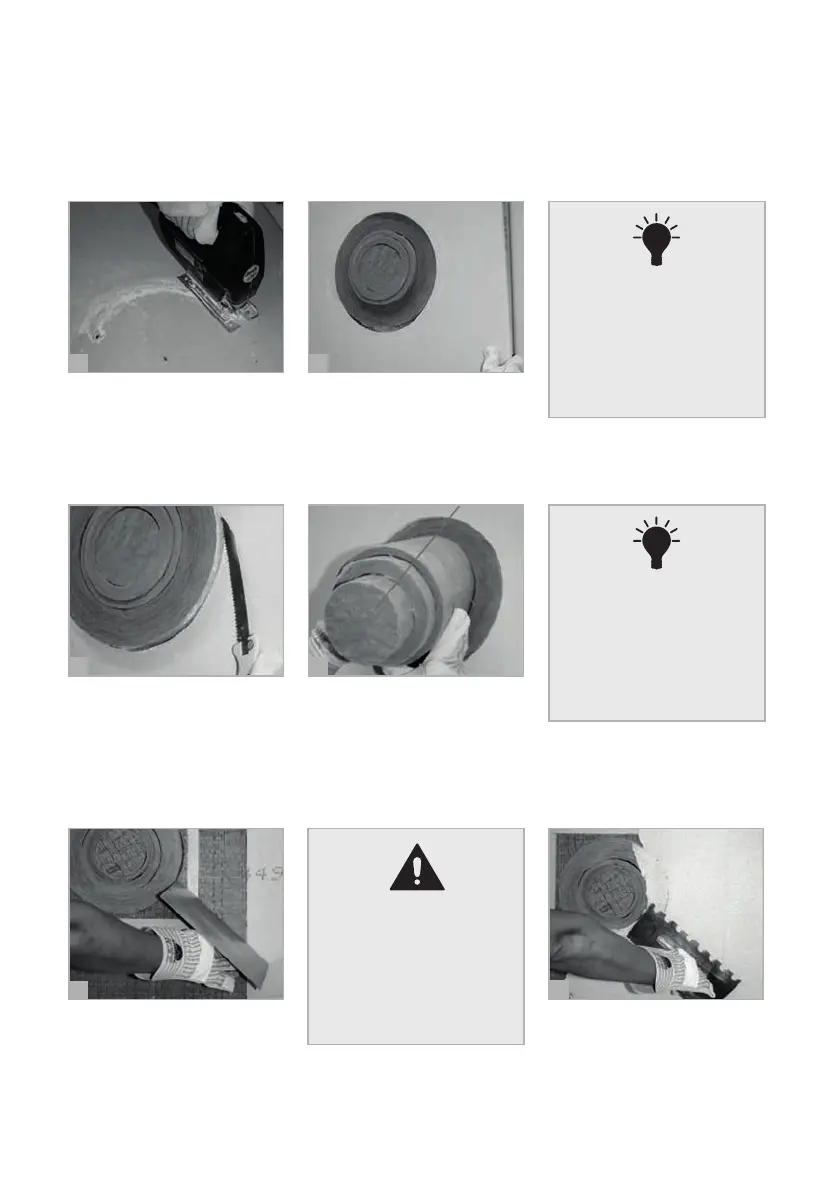

Replace the prepared thermal board.
NOTE: The vapour barrier must
not be damaged!
Cut a hole in the thermal board to
fit the Ignis-Protect outer protection
pipe. IMPORTANT: follow the safe
working notes on page 31.
Application of render over the whole
surface. NOTE: do not render over
the inner protection pipe!
If necessary, shorten the inner and
outer protection pipes to be flush with
the wall. IMPORTANT: follow the safe
working notes on page 31.
Check that the thermal insulation is
flush with the wall.
By pulling out the corresponding inner
protection pipes and the assembly cap
(A) the connection size is adapted to
fit the required connecting pipe
or transition piece.
The Ignis-Protect
inner protection pipe and
the outer protection pipe
are basically designed for
24mm wall planking!
The inner protection pipes
and the assembly cap (A)
remain in place until the
stove connection pipe is in
its nal position in the
Ignis-Protect.
TIP:
TIP:
1716
19
21
18
20
Follow the preparation
guidelines and relevant
drying times of the
render system
manufacturer!
IMPORTANT!
Ignis-Protect
