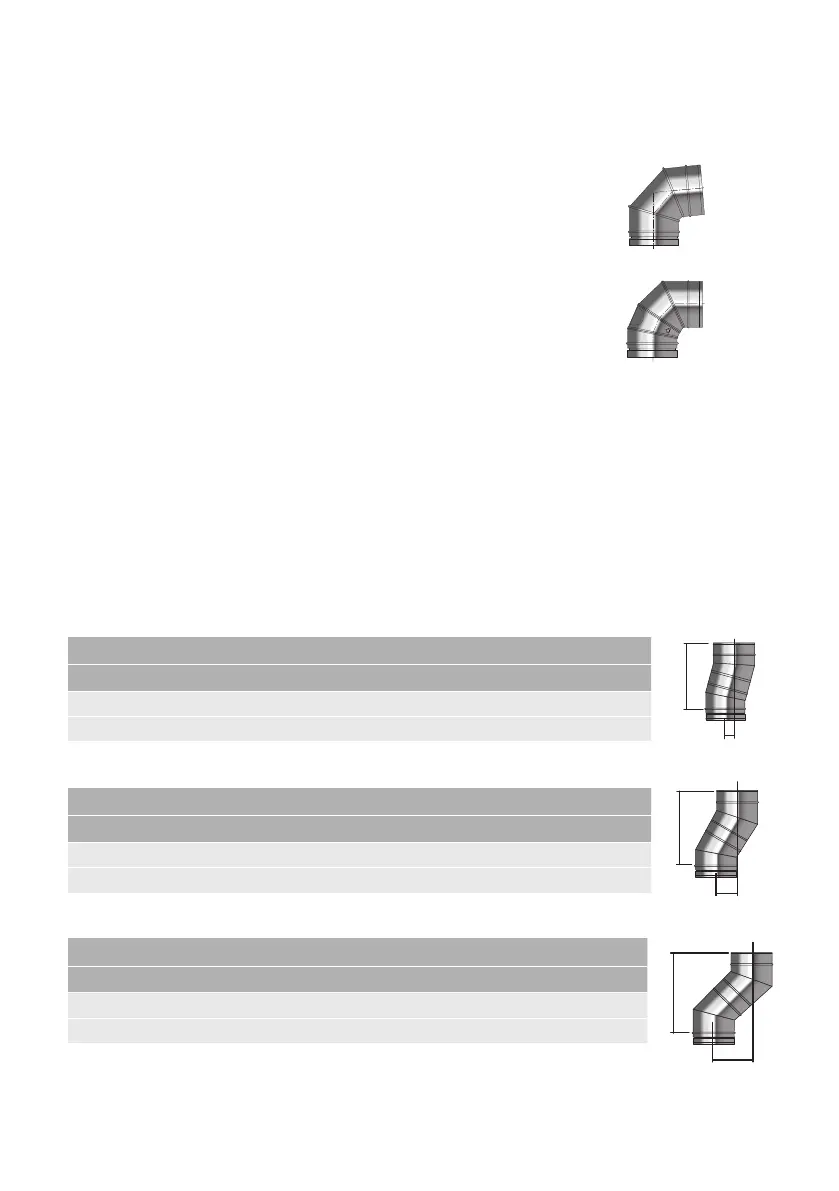

Schiedel Prima Plus - Elbows, Bends, and Inspection Bends; Offset Dimensions (2 Bends)

17
Chimney Lining Components
87˚ FIXED BEND
For use on condensing systems allowing 3° incline.
0 - 90˚ ADJUSTABLE INSPECTION BEND (NON
CONDENSING)
The inspection length is a component providing the facility for
flue inspection and cleaning.
ELBOWS 15° - 90°AND ADJUSTABLE INSPECTION
ELBOW
All Elbows provide a change of direction form the vertical. For
offset information on standard elbows, please refer to tables
on page 13.
B
A
B
A
B
A
Offset Dimensions
(Made By Assembling 2 Bends)
Offsets 15˚
Int Ø
80 100 130 150 180 200 230 250 300
A 29 29 30 31 32 33 34 34 36
B 218 222 230 236 244 248 256 261 273
Offsets 30˚
Int Ø
80 100 130 150 180 200 230 250 300
A 60 64 68 70 74 77 81 84 90
B 226 237 252 261 276 287 302 312 336
Offsets 45˚
Int Ø
80 100 130 150 180 200 230 250 300
A 110 116 139 139 153 160 168 168 182
B 266 280 335 335 369 386 406 406 440
