CONNECTIONS

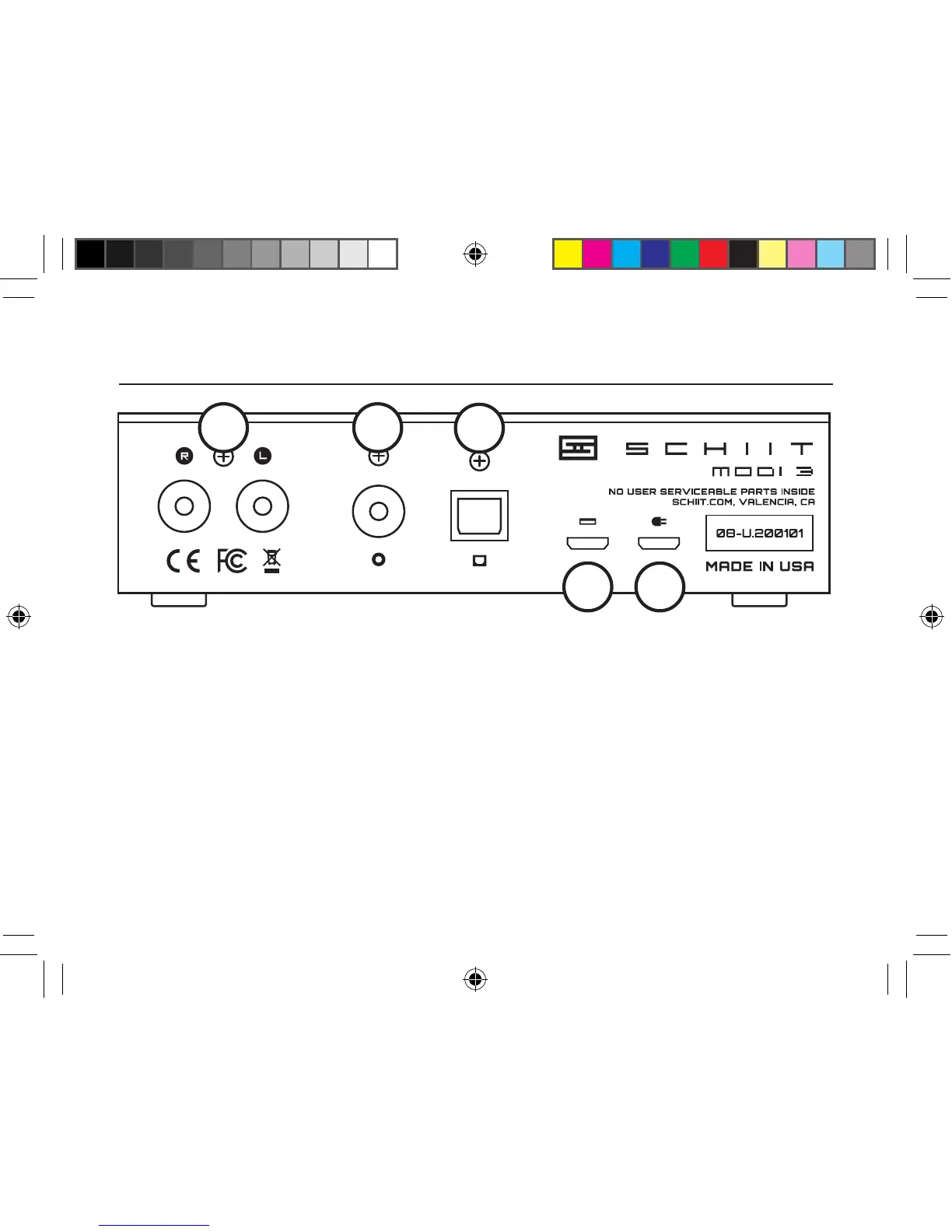

1 RCA Analog Outputs. Connect the two RCA
jacks, to your amp, preamp, or receiver.
2 Coaxial Digital Input. Connect a coaxial digital
source, using an RCA cable, 75 ohm preferred.
3 Optical Digital Input. Connect an optical source
to the optical input jack, using a Toslink cable.
4 USB Data and Power Input. Connect a USB
source using a USB micro cable (supplied).
5 Power Input. Connect a 5V power source to this
if you need external power. See “Operation.”
1 2
3
4 5
OPERATION
If you’re using Modi 3 as a USB only DAC, you
don’t need Power Input. Just connect it to your
computer with the supplied USB Micro cable and
you’re set.
If you’re using the other digital inputs, and you’re
NOT using USB, you need Power Input. Connect
the supplied USB wall-wart with the supplied USB
Micro cable to provide power for the other inputs.
Modi 3 won’t work without power, and power
comes from USB.
