Schiit MODI UBER - Connections Guide; Power and USB Source Connection; Digital and Analog Output Connections

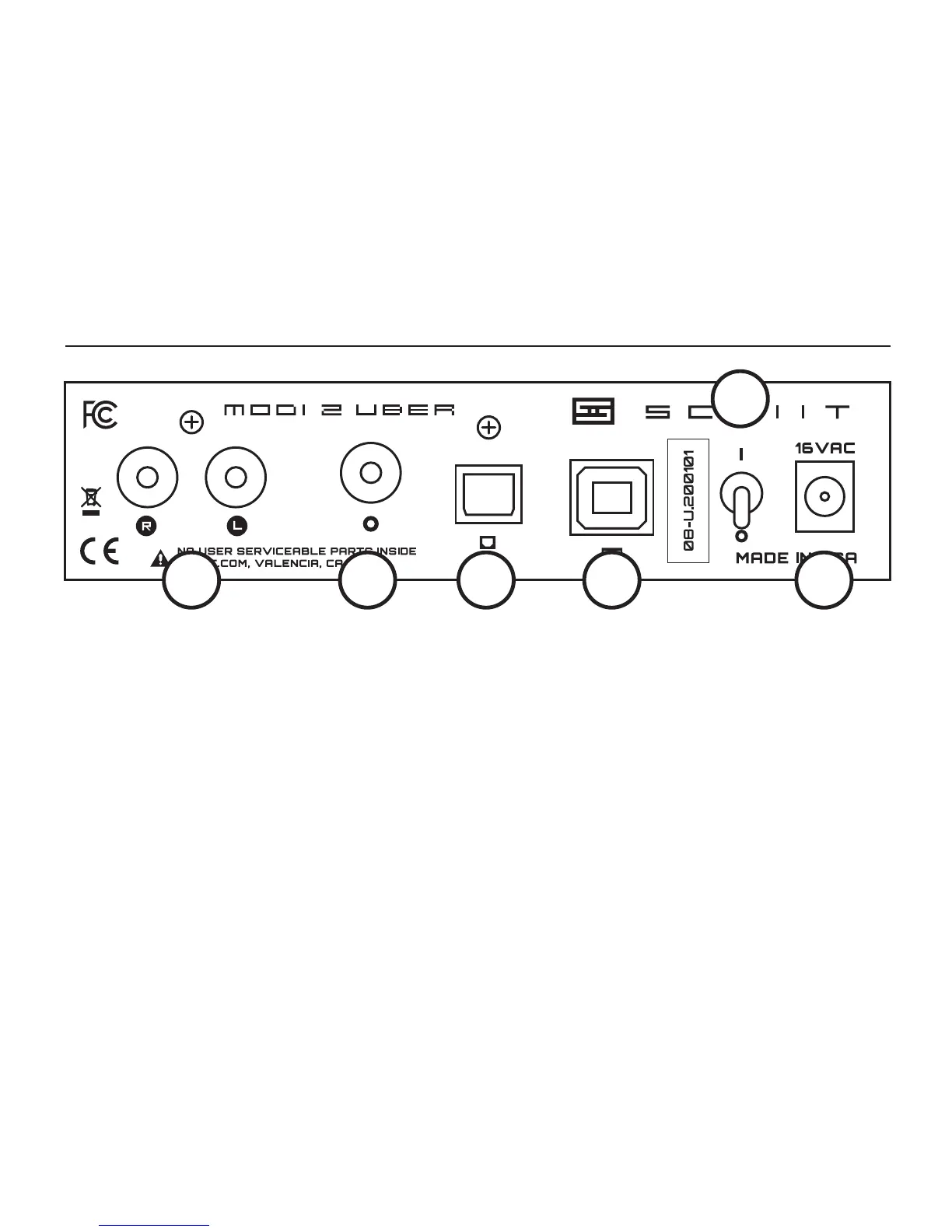

CONNECTIONs
1 Connect the supplied 16VAC wall-wart.
Don’t use any other power adapter, or very bad
things might happen.
2 Connect your USB source to the Modi
Uber’s USB input with a USB 2.0 A-B cable, 2M or
less in length (that’s about 7 feet.)
3 Connect your optical source to the optical input
jack, using a good Toslink cable, 3M or less.
4 Connect your coax digital source to the coax
input jack, using an RCA cable, 75 ohm preferred.
12345
6
5 Connect the two RCA jacks, labeled “R” and “L”,
to your amplier, preamplier, or receiver. You
may use long cables—Modi Uber’s active output
stage drives them with ease.
For USB, select the Modi as the audio output
device in Control Panel (Windows) or System
Preferences (Mac) AND in your music player
software. Windows users may have to install
drivers from schiit.com/drivers.
6 Turn it on and enjoy your music!
