Pencil
Optional
Flathead Screwdriver
Wood Block
Hammer
IMPORTANT NOTES
DO NOT use a power drill for installation!
Install and test lock with door open to avoid being locked out.
If tailpiece is not installed, insert into slot on the back of the touchscreen and snap into place.

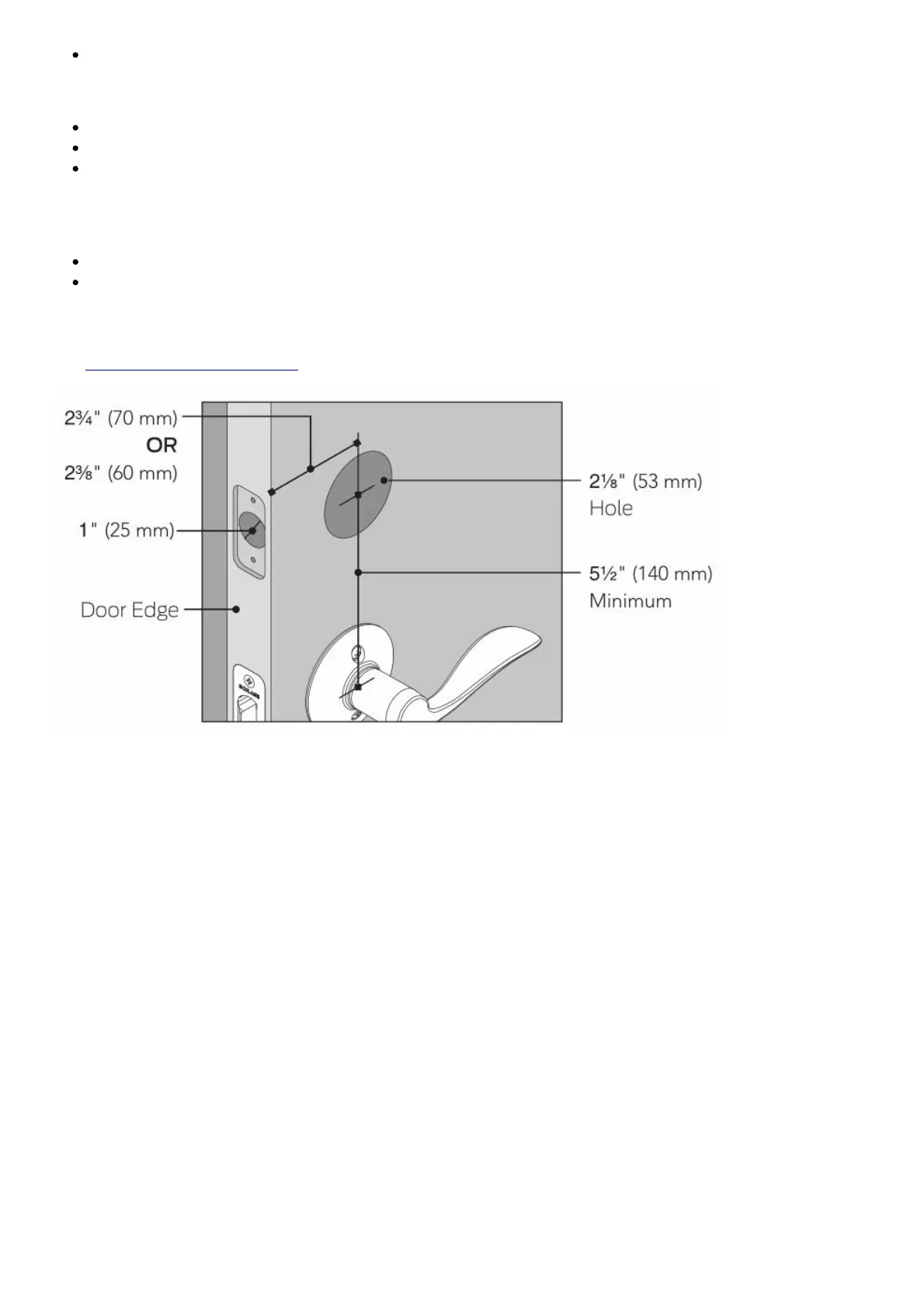

A. Check door dimensions.
See schlage.com/faqs-touch for door preparation instructions if dimensions are different.
B. Adjust bolt length, if necessary.
Measure the dimension shown. If the measurement is 2C\v” (70 mm), extend the bolt.
To Next Page
