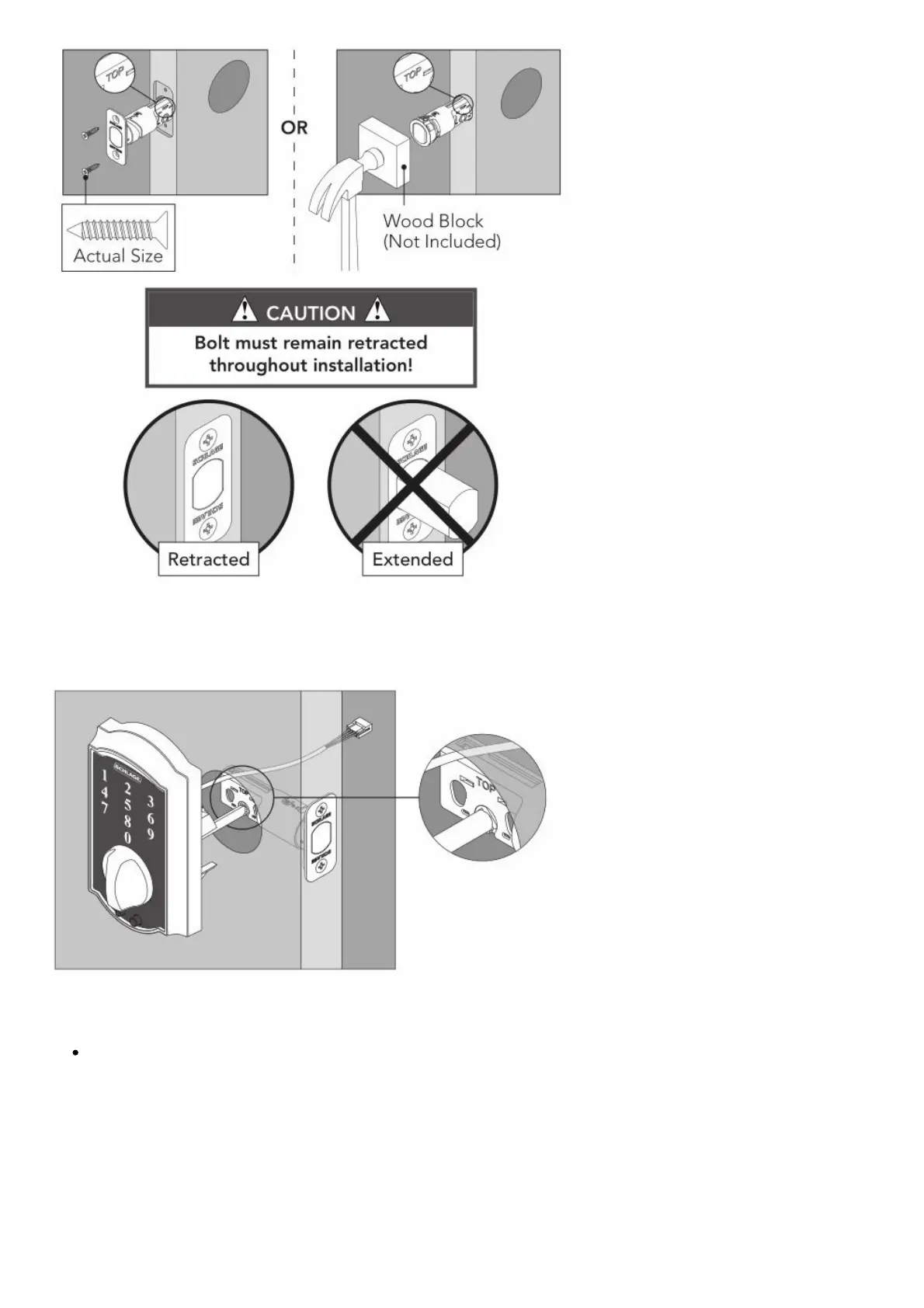

2. Install the touchscreen on the outside of the door.
Slide tailpiece through the slot in the bolt, and route wire over bolt.
3. Install the thumbturn assembly.
Rotate the thumbturn to a vertical position.
