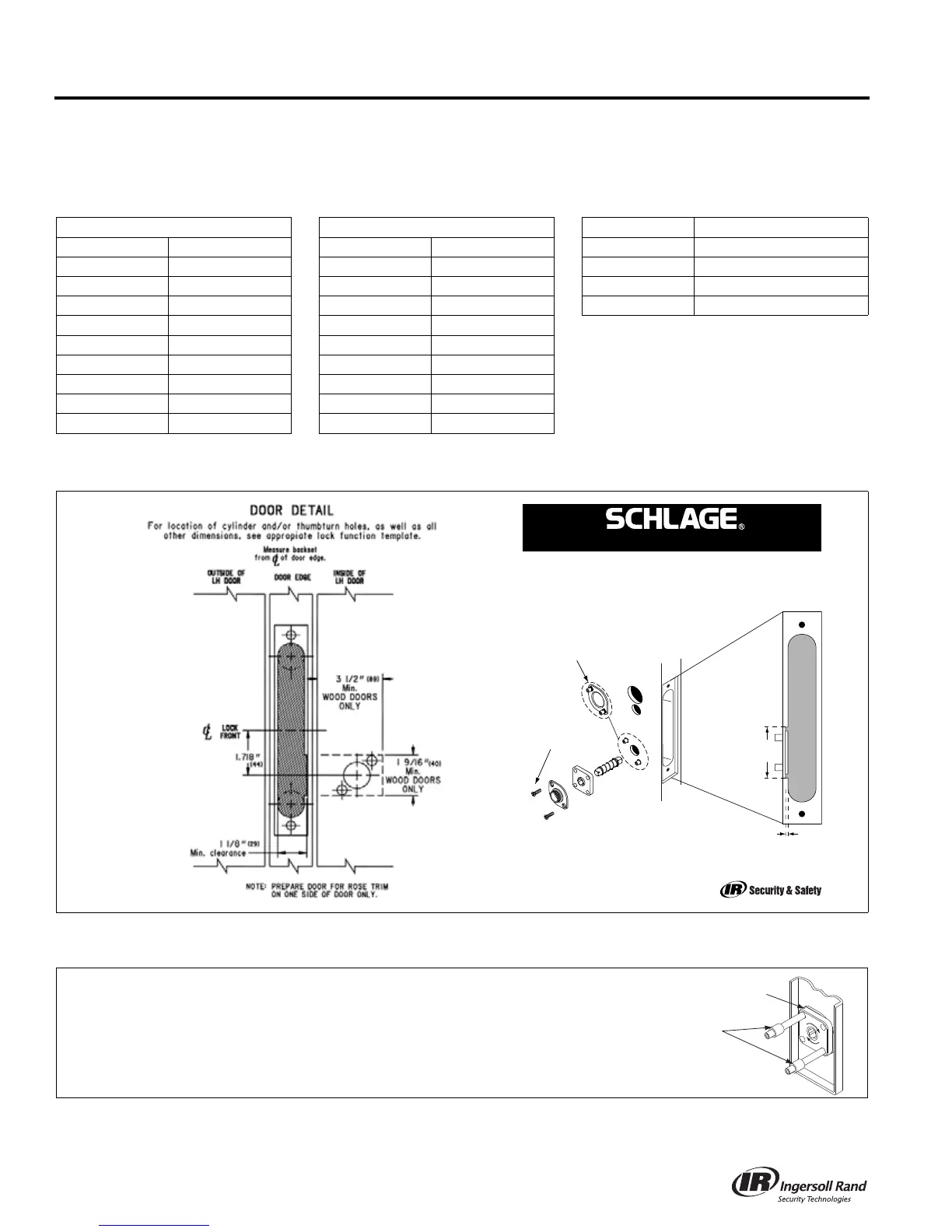

L Service Manual
100
Trim Assembly Parts
Mounting Plate for Trim One Side Only
Mounting Posts
(Two required per lock)
Spindles and Springs
(Two required per lock)
L Functions LV Functions
Part Number Description
Part Number Door Thickness Part Number Door Thickness
L283-060 1³⁄₈''–1⁷⁄₈'' doors
L583-211 1³⁄₈'' N/A 1³⁄₈'' L283-061 2''–3¹⁄₂'' doors
L583-212 1³⁄₄'' L583-497 1³⁄₄'' L283-064* L0172 double dummy
L583-213 2'' L583-498 2'' L283-065* L0170 single dummy
L583-214 2¹⁄₄'' L583-499 2¹⁄₄''
* One required per lock
L583-215 2¹⁄₂'' L583-500 2¹⁄₂''
L583-216 2³⁄₄'' L583-501 2³⁄₄''
L583-217 3'' L583-502 3''
L583-218 3¹⁄₄'' L583-503 3¹⁄₄''
L583-219 3¹⁄₂'' L583-504 3¹⁄₂''
L283-150 Mounting Plate & Posts for rose trim on one side of door. For lever use with Spring Cage L283-031, for knob use with Mounting Plate L583-321.
ANSI A115.1 1990 Hollow Steel Door Installations
Install two spacers between the spring cage (or knob mounting plate) and lock chassis as
shown. Spacers are required for both the inside and outside escutcheons.
NOTE: L-design escutcheons are not applicable for ANSI A115.1 door preparations.
L283-029 For installation on 1³⁄₄'' thick hollow steel doors prepared per ANSI A115.1 1990.
.11"
3mm
1.76"
45mm
Installation Instructions
L-Series
Mounting plate for trim one side
©2001 Schlage Lock Company
Printed in U.S.A.
P513-301 Rev. 01/01
Mounting Plate
Screws
Mortise door for proper fit
of mounting plate.
Spacers
Spring cage (lever applications)
OR
Mounting plate (knob applications)
To Next Page
