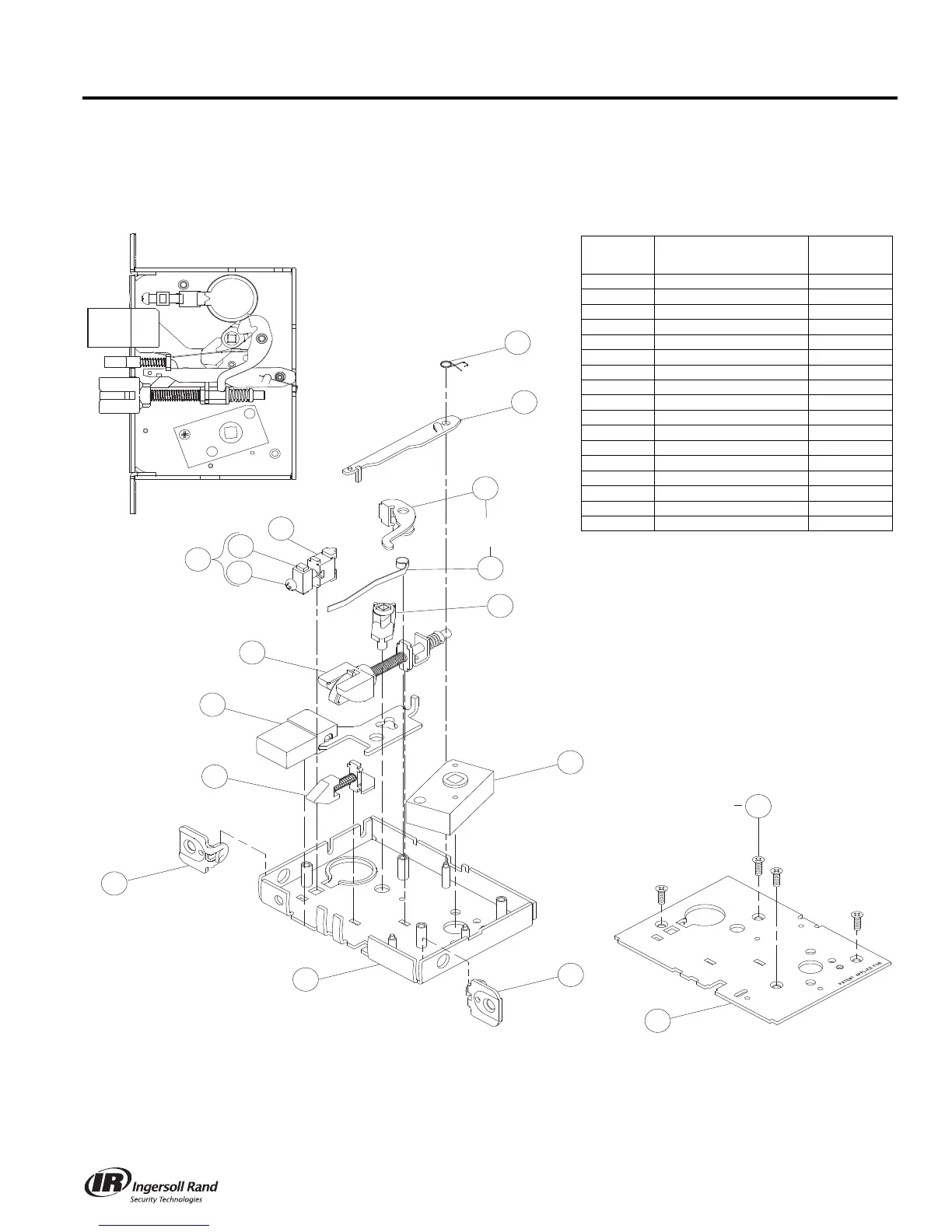

Lock Case Assemblies
L9482 x XL11-543
Assembled Lock Case L283-146 x XL11-543
** Please see “Assembly of Lock Case Parts” on page 87.
NOTE: Lock case assembly shown for LH and LHR doors.
4
58
52
55
10
51
6
56
53
51
13
42
5
3
27
30
39
50
33
(couple before
assembly)**
Number Description
Part
Number
3 Deadbolt L283-003
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
33 Stop Spring L583-044
39 Transfer Lever L583-051
42 Spindle Anchor L583-057
50 Auxiliary Stop L583-196
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
