Service Manual L
65

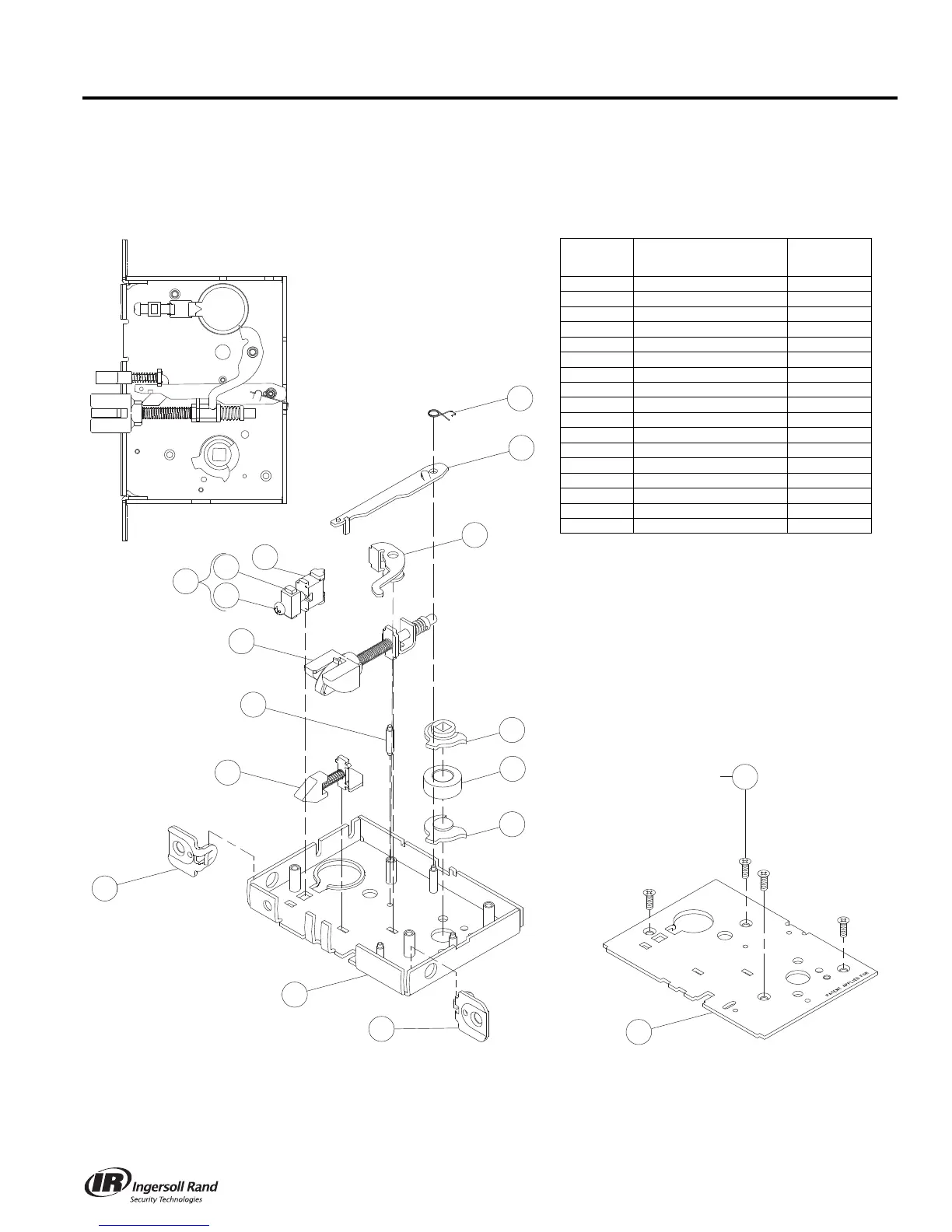

Lock Case Assemblies
LV9082
Assembled Lock Case L283-182
NOTE: Lock case assembly shown for RH and RHR doors.
62
65
63
51
5
15
6
53
56
10
55
33
50
39
51
13
52
58
4
Number Description
Part
Number
5 Auxiliary Latchbolt L283-006
6 Latchbolt L283-008
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
15 Standoff Post L583-004
33 Stop Spring L583-044
39 Transfer Lever L583-051
50 Auxiliary Stop L583-196
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
62 Bottom Hub L583-386
63 Top Hub L583-387
65 Spacer L583-346
