L Service Manual

108

Full Size Interchangeable Cores

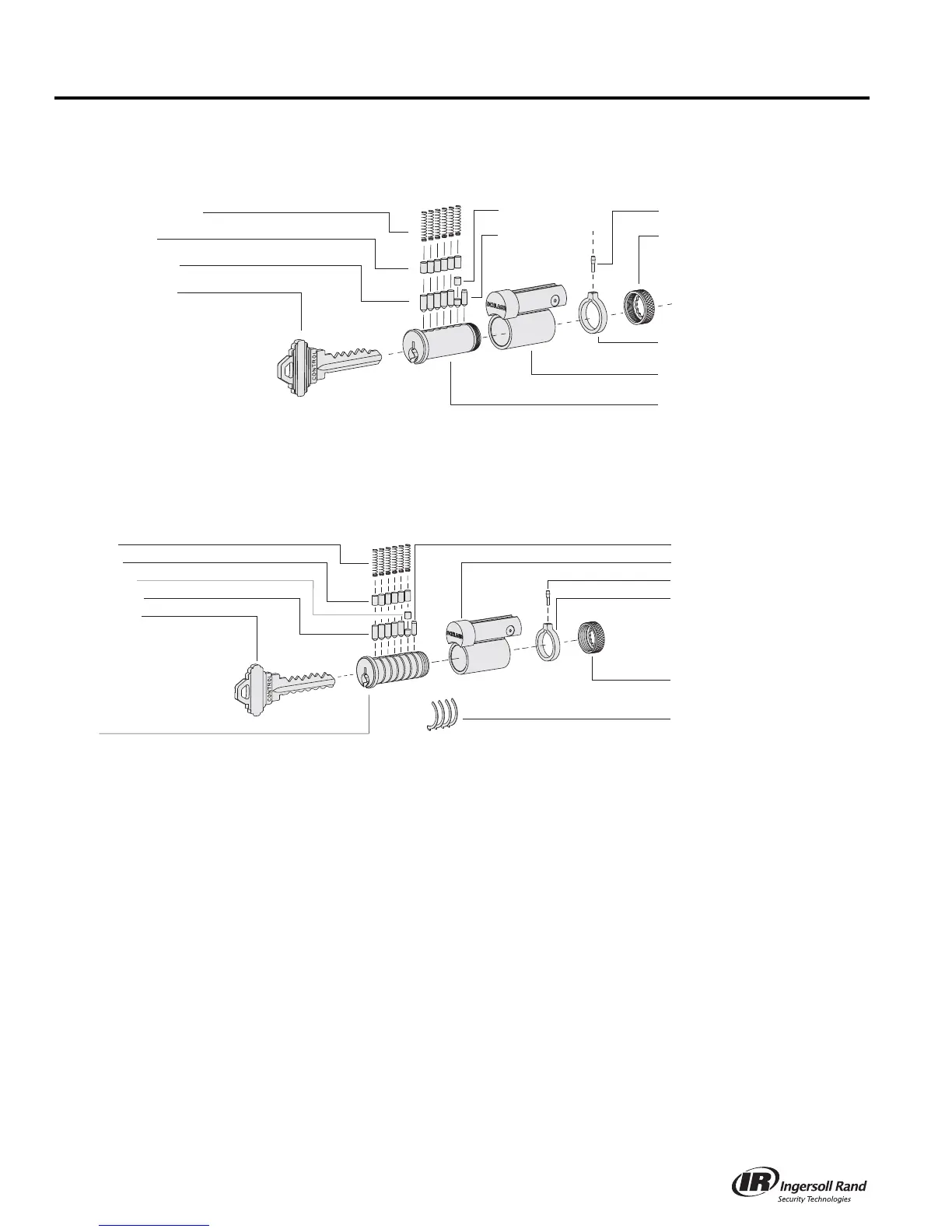

Exploded View – Full Size Classic

Exploded View – Full Size Hotel Classic

Tumbler springs

Top pins

Bottom pins

Control key

Master pins

Control pin

Actuating pin

Retainer cap

Actuating ring

Shell

Plug

Assembled with retainer cap

pin and cap pin spring

Control pin

Shell

Actuating pin

Actuating ring

Retainer cap

Stop rings (4)

Shown for right hand (RH) doors.

Springs

Top pins

Master pin

Bottom pins

Control key

Notched to bypass stop rings.

Plug

Assembled with retainer cap pin

and cap pin spring.
