Schlage ND Series User Manual

Allegion Connect

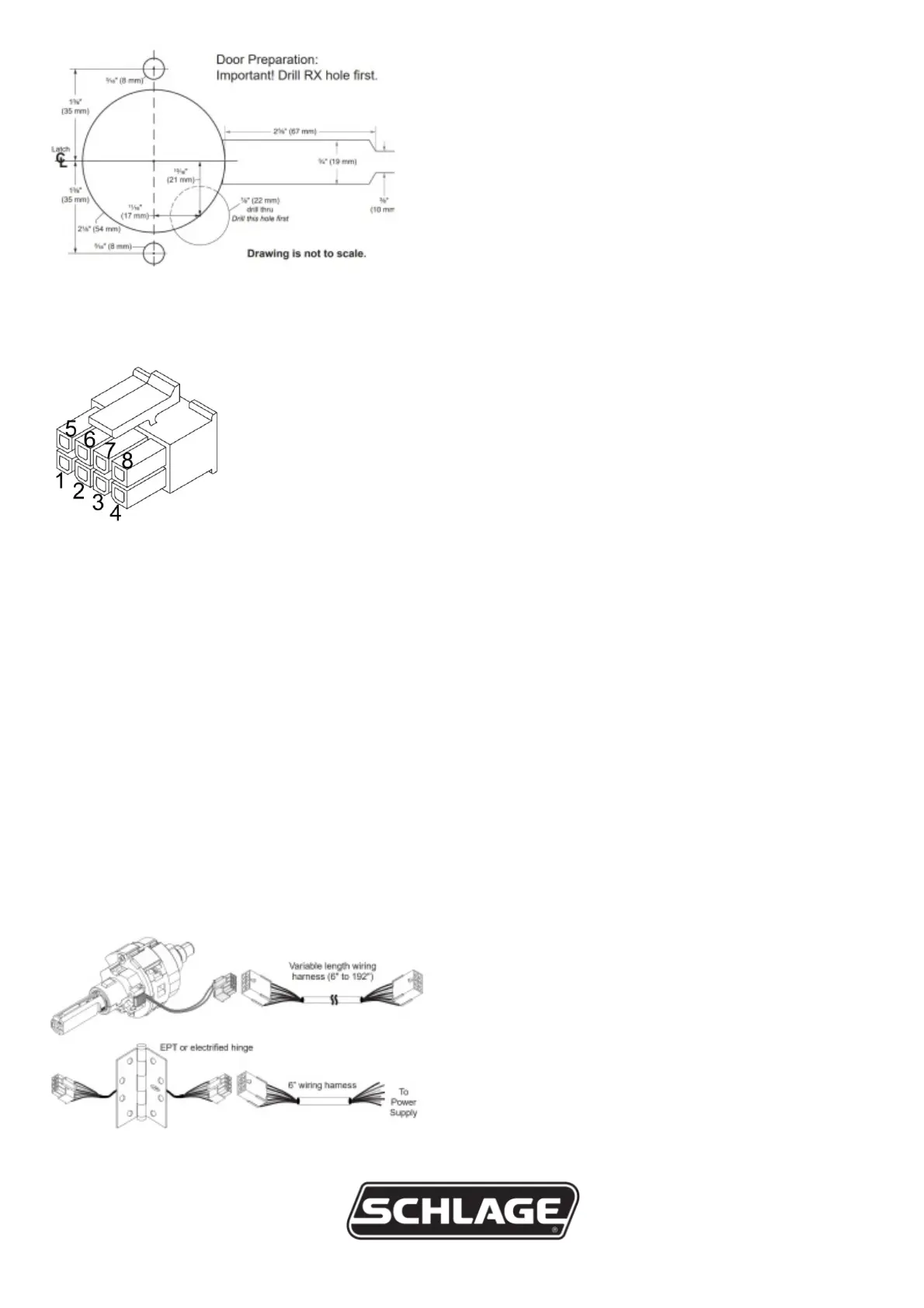

Allegion Connect, a factory-installed Molex® connector system, provides simplified installation and maintenance utilizing quick-connect
harnesses and hinges. Alternatively, the Molex connector may be cut off and the lock installed with traditional wire splicing methods.
WIRE COLOR AND FUNCTION
Pin Color Function
1 Black Power (auto detects GND, +12 or +24 V DC)
2 Red Power (auto detects GND, +12 or +24 V DC)
3 Purple RX NO (normally open)
4 Grey RX NC (normally closed)
5 White RX COM (common for RX)
6, 7, 8 Not Use
Customer Service

Schlage ND Series Specifications

General

Door Thickness	1-3/4" to 2-1/4"
Strike Plate Included	Yes
Function	Classroom, Storeroom
Backset	2-3/4"
Latch	1/2" throw latch
Strike	ANSI 1-1/4" x 4-7/8"
Keyway	Schlage C
Certification	ANSI/BHMA Grade 1
Material	Brass
Applications	Commercial, Institutional
Handing	Non-Handed (field reversible)
Latch Type	Deadlatch
Warranty	3-year limited warranty
Finish	Oil Rubbed Bronze
