80 • Schlage • ND-Series service manual

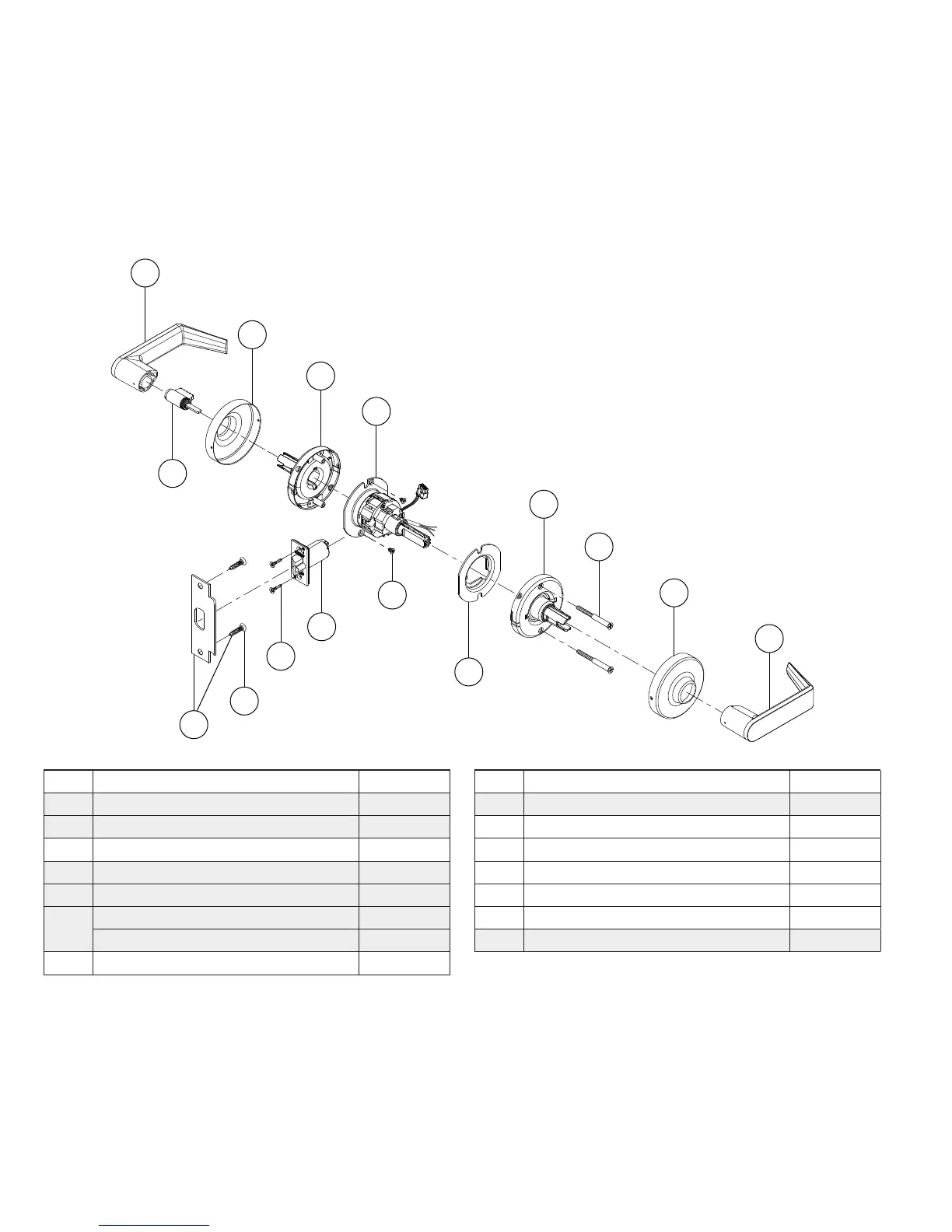

Trim assemblies
Storeroom lock—electrically locked (fail safe) or electrically unlocked
(fail secure) with request-to-exit
ND80EL RX or ND80EU RX**
ND80EL/ND80EUPD RX (shown), ND80EL/ND80EURD RX √, ND80EL/ND80EUGD RX √
A
B
E
H
D
C
K
N
Q
M
S
P
C
J
GG
Letter Description Part number
A Outside Lever—open (cylinder) 03-231
B Inside Lever—closed 03-230
C Rose 03-042
D Outside spring cage—standard N523-218
E Inside spring cage—standard N523-221
H
Chassis, electrically locked 63-184*
Chassis, electrically unlocked 63-185*
J Anti-rotation plate N523-131
Letter Description Part number
K Deadlatch 13-247
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6-pin 23-065
GG Adjustment plate screws N523-240
√ For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see page 98.
* Chassis part number is for reference only.
** For electrified lock details, see Electrified locks on page 105. For RX details, see Request-to-exit feature on page 106.
Designates new parts or assemblies.
