Trim assemblies
Schlage • ND-Series service manual • 81
Institution lock

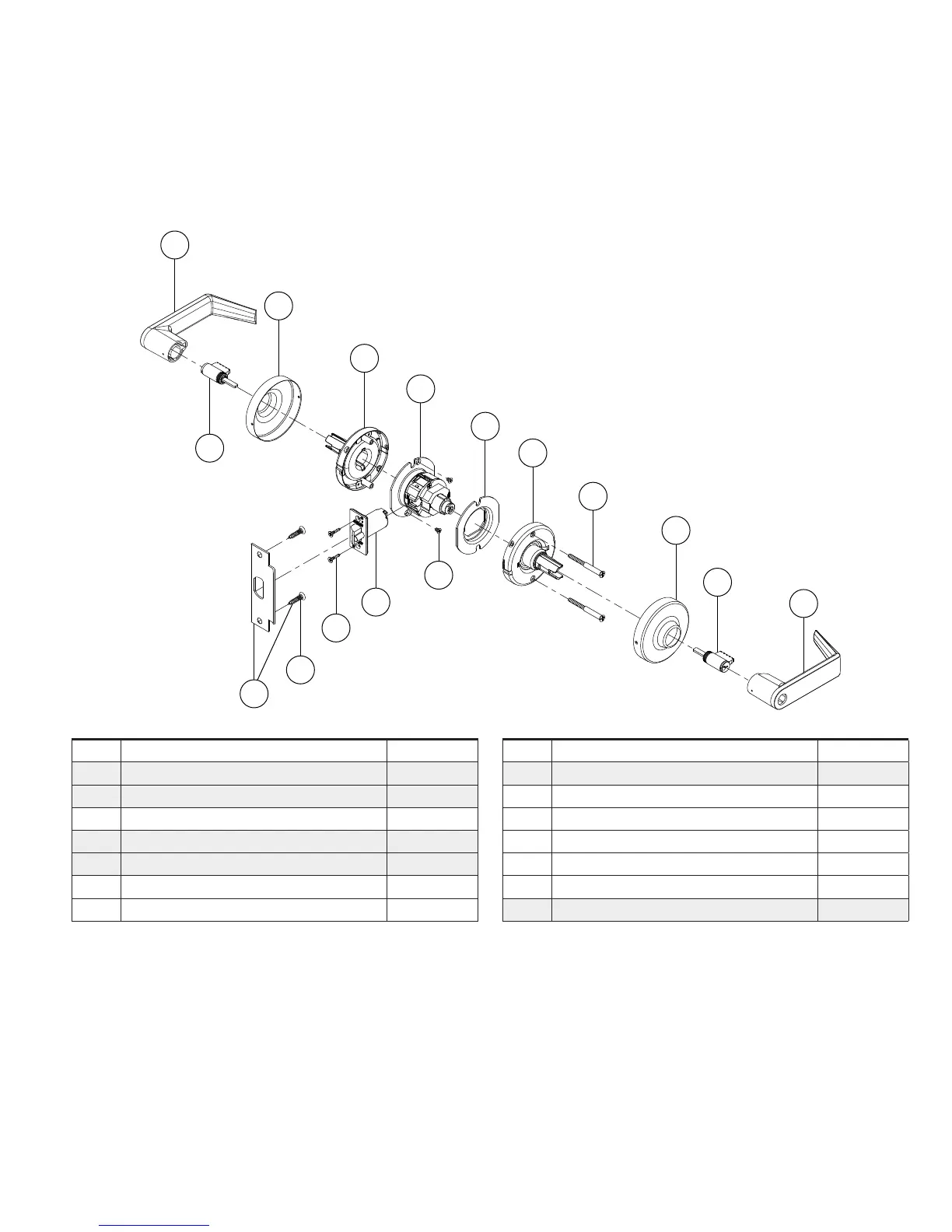

ND82
ND82PD (shown), ND82RD √, ND82GD √
M
K
N
Q
S
C
P
H
D
C
A
J
B
E
S
GG
Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—open (cylinder) 03-231 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—keyed inside except SFIC N523-222 
H Chassis 24088361*
J Anti-rotation plate N523-055
Letter Description Part number
K Deadlatch 13-247 
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
S Cylinder—6 pin 23-065
GG Adjustment plate screws N523-240 
√ For RD (Full Size Interchangeable Core) and GD (SFIC) outside trim configurations, see page 98.
* Chassis part number is for reference only.
 Designates new parts or assemblies.
