Schlage ND85 - Page 81

82 • Schlage • ND-Series service manual

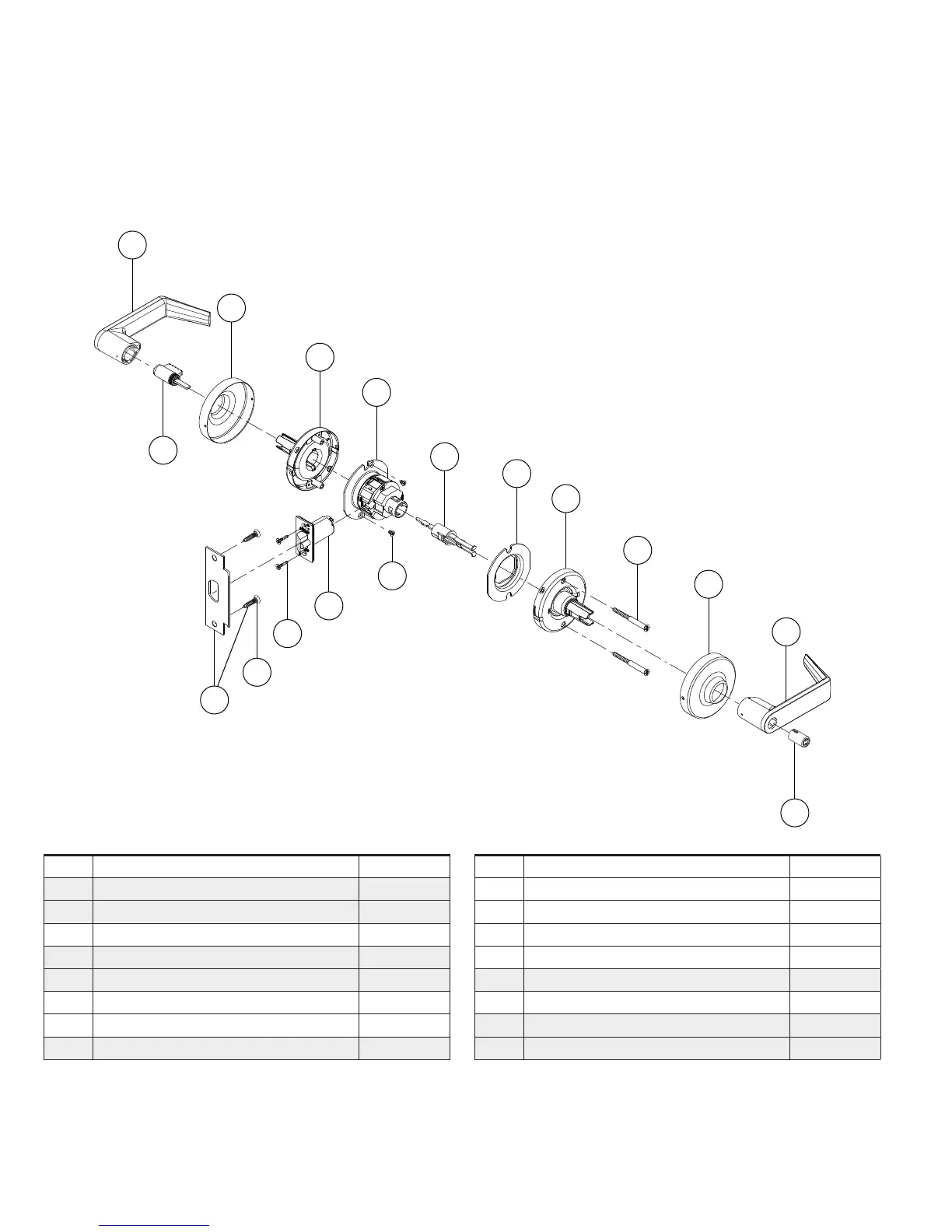

Trim assemblies
Faculty restroom lock
ND85
ND85PD
A
B
C
P
E
J
H
D
K
GG
N
Q
M
S
R
FF
C
Letter Description Part number
A Outside lever—open (cylinder) 03-231 
B Inside lever—open (button) 03-233 
C Rose 03-042
D Outside spring cage—standard N523-218 
E Inside spring cage—standard N523-221 
H Chassis 24088411*
J Anti-rotation plate N523-055
K Deadlatch 13-247 
Letter Description Part number
M Strike assembly 10-025
N Latch screw C603-897
P Mounting screw N523-021
Q Strike screw C603-256
R Plunger—push button N123-087 
S Cylinder—6-pin indicator 23-000
FF Push button with spanner access N523-211 
GG Adjustment plate screws N523-240 
* Chassis part number is for reference only.
 Designates new parts or assemblies.
