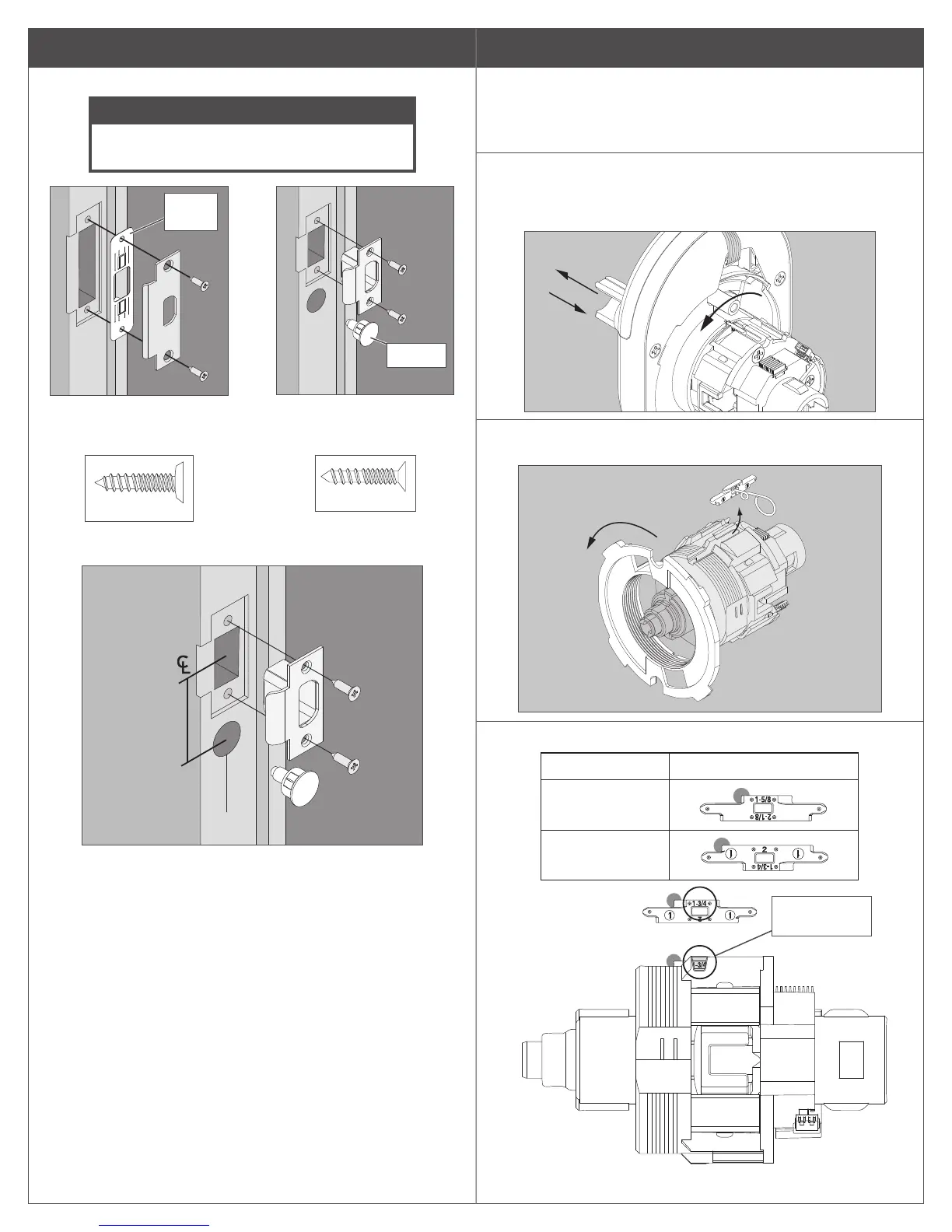

Schlage NDE80 - Door Thickness Adjustment; Install Strike and Magnet Tray Assembly

B Install strike and magnet tray assembly.
Note: If dustbox is included, install rst.
CAUTION
Magnet or magnet tray and included strike must
be installed! DO NOT DISCARD!
Magnet
Tray
ANSI Strike
OR
Magnet
T-Strike
See instructions below for
magnet installation.
Actual Size
Actual Size
2”
(50mm)
Drill a hole C\v” (19 mm) diameter, 1Z\x” (38 mm) deep
Door Thickness Adjustment
L For 1C\v” thick doors, NO ADJUSTMENT IS REQUIRED. Continue
to step 1.
For 1B\,” or 2” thick doors, complete the following door thickness
adjustment steps.
A Remove chassis from outside assembly.
Pull lever post and rotate 10 degrees counter-clockwise until adjustment
plate tabs align with cutouts on assembly, then remove chassis from
escutcheon.
B Remove adjustment plate by rotating counter-clockwise.
Remove door thickness insert using pin wrench.
C Reorient and replace door thickness insert.
Door Thickness Door Thickness Insert
1B\,”
2”
Door thickness
insert channel
Chassis Side View
