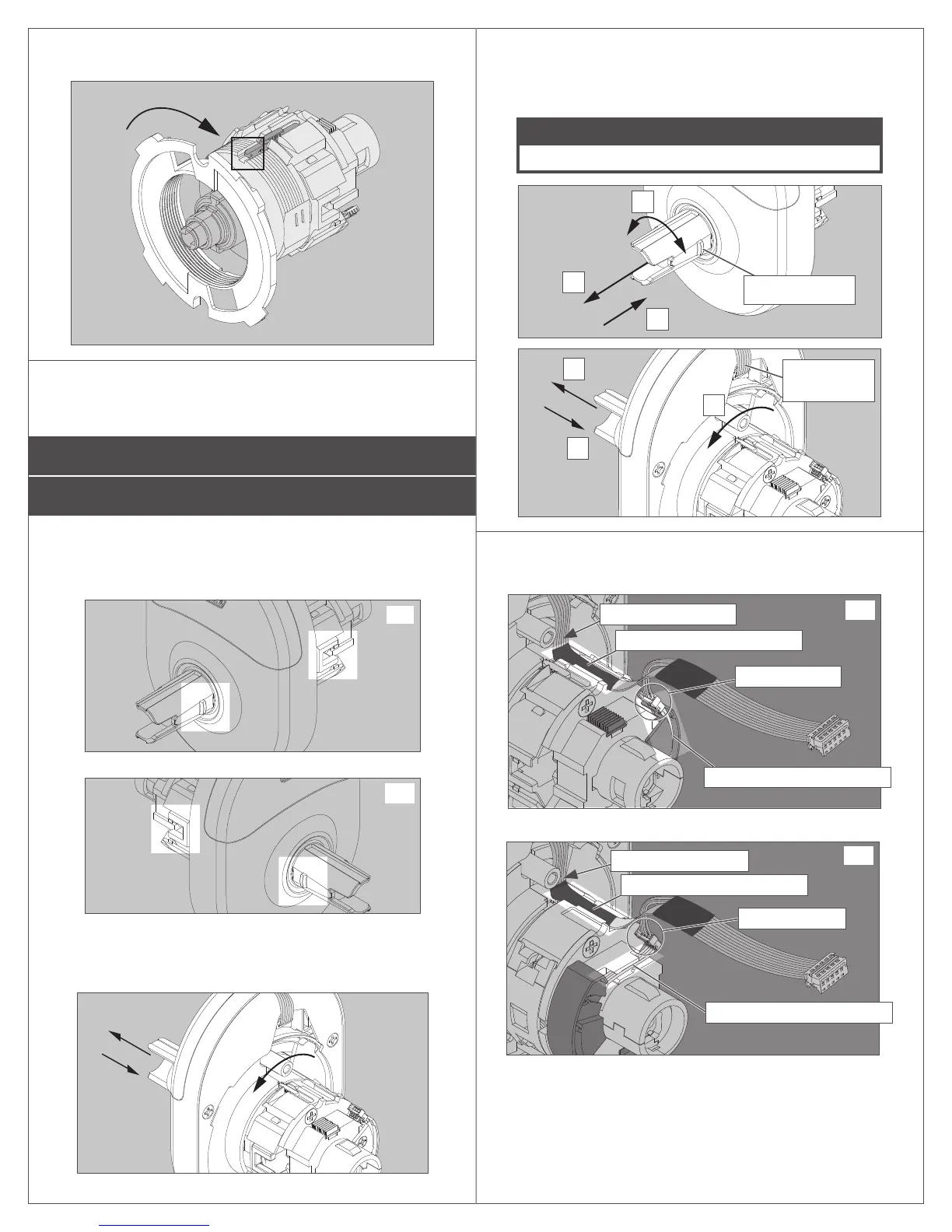

Schlage NDE80 - Install Outside Assembly; Prepare Outside Assembly

D Reinstall adjustment plate.
Tighten until door thickness insert enters notch in adjustment plate.
E Secure chassis in outside assembly.
Continue to next step.
Install Outside Assembly
1 Prepare outside assembly.
1a Check that slide hole on chassis is aligned with lever catch
pin.
If not aligned, remove chassis and reassemble with correct orientation
as shown below.
LH
OR
RH
To remove chassis, pull lever post and rotate 10 degrees counter-
clockwise as shown below until adjustment plate tabs align with cutouts
on assembly.
1b To change handing, pull lever post until it stops, then rotate
180 degrees.
Align lever catch pin and slide hole to latch side. Release lever post.
Assembly will click into place.
CAUTION
Do not route ribbon cable before rotating chassis!
Lever Catch Pin
1
2
3
Do not route
ribbon cable!
1
2
3
1c Connect chassis cable. Route cables.
The cable should be routed on top of the chassis! Connect cable from
outside assembly to connector in chassis.
Push and tuck cable.
Route cable in plastic channel.
Route cable in metal channel.
LH
Connect cables.
OR
RH
Push and tuck cable.
Route cable in metal channel.
Connect cables.
Route cable in metal channel.
Tuck connected chassis cable into appropriate channel.
