PRODUCT DESCRIPTION
30.30.01.00174/06 www.schmalz.com EN | 21

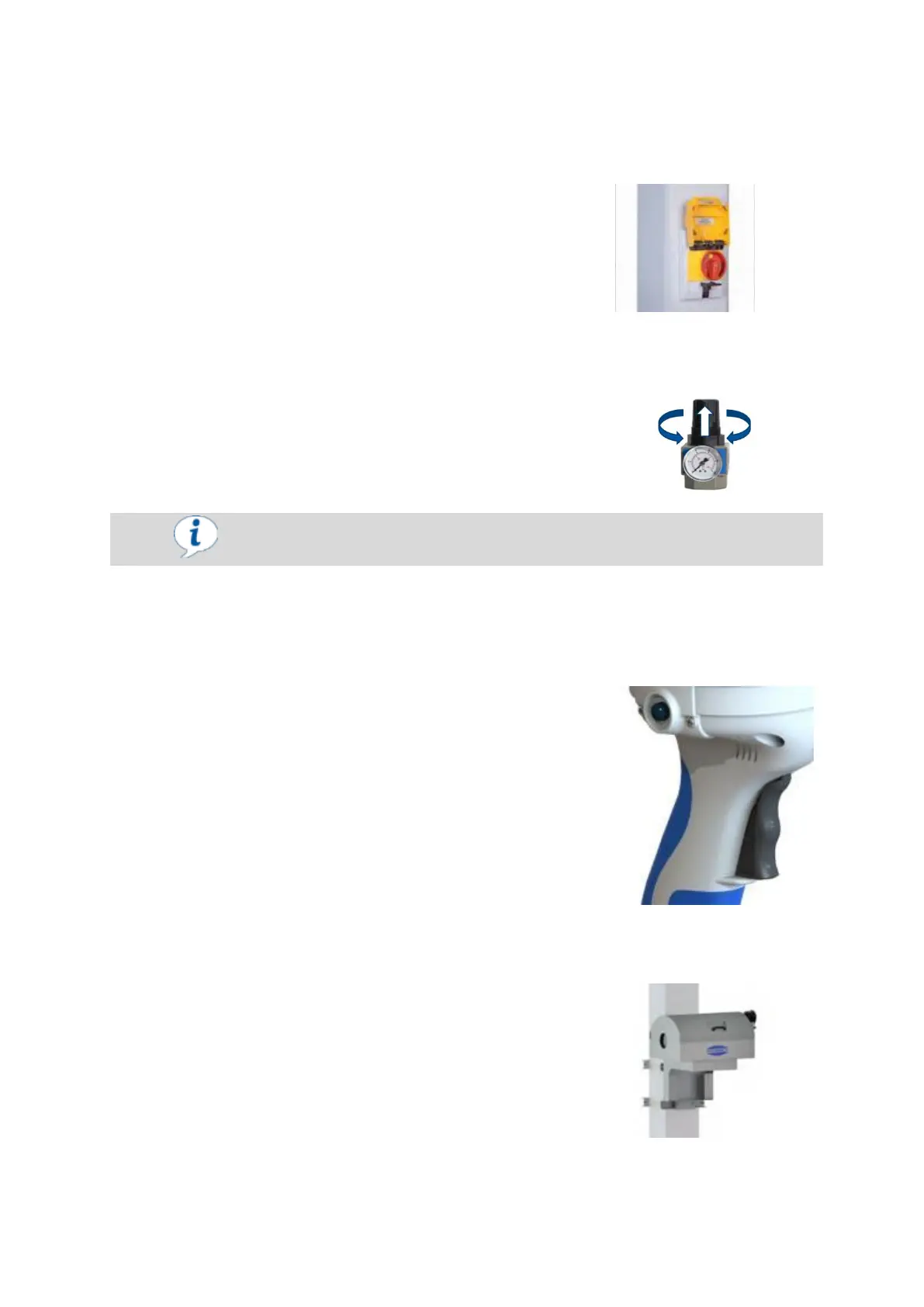

2.10.2 Motor-protection switch (MSS)
2.10.3 Pressure-reduction valve with shut-off valve
To set the optimum operating pressure, lift up the black cap and rotate in the
“plus(+) or “minus” (-) direction to increase or reduce the pressure
2.10.4 Radio remote control (SRC)
2.10.5 Blower console
The motor-protection switch is used to switch the electrical vacuum
generation on and off and provides overvoltage protection. It can be
integrated into the Schmalz crane column without the need for
complicated wiring and can be optionally locked.
The pressure-reduction valve is used to set optimum operating
pressure for the ejector. It also has a shut-off valve for switching the
customer-supplied compressed air off manually.
The radio remote control (SRC) can be used to switch the lifting
device’s pump on and off at the control handle. This feature is
integrated into the control handle.
The power for switching the vacuum pump of the vacuum tube lifter
JUMBOFLEX on and off is generated by an induction generator.
This is not possible with pneumatic vacuum generation.
Retrofitting radio remote control requires replacement of the
entire operator handle.
For more information, see the separate operating instructions supplied
(radio remote control SRC).
The blower console is used for the horizontal attachment of the blower
and silencer box to crane columns or hall struts.
