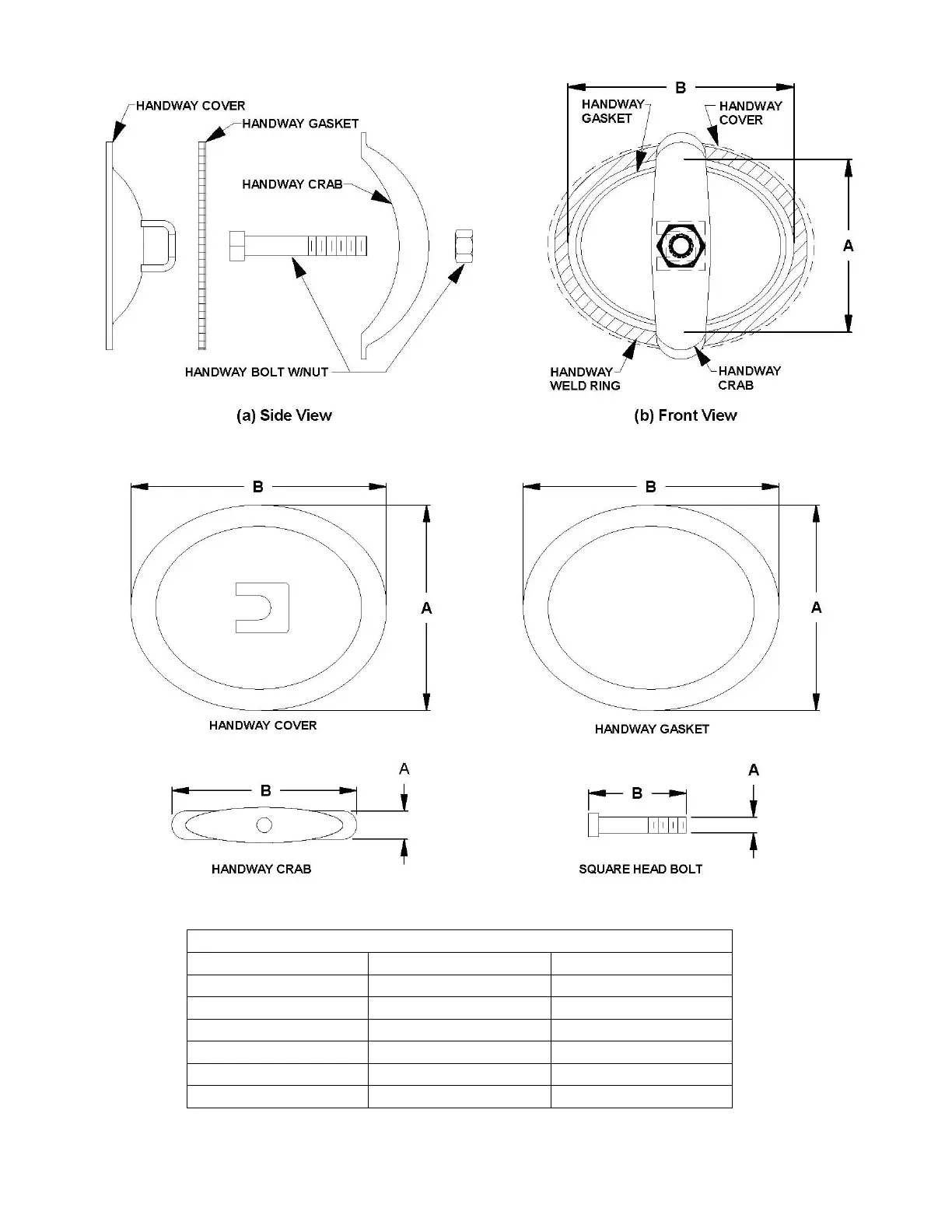

Figure 6.3 (a) – Handway Assembly
Figure 6.3 (b) – Handway Components
6” x 8” Handway Dimensions
Component
A
B
Weld Ring
6-5/8”
8-1/2”
Handway Cover
7-5/8”
9-3/4”
Handway Gasket
7-3/4”
9-3/4”
SureFit™ Gasket
8-1/16”
10-5/16”
Handway Crab
2-3/8”
8-3/4”
Square Head Bolt
3/4”-10 UNC
4-1/2”
Table 6.3 (c) – Handway Component Dimensions
