STEUEREINHEIT AIRBASIC 2 –GEBRAUCHSANWEISUNGEN
AIRBASIC 2 CONTROLLER – USER MANUAL
29
2. Operation
The AirBASIC2 controller controls the operation of the air compressor in two modes, using a pressure transducer
or a pressure switch mounted in the compressor. The operation mode depends on the compressor model in
which it is installed and it is set through a jumper located on the rear side of the controller.
2.5. AirBASIC2 control panel
The Control Panel is mounted on the compressor. It is used to operate the compressor and observe system
status by using the LCD display, status LED indicators and buttons.
The Control Panel displays a comprehensive overview of the compressor status and allows access to operational
parameters.

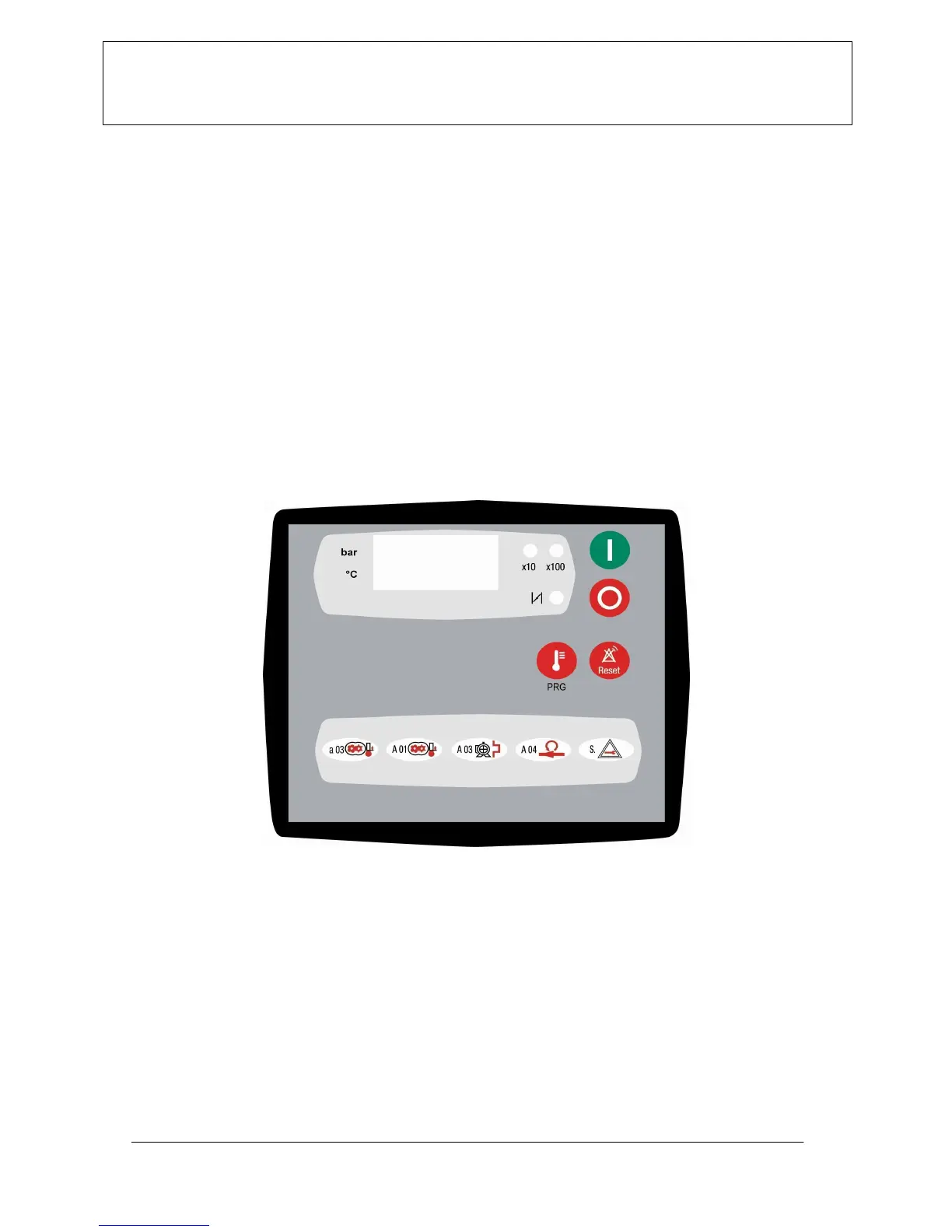

AirBasic2 control panel
• Display: 3 digits / 7 segments
• Lamps: 3 green LEDs
• Controls: 4 push-buttons
