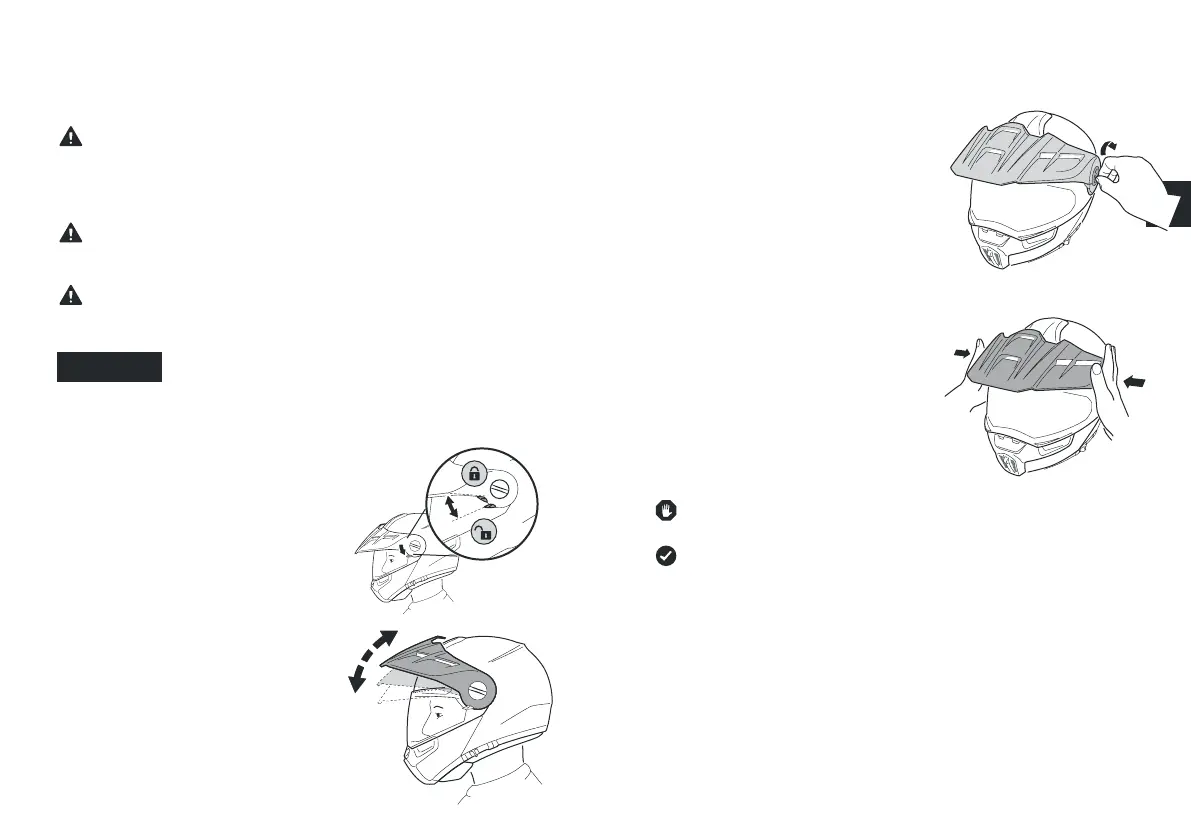

DISASSEMBLY
Turn the bayonet fastenings on both sides to
unlock the shield. Then you can remove the
shield from the mechanism.
ASSEMBLY
Use both hands to guide the snap-in pins on
the shield into the slots provided for them in
the visor mechanism, then close the bayonet
fastening.
Note:
Check that the shield is rmly seated before you next use it.
Tip:
You can also use the helmet without the shield.
The fastening pins included in the scope of the delivery can be inserted
into the now-visible shield mechanism, after the shield has been
removed.
Furthermore, it is possible to use the helmet without the face shield but
with the shield. For this combination, SCHUBERTH recommends that
you wear safety glasses.
Caution:
Never ride without making sure that the chinstrap is correctly fastened
and adjusted and properly positioned. If the chinstrap is not correctly
adjusted or fastened, the helmet could be displaced in the event of an
accident.
Caution:
Closing the comfort pad of the chinstrap alone will not provide
adequate protection. The chinstrap must always be fully fastened.
Caution:
Never open the chinstrap while riding.
11. SHIELD
The screen designed in SCHUBERTH’s own wind tunnel oers protection
from the sun’s rays and from rocks.
ADJUSTING THE SHIELD POSITION
The shield can be xed into one of three
dierent positions as required.
1. Move the positioning lever on both
sides toward the bottom.
2. Adjust the shield to the desired
position.
3. Return the positioning lever back to its
starting position.
