WHEEL STANDARDS
Center Section Stability

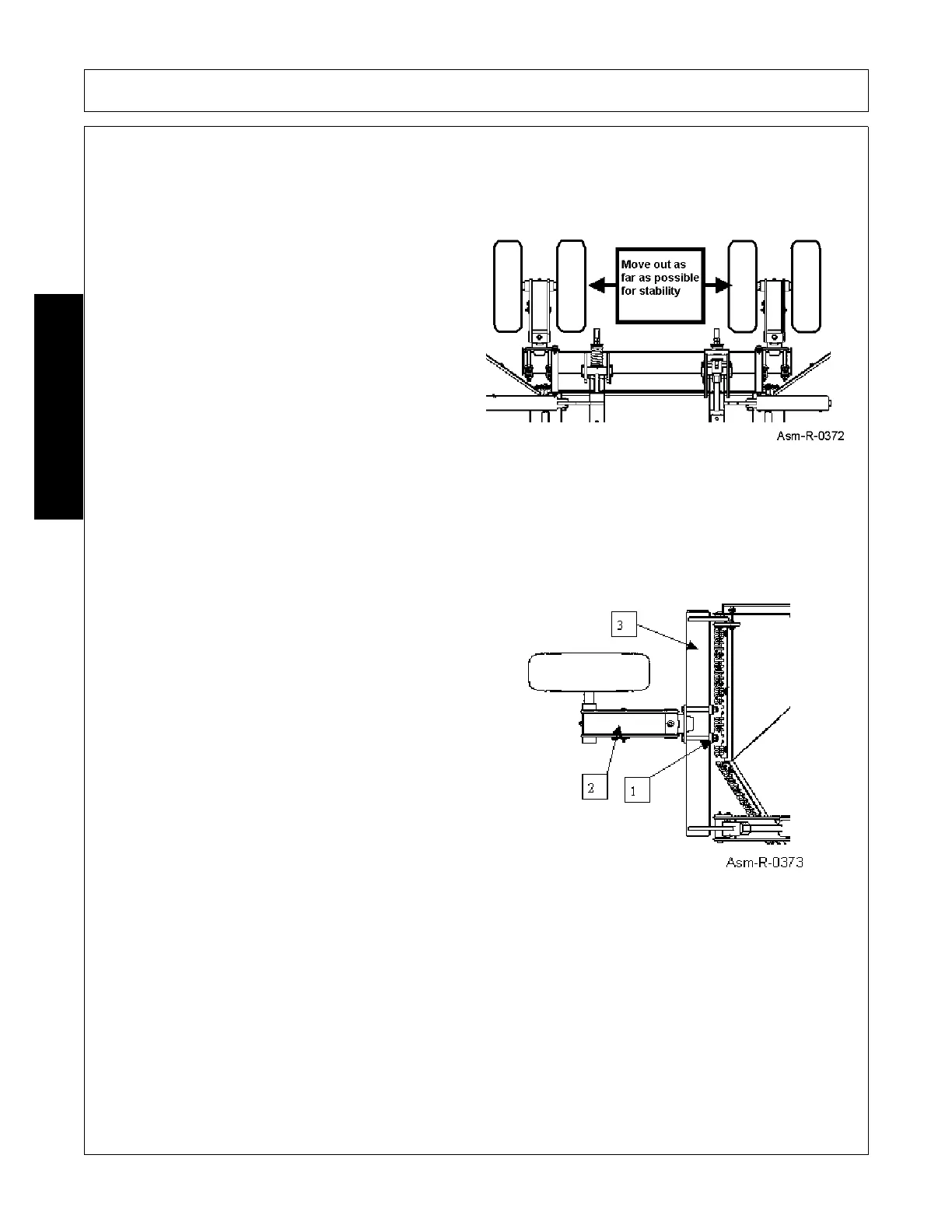

For transport stability the center section wheel
standards should be moved outwards as far as
possible.
Tire Spacing For Row Crop
The FX-520 has adjustable wheel standards so it
can accommodate a variety of row spacing. Before
adjusting any wheel arms ensure the cutter is safely
blocked up so that the weight is off the wheel arm
you intend to adjust. To adjust the wheel arm (2)
along the wheel standards (3), loosen the retaining
tabs (1) then slide the wheel arm to its required
position. Retighten the retaining tab.
