OPERATION
6.3 Leveling Wing
1. The center section deck height should be set
before adjusting the wing sections. Make sure
the tractor is completely shut down, the cutter is
completely lowered, and the cutter and tractor
are secured in position.
2. To set the wing section height, adjust the 1-1/4”
threaded rod on the wing adjustment assembly
to level the wings of the cutter with the center
section.

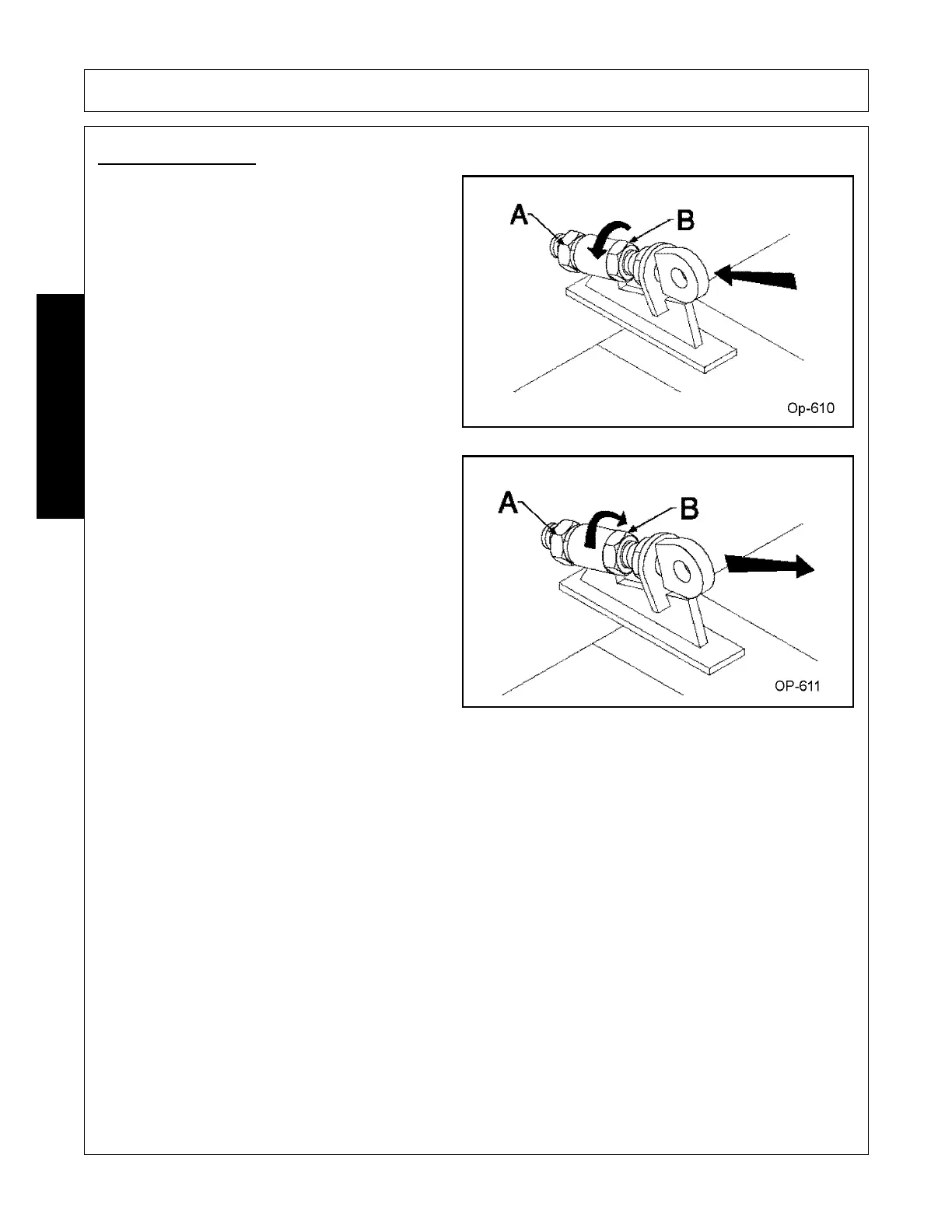

3. To raise or lower wing, back off nut “A” first then
adjust nut “B”. Retighten nut “A” and lock
washer after adjustment. To lower the wing,
retract the threaded rod. To raise the wing,
extend the threaded rod.
4. After the wings are set at the desired position,
retighten nut “A” to maintain height settings.
