OPERATION

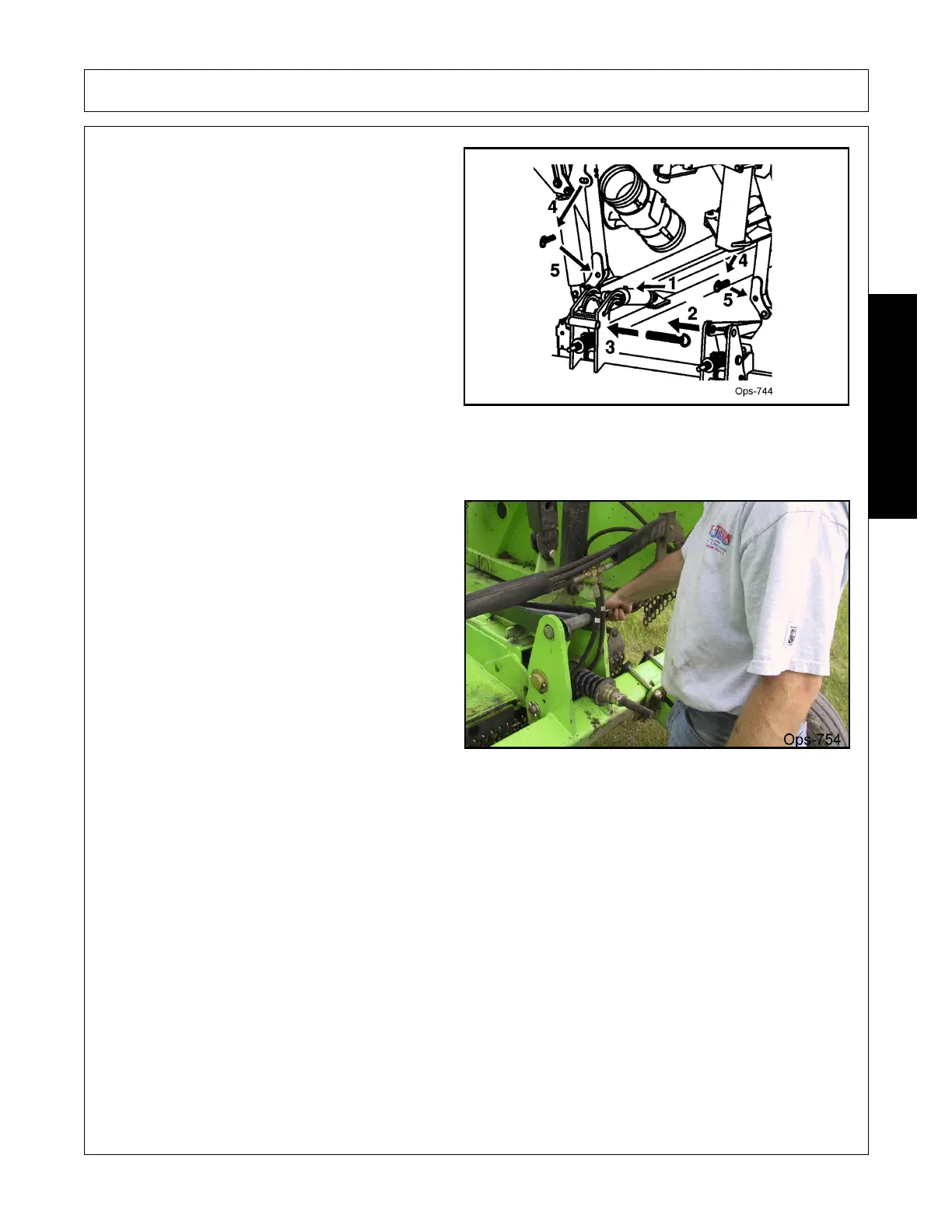

1. Remove the center lock pin from its storage
location.
2. Insert the lock pin into the lock up hole on the
wheel standard and secure with lynch pin. If the
lock bar holes do not line up with the wheel
standard, the main lift cylinder is not fully
extended.
3. Remove the wing lock pins from their storage
locations.
4. Insert the lock pins into the lock up holes in lock
tubes and secure with lynch pin. If the holes do
not line up, the cylinders are not fully retracted.
5. Retract the main lift cylinders to bring wing tires
within 3-meter transport width. The slot on the
center section allows the wing cylinders to
retract, pulling the tires inward.
NOTE: Depending on the cut height, the depth stop
on the center section may have to be adjusted to
bring the wing tires within the required 3-meters.
Secure the center section at a safe transport height
by inserting the transport lock pin. Secure the cutter
wings in the raised position with the transport lock
pins.
