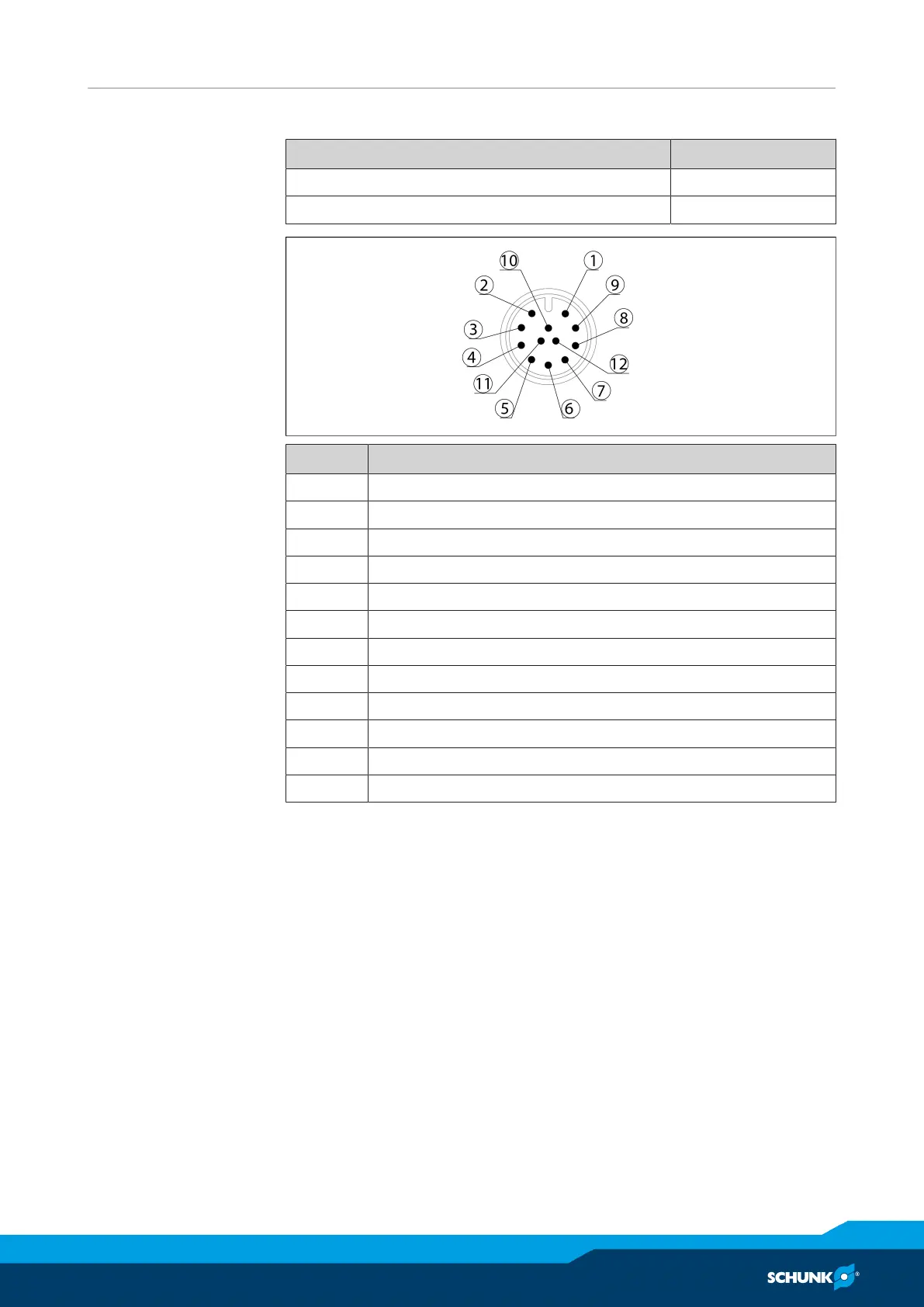

6.1.2.5 MSA111C-DQ absolute measuring system
Description MSA111C-DQ
Operating voltage [VDC] 10 - 30
Distance reading head - magnetic tape [mm] 0.05 - 0.2
Pin Configuration
1 Vcc
2 Tsens+
3 GND
4 TXN
5 TXP
6 N.C.
7 RXN
8 RXP
9 DÜA
10 Tsens-
11 N.C.
12 DÜB
