Assembly
88
05.00 | ELB | Montage- und Betriebsanleitung | en | GAS 376437

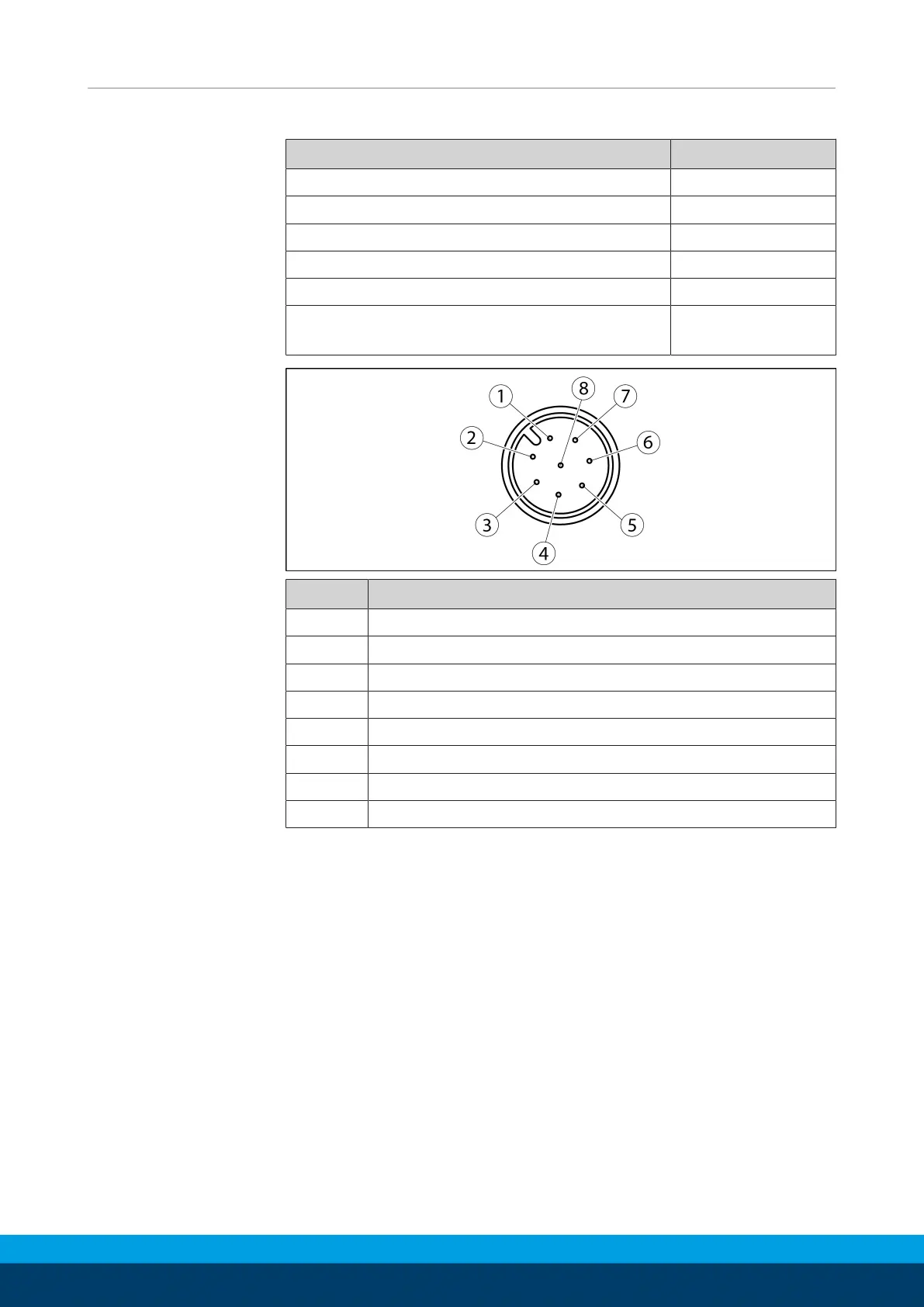

6.1.2.6 TTK70 absolute measuring system
Description TTK70
Operating voltage [VDC] 7 - 12
Ausgangssignal Hiperface, Sin, Cos
Signal amplitude [Vss] 1 ± 10 %
Offset sine/cosine [V] 2.5 ± 0.5 %
Signal period [µm] 1000
Distance between reading head and
measuring tape [mm]
0.1 - 0.2
Pin Assignment
1 SIN-
2 SIN+
3 COS-
4 COS+
5 Enc data+
6 Enc data-
7 GND
8 VCC encoder
