Assembly
05.00 | ELB | Montage- und Betriebsanleitung | en | GAS 376437
89

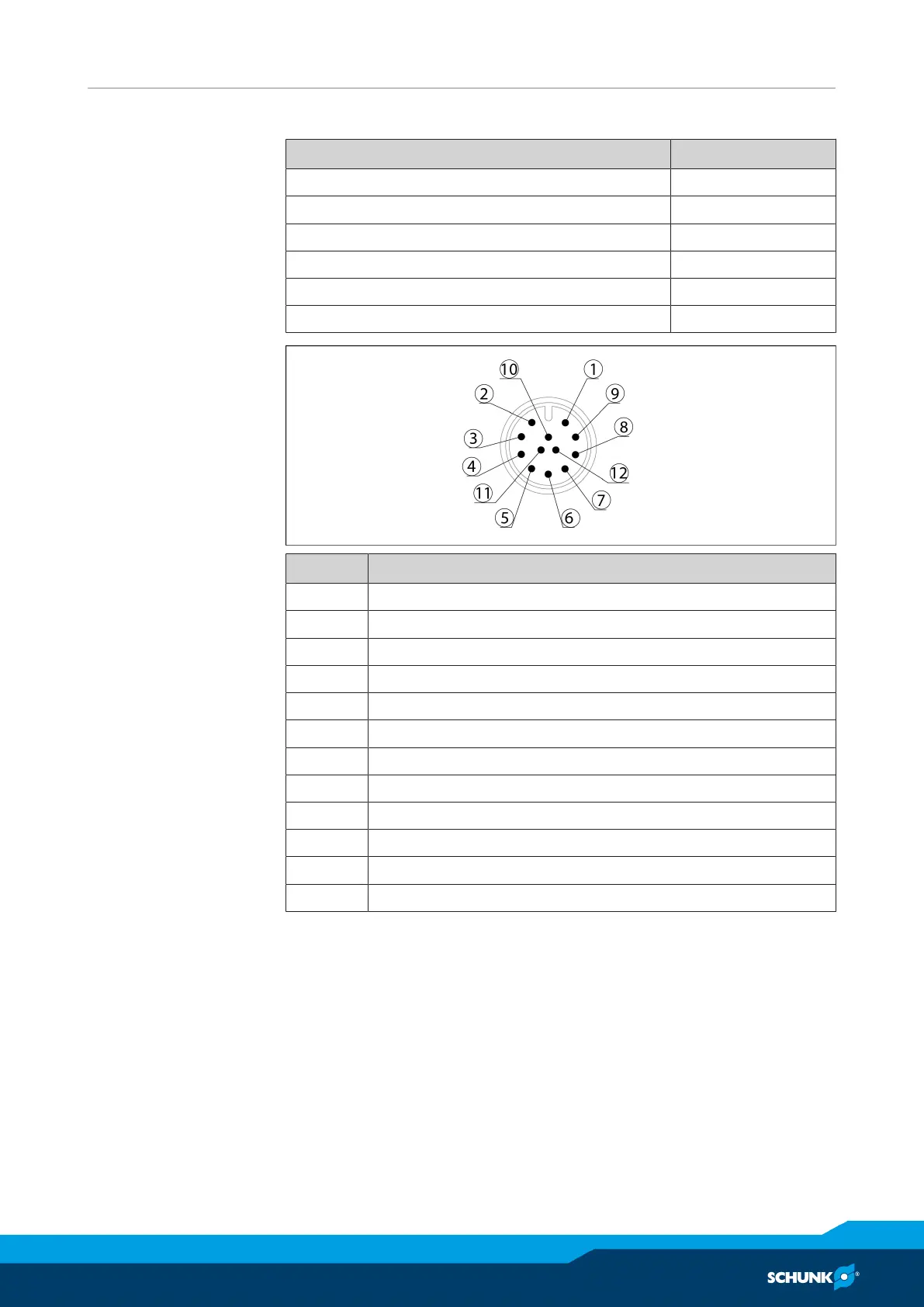

6.1.2.7 MSA111C absolute measuring system
Description MSA111C
Operating voltage [VDC] 4.5 - 30
Output signal SSI, Sin, Cos
Signal amplitude [Vss] 1 ± 10%
Offset sine/cosine [V] 2.5 ± 0.5%
Signal period [µm] 1000
Distance, reading head – measuring tape [mm] 0.1 - 0.2
Pin Assignment
1 adjust
2 D+
3 D-
4 T-
5 Us+
6 SIN-
7 SIN+
8 COS-
9 COS+
10 Config
11 T+
12 GND
