- 25 -
6.6.2 Zone Configuration – Luminous (high intensity) Heaters
JUMPER IN POSITION 2 (P2): One two-stage zones + up to six single-stage zones
The jumper pins P1 to P5 are located inside the controller cover to the right side of the battery. The
location of the jumper in P1 … P5 determines the quantity of single-stage and two-stage zones.
With the jumper in position P2, one zone is two-stage, and the balance of the zones are single
stage. Eight relay switches are supplied with the controller to switch line voltage to the zone
exhaust fans (field supplied) and to the zone transformers (field supplied). One additional field
supplied relay switch (P/N: JS-0568-CC) is required to power the exhaust fan for the two-stage
zone.
The fan for the two-stage zone is controlled by the controller fan outputs 10-11. Fans for the single-
stage zones are controlled by the heater outputs 24-35. Single-stage zone exhaust fans are wired
in parallel to the heater zone transformer.
The 120V/24Vac zone transformer is ‘sized’ to provide sufficient power to all heaters in the zone:
40VA for first heater + 20 VA for each additional heater. A separate transformer is required for
each of the Low- and High-stage zones in two-stage Zone 1.

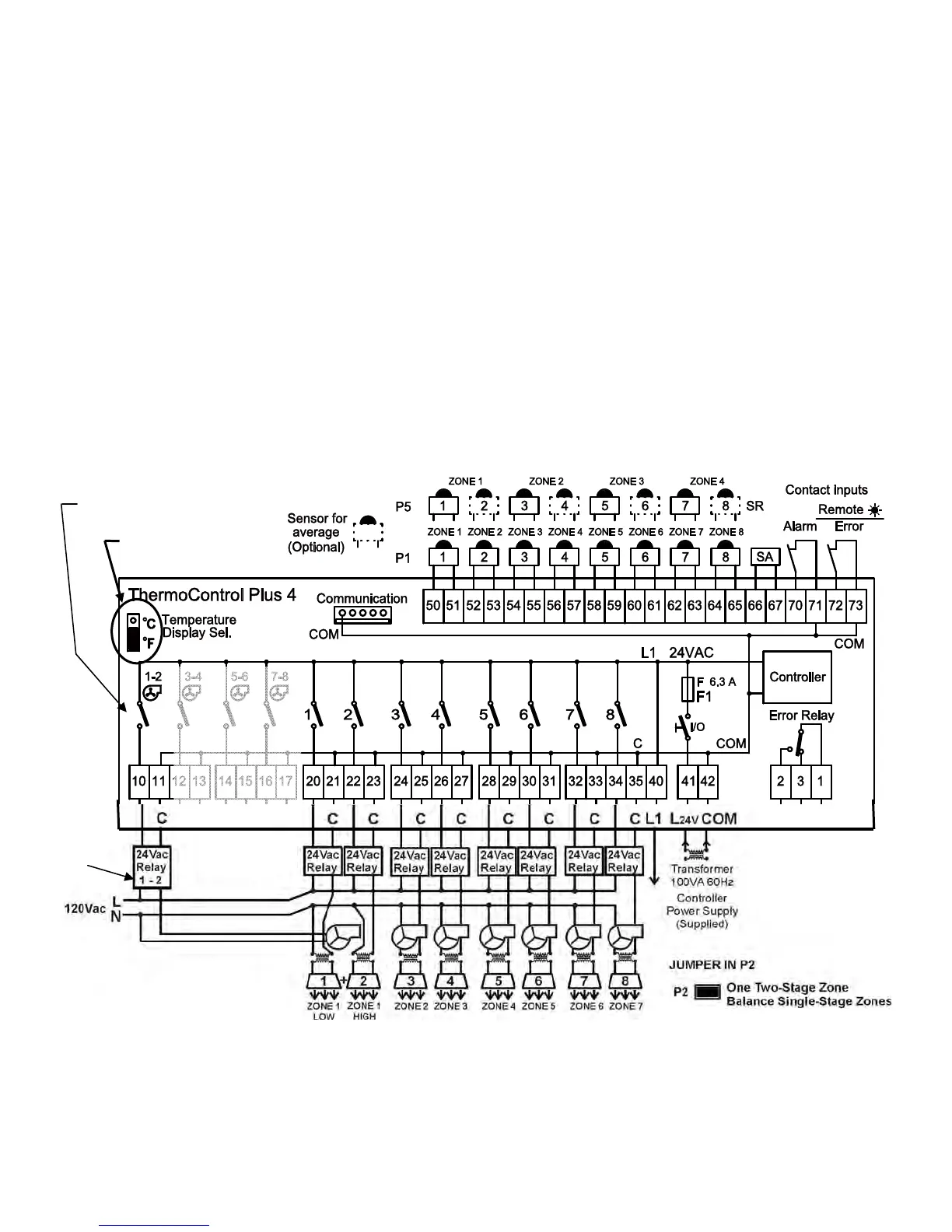

Refer to the diagram below, and the wiring diagram “Luminous Heaters – Two-Stage Zone”.
USE FAN
OUTPUTS
FOR TWO-
STAGE ZONE
ONLY
Only use fan outputs
for two-stage zone(s)*
Error Output
Jumper Pins are located
inside the controller to the
right side of the battery
Eight relays
supplied
Zone exhaust fans
(field supplied)
dditional relay for fan
(field supplied)
To Next Page
