Schwank ThermoControl Plus 4 User Manual

- 33 -

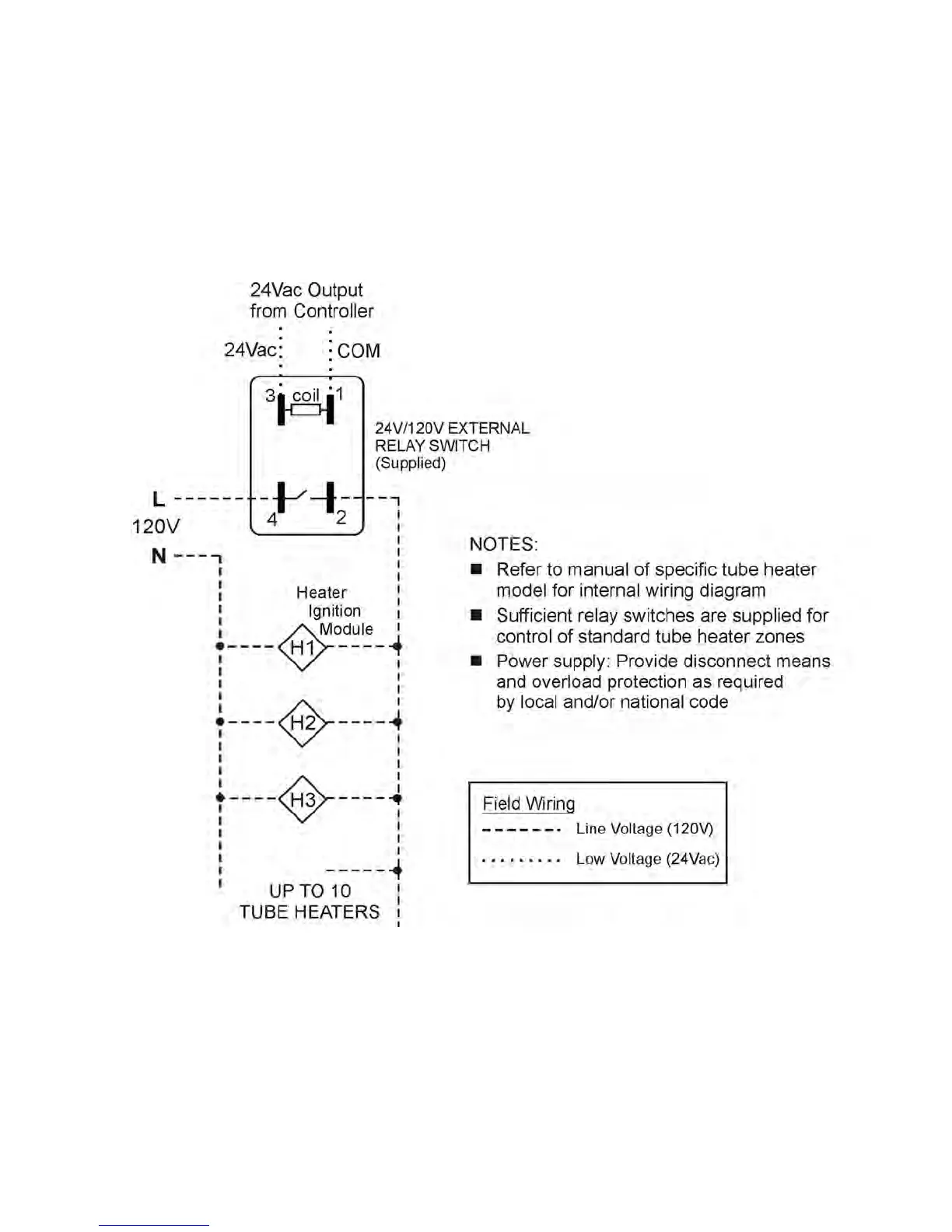

8 WIRING DIAGRAMS - ThermoControl Plus 1, 2, 4
8.1 Standard Tube Heaters:
 Single-stage zone; 1-8 Zones
 Two-stage zones; 1-4 Zones (refer to section 5 and 5.2)
 Wire each of the low- and high-stage zones as below
 Jumper position and controller programming determine two-stage operation
