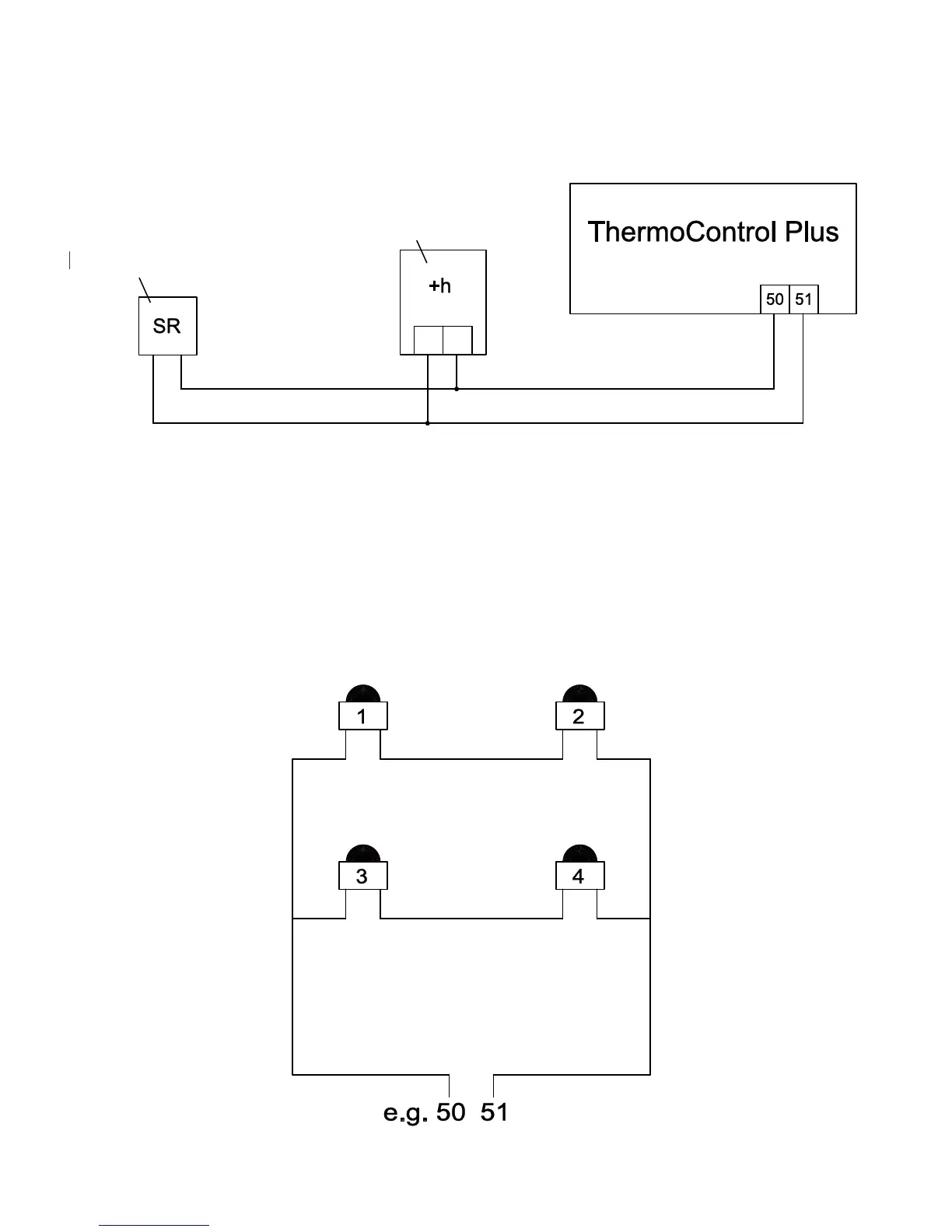

8.5 Wiring diagram, accessories
Option 1: Override Button
NOTE: For humidity control (steel storage facilities, etc.) a humidity sensor can be connected in
parallel to the SR to operate the heaters if humidity rises above humidity set-point even
though temperature set-point may be satisfied.
Other inputs such as coin-operated equipment can also be connected in parallel to the SR.
Option 2: Average temperature determination,
Four SR sensors
IR / Ambient
Temperature Sensor
Override Button
(or other override input)
