Max i mum Gross Weight 1750 pounds
For ward CG limit sta tion 95.0
Aft CG limit sta tion 101.0
Note
: Da tum line is 100.0 inches for ward of ro tor
cen ter line.
Lat eral CG lim its: +4.0 to -2.5 (see Fig. 2-2).
Plus (“+ ”) is right of cen ter line, mi nus (“-”) is left of cen ter line of
he li cop ter when view ing for ward (see Fig. 2-2).
Note
: Lat eral da tum line is the cen ter line of the he li cop ter
through the main ro tor.
Limitations
SCHWEIZER
Model 269C-1 Helicopter
2-7. WEIGHT AND CG LIM I TA TIONS
Pilot's Flight Manual
2-5

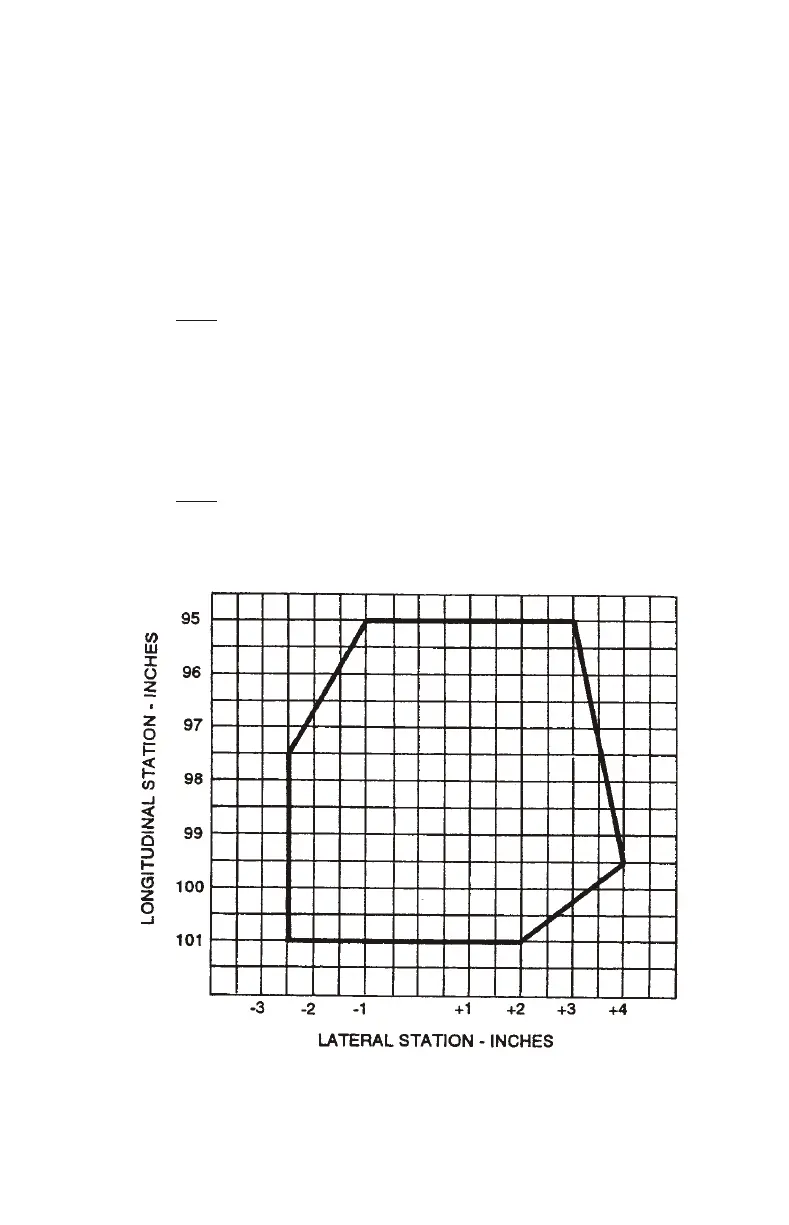

Fig ure 2-2. Cen ter-of-Grav ity En ve lope
Reissued: 16 Jan 2019
FAA Approved
