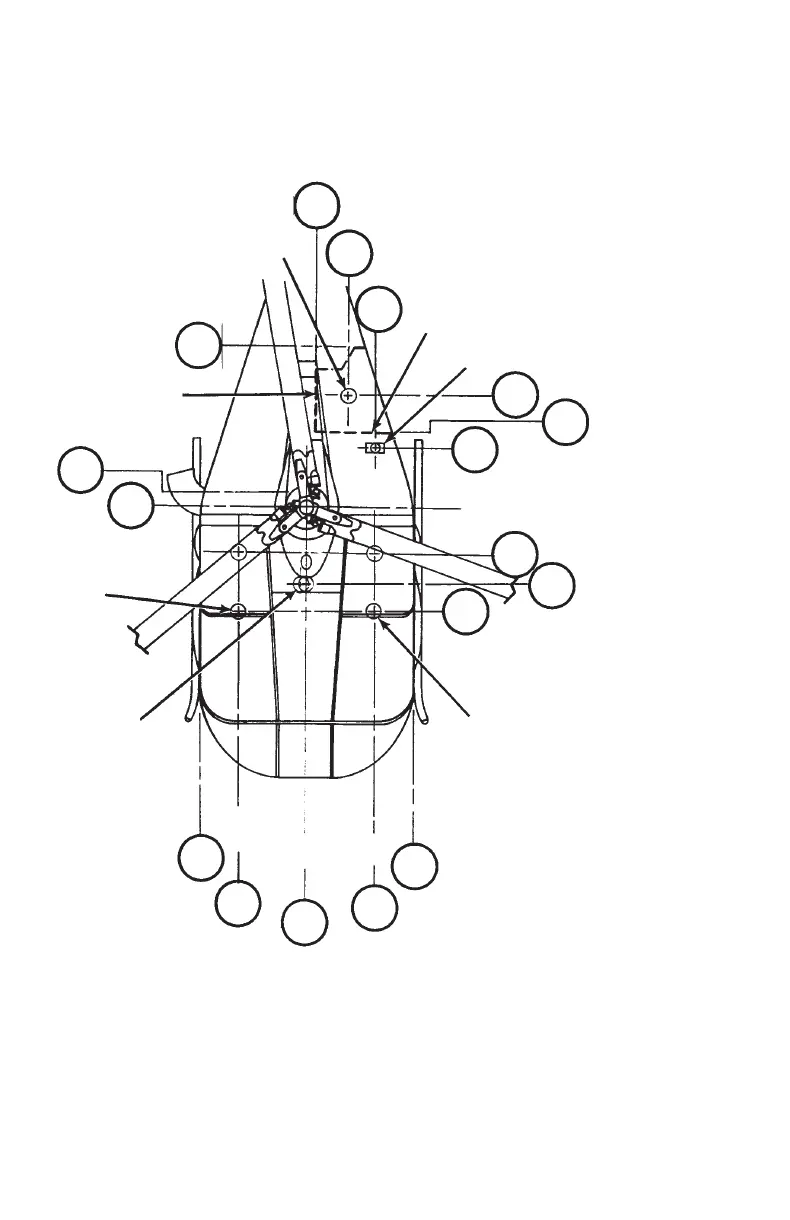

Figure 6-1. Balance Diagram (Sheet 2 of 2)
Weight and Balance
Pilot's Flight Manual
Schweizer RSG, LLC.
Model 269D Helicopter
6-4
R
eissued: 16 Jan 2019
B.L.
2.23
L.
B.L.
13.23
L.
B.L.
21.12
L.
B.L.
34.0
L.
B.L.
21.50
L.
0.0
B.L.
23.75
R.
B.L.
34.0
R.
STA
136.0
STA
104.2
STA
100.0
STA
114.4
STA
125.0
STA
117.0
STA
84.0
STA
78.6
STA
68.6
INBD FACE
BAGGAGE
COMP.
(REF)
CG RIGHT SEAT
CG SEAT
(R.B.L. 1.25
CG LEFT SEAT
COPILOT
C/L
HELICOPTER C/L
&
C.G. FUEL CELL
(LAT.)
PILOT
C/L
STOWAGE
AREA
CG ENGINE
OIL TANK
FWD FACE
BAGGAGE COMP.
(REF)
CG BAGGAGE
CENTERED LOAD
(REF)
CG FUEL CELL
(LONG.)
NOTES: BUTTLINES ARE MEASURED IN INCH INCREMENTS FROM HELICOPTER CENTERLINE. FOR LATERAL FUEL CG REFER TO FIG. 6-7
