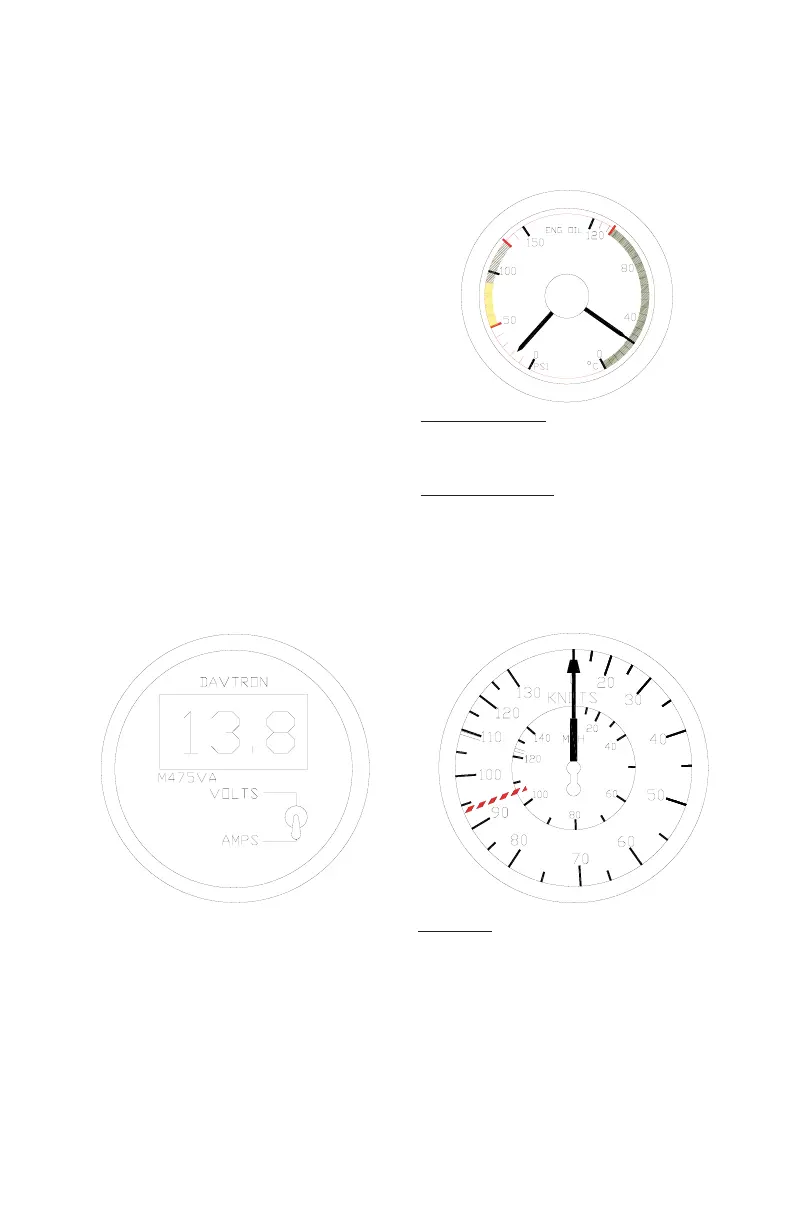

Figure 2-4. Instrument Markings (Sheet 1 of 2).
Limitations
Schweizer RSG, LLC.
Model 269D Helicopter
2-11. INSTRUMENT MARKINGS (Fig. 2-4)
Pilot's Flight Manual
2-13
R
eissued: 16 Jan 2019
ENGINE OIL TEMP/PRESS
VOLTS/AMPS AIRSPEED INDICATOR
AIRSPEED:
RED LINE AT 108 KNOTS (124 MPH) AND
RED & WHITE (BARBER POLE) AT 94 KNOTS
(108 MPH)
ENGINE OIL TEMP:
RED LINE AT 107°C
GREEN ARC-0TO107°C
ENGINE OIL PRESS:
RED LINE AT 50 AND 130 PSI
YELLOW ARC - 50 TO 90 PSI
GREEN ARC - 90 TO 130 PSI
FAA Approved
