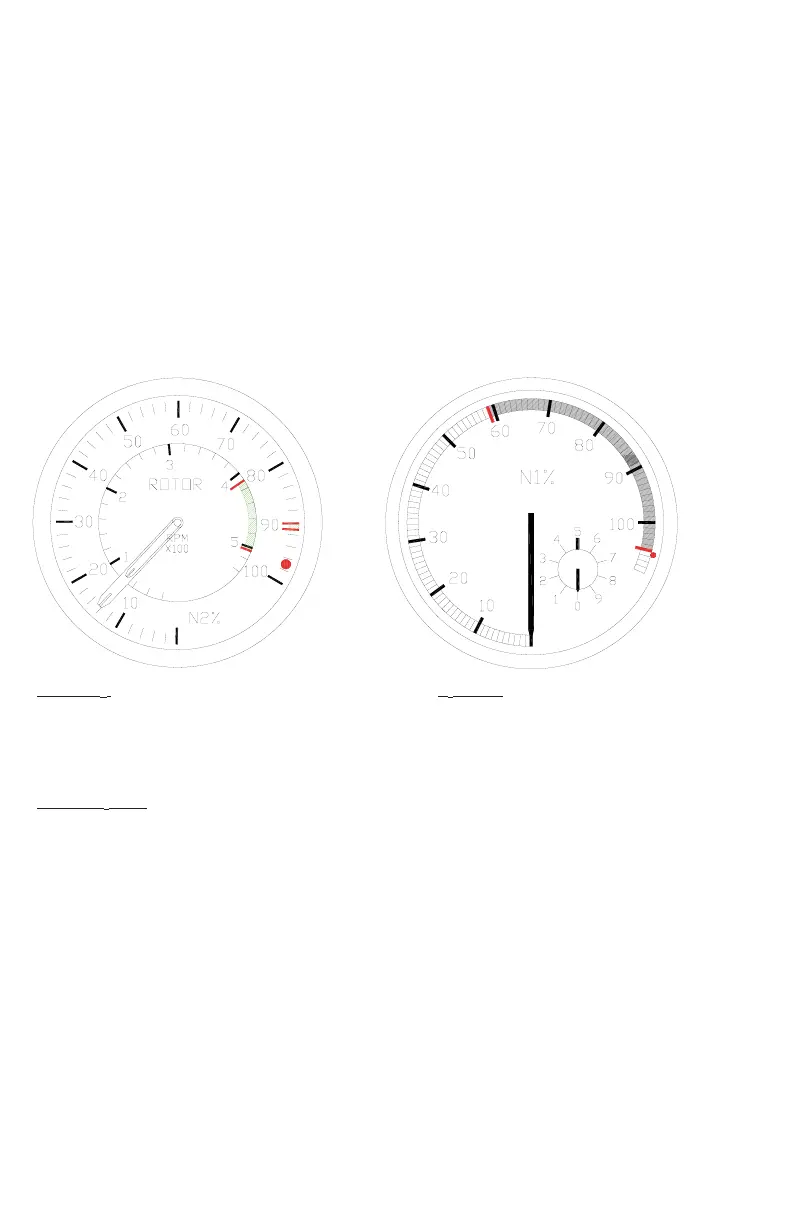

Figure 2-4. Instrument Markings (Sheet 2 of 2).
Limitations
Pilot's Flight Manual
Schweizer RSG, LLC.
Model 269D Helicopter
2-14
R
eissued: 16 Jan 2019
ENGINE/ROTOR TACHOMETER N
1
TACHOMETER
ROTOR N
R
: N
1
% RPM:
RED LINE AT 410 AND 504 RPM RED LINE AT 59% AND 105%
GREEN ARC - 410 TO 504 RPM GREEN ARC - 59% TO 105%
RED DOT AT 106%
ENGINE N
2
RPM:
RED DOT AT 97.4% (TRANSIENT OVERSPEED, 3 SEC)
RED LINE AT 90% AND 91%
GREEN ARC - 90% TO 91%
FAA Approved
