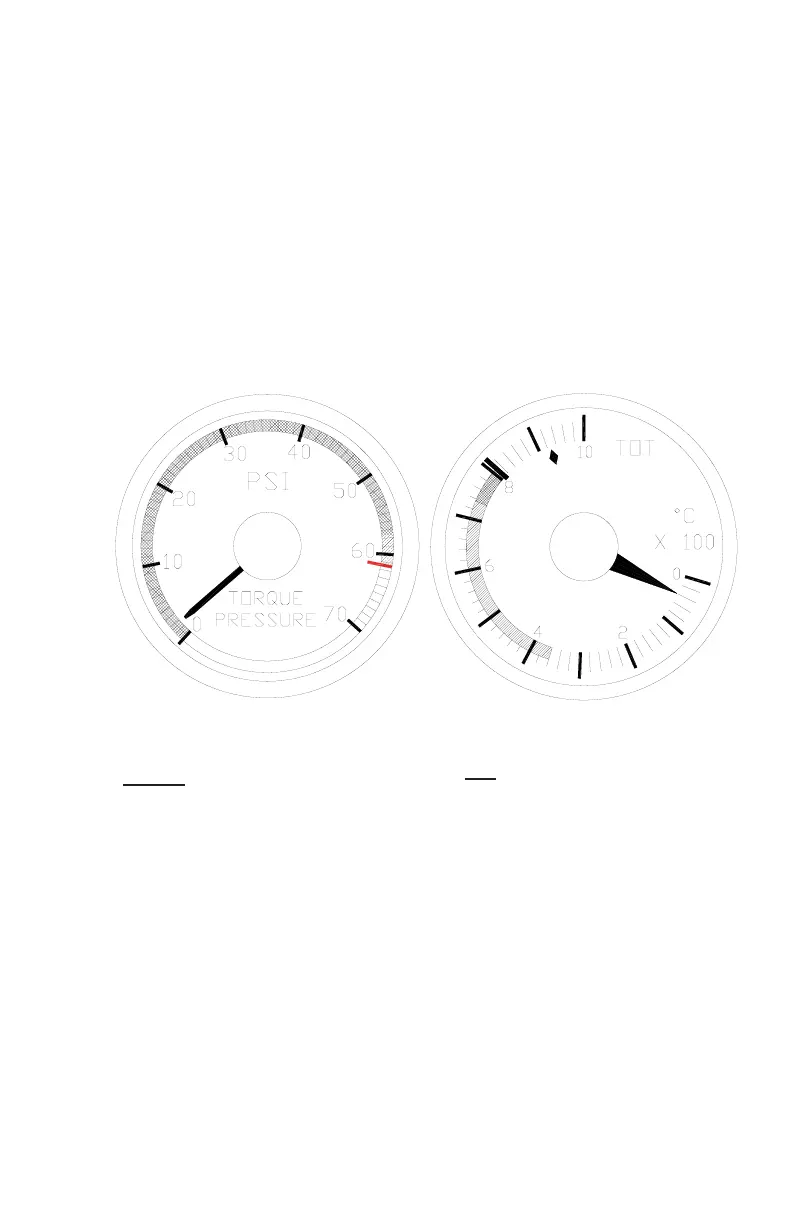

2-12. INSTRUMENT MARKINGS - 250-C20W (Fig. 2-5)
Figure 2-5. Instrument Markings - 250-C20W
Limitations
Schweizer RSG, LLC.
Model 269D Helicopter
Pilot's Flight Manual
2-15
R
eissued: 16 Jan 2019
TORQUEMETER TURBINE OUTLET TEMP
TORQUE:
RED LINE AT 61.7 PSI
YELLOW ARC - 57.8 TO 61.7 PSI (5 MIN LIMIT)
GREEN ARC-0TO57.8 PSI
TOT:
RED LINE AT 810°C
RED DIAMOND AT 927°C (START MAX)
YELLOW ARC - 738°C TO 810°C
GREEN ARC - 360°C TO 738°C
FAA Approved
