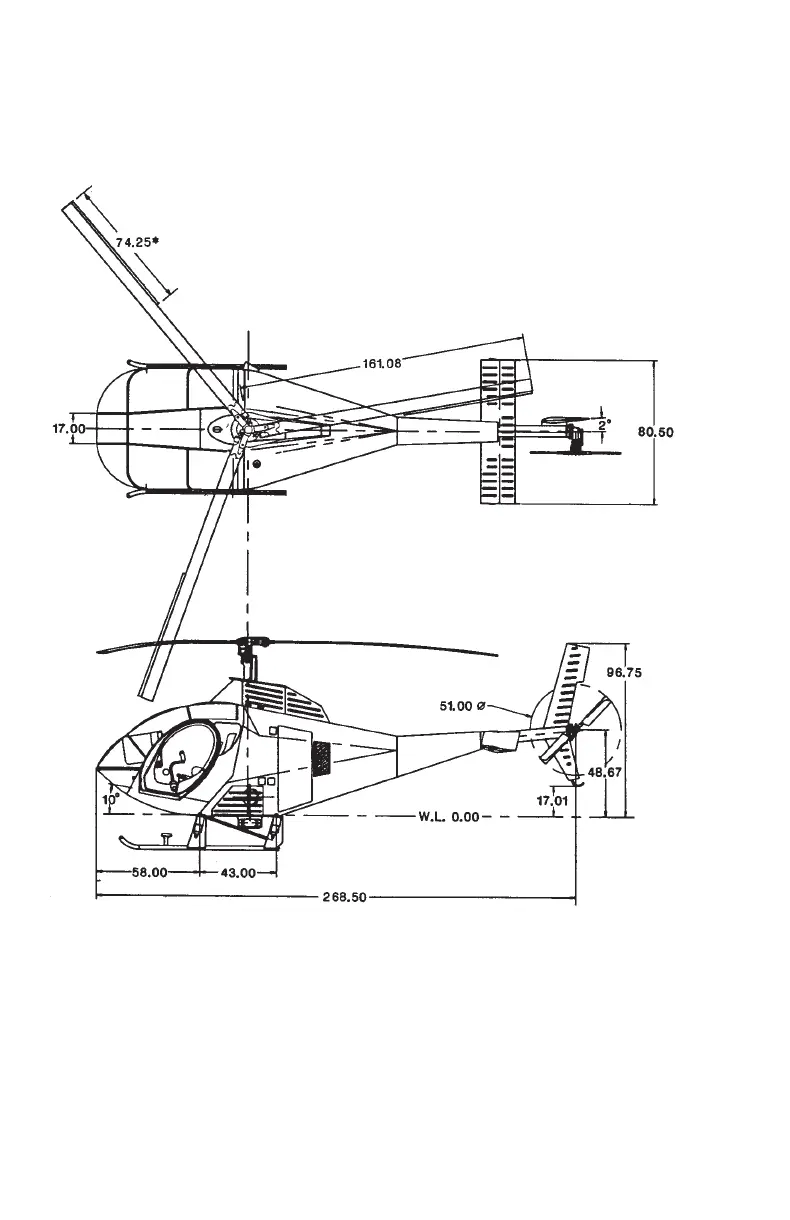

Figure 1-1. Principle Dimensions (Sheet 2 of 2)
General
Pilot's Flight Manual
Schweizer RSG, LLC.
Model 269D Helicopter
1-14
Reissued: 16 Jan 2019
* 269A1185-1 main rotor blade (23.75 trailing edge tab),
269A1185-5 main rotor blade (74.25 trailing edge tab) shown.
